Description

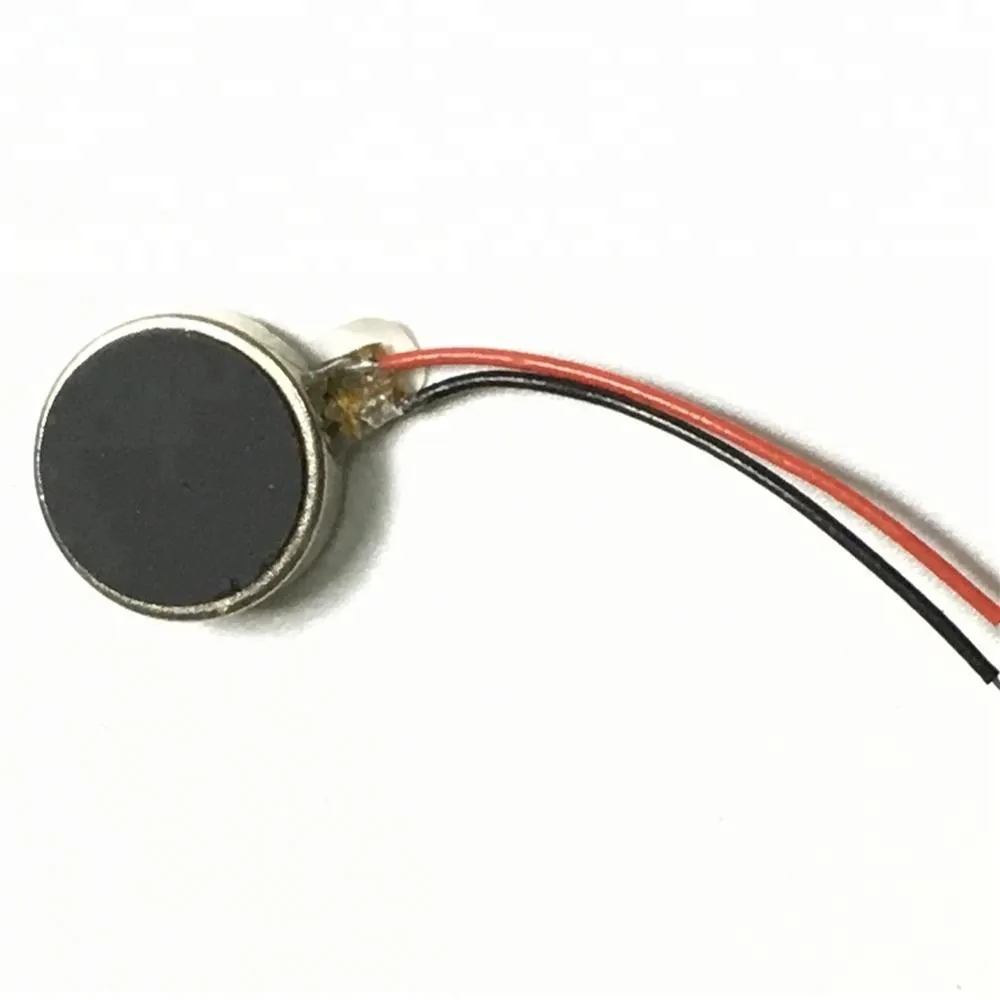

3.0V DC 12000RPM Massage Button Flat 1027 Vibration Motor SMD Mobile Phone Motor Vibrator Micro Vibration Motor
Specification
|
item
|
value
|
|
Rated voltage
|
3.0VDC
|
|
Operating voltage range
|
2.5~4.0VDC
|
|
Direction of rotation
|
any direction
|
|
Use environment
|
-20 ° C ~ +60 ° C
|
|
Storage environment
|
-30 ° C ~ +70 ° C
|
|
Rated speed
|
12000 ± 2500RPM/Min
|
|
Rated current
|
70mA Max
|
|
Starting current
|
90mA Max
|
|
Starting voltage
|
2.3VDC Max
|
|
Insulation resistance
|
10MΩ/Min
|
|
Terminal impedance
|
30Ω±15% (single phase) 60Ω+15% (biphase)
|
Details Images
