Introduction
Power-on, the output=input, press the trigger button, Reverse polarity output, press again, the output=input, the third press, Reverse polarity output, and so on.
Turn off the power and stop output
1 Input Voltage: DC 6-24V
2 Module working current:Forward 2ma;Reverse: 33-39ma;
3 Load voltage: Equal to input voltage
4 Load current: Maximum 2A(Inductive load <=1A)
5 Power Indicator AND Forward & Reverse Indicator
6 Control method : low pulse trigger(NPN)
7 Size: 30mm X 30mm X 16mm(no Terminal), 30mm X 30mm X 16mm( with Terminal)
8 Weight: 10g ( no Terminal) , 13.5g ( with Terminal)

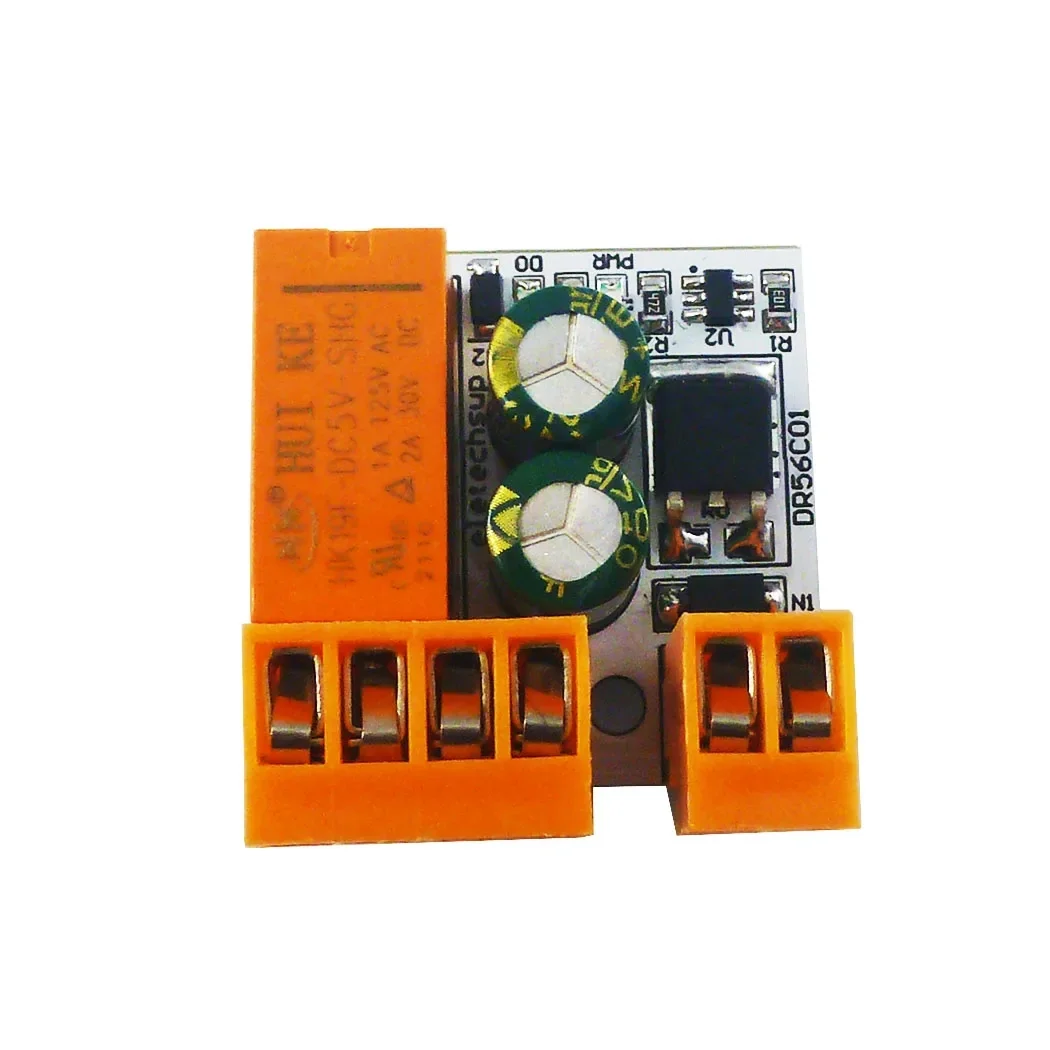

This is a bistable (self-locking) Reverse polarity relay module,Trigger once, Output reverse polarity (and holds);Trigger again,the output=input (and holds)
Pin description:
I+ :Power Input +;
I- :Power Input -;
O+:Power Output +(When reversed is Power Output -);
O- :Power Output -(When reversed is Power Output +);;
G:trigger signal input ground;
T:trigger signal input terminal(0.2-2 second low pulse trigger).
Note:
1 For the module to work stably, be sure to use a power supply with sufficient current.Power supply current is greater than 2 times load current
2 The maximum load current is 2A, if it is a motor, the maximum load current is 1A
3 Can only control forward and reverse(Start and stop by power on and power off control)
