270° TOF Laser Scanner for AGV | Collision Avoidance & Navigation Sensor

Product Overview​

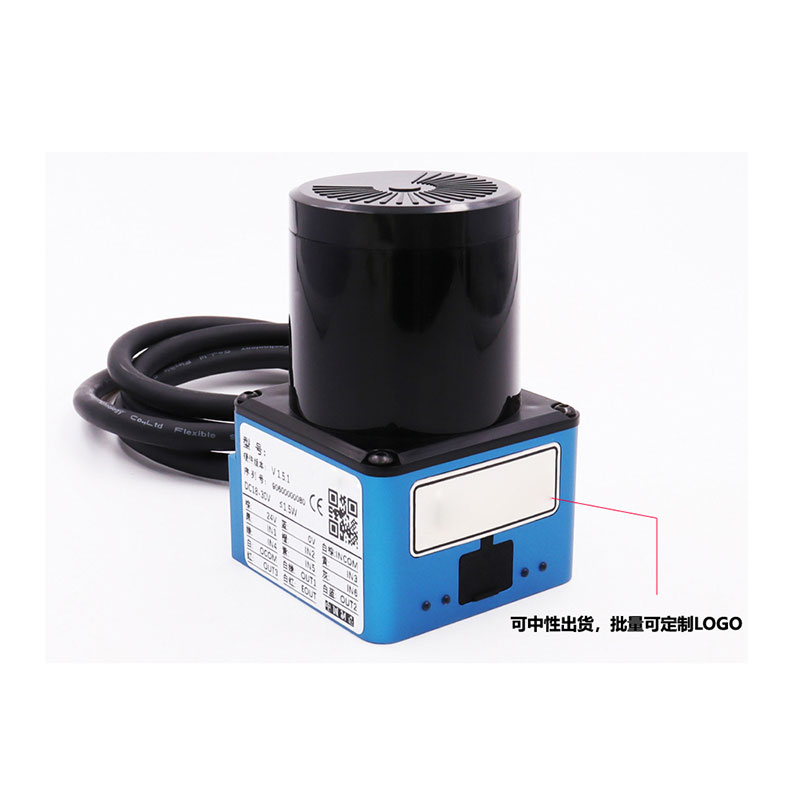

The 270° TOF (Time of Flight) Laser Scanner is a compact, high-performance sensor designed for AGV/AMR navigation, collision avoidance, and industrial safety applications. Leveraging TOF technology, it delivers precise 2D environmental scanning with a 270° horizontal field of view, detecting objects up to 10m (90% reflectivity) or 5m (high-precision mode). With a 20Hz scan rate and 0.1° angular resolution, it provides real-time point-cloud data for contour mapping, path planning, and safety zoning—ensuring reliable performance in dynamic industrial environments.

Key Features​

1. TOF Technology​

   • Accurately measures distance via the time difference between laser emission and reception, enabling stable detection across varying object colors, materials, and lighting conditions.

2. 270° Omnidirectional Scanning​

   • Full 270° horizontal coverage with a maximum range of 10m (90% reflectivity) and 5m (high-precision mode). The 0.1° minimum angular resolution ensures detailed environmental mapping.

3. Multi-Channel Configuration​

   • Supports up to 64 software-configurable channels​ (each with 3 independent detection zones) for customizable safety perimeters, warning areas, and protection zones.

4. Versatile Communication​

   • Interfaces with RS-485, CAN (open/NPN/PNP), Ethernet/IP, Modbus RTU/TCP, and I/O (PNP/NPN) for seamless integration with AGV controllers, PLCs, and industrial networks.

5. Self-Diagnosis System​

   • Built-in hardware analysis detects faults (e.g., rotation errors, overheating, FBS/HBS anomalies) to prevent malfunctions and ensure operational safety.

6. Durable & Compact Design​

   • IP65-rated enclosure resists dust, water, and mechanical stress. A user-friendly configuration software simplifies setup, debugging, and simulation.

Applications​

Ideal for:

• AGV/AMR Safety: Collision avoidance, path following, and obstacle detection.

• Industrial Automation: Perimeter security, robotic guidance, and automated material handling.

• Logistics & Warehousing: Dock/aisle monitoring, inventory management, and traffic control.

Technical Specifications​
