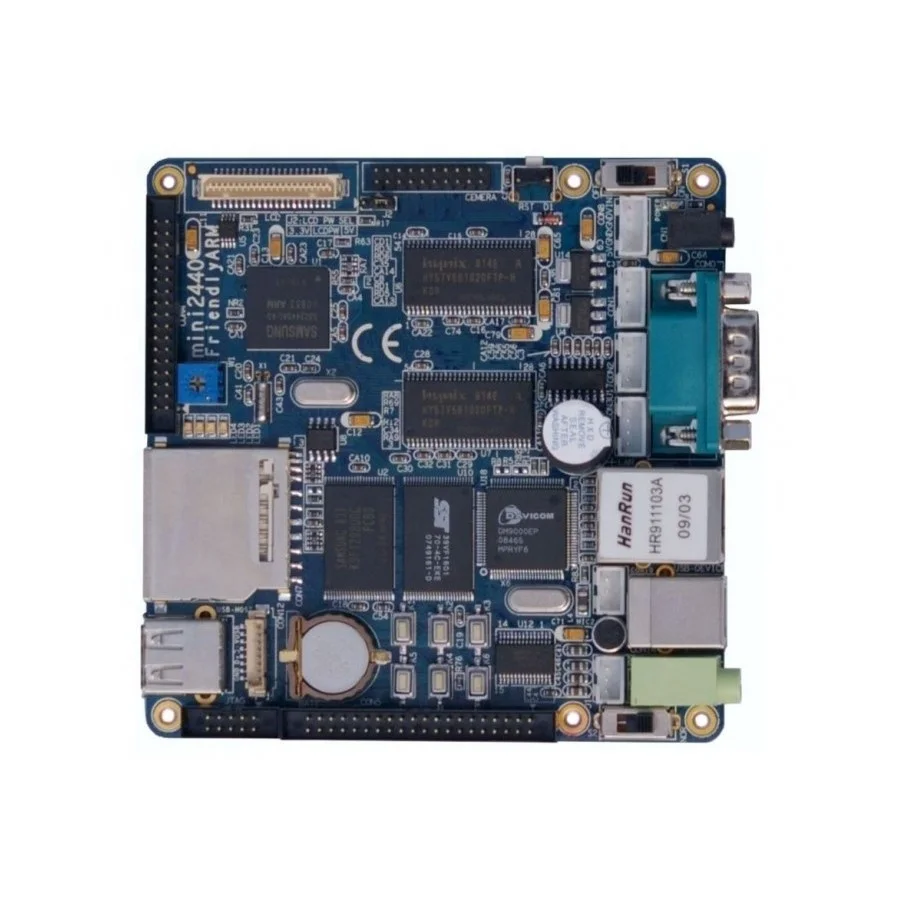

256M Flash Mini2440 Development Board ARM9 Electronic Learning Board S3C2440 Linux Wince6.0 Development Board Kit
Product Description
*Dimension : 100 x 100 mm
* CPU: 400MHz Samsung S3C2440 ARM926T (max freq. 533 MHz)
* RAM: 64 MB, 32 bit Bus
* Flash: 256M NAND Flash
* EEPROM: 256 Byte (I2C)
* Ext. Memory: SD-Card socket
* Serial Ports: 1x DB9 connector (RS232), total: 3x serial port connectors
* USB: 1x USB-A Host 1.1, 1x USB-B Device 1.1
* Audio Output: 3.5 mm stereo jack
* Audio Input: Connector + Condenser microphone
* Ethernet: RJ-45 10/100M (DM9000)
* RTC: Real Time Clock with battery (CR1220)
* Beeper: PWM buzzer
* Camera: 20 pin (2.0 mm) Camera interface
* LCD Interface: 41 pin connector for FriendlyARM Displays and VGA Board
* User Inputs: 6x push buttons and 1x A/D pot
* User Outputs: 4x LEDs
* Expansion: 40 pin System Bus, 34 pin GPIO, 10 pin Buttons (2.0 mm)
* Debug: 10 pin JTAG (2.0 mm)
* Power: regulated 5V (DC-Plug: 1.35mm inner x 3.5mm outer diameter)
* Power Consumption: Mini2440: 0.3 A, Mini2440 + 3.5" LCD: 0.6 A, Mini2440 + 7" LCD: 1 A
* OS Support * Windows CE 5 and 6 * Linux
* CPU: 400MHz Samsung S3C2440 ARM926T (max freq. 533 MHz)
* RAM: 64 MB, 32 bit Bus
* Flash: 256M NAND Flash
* EEPROM: 256 Byte (I2C)
* Ext. Memory: SD-Card socket
* Serial Ports: 1x DB9 connector (RS232), total: 3x serial port connectors
* USB: 1x USB-A Host 1.1, 1x USB-B Device 1.1
* Audio Output: 3.5 mm stereo jack
* Audio Input: Connector + Condenser microphone
* Ethernet: RJ-45 10/100M (DM9000)
* RTC: Real Time Clock with battery (CR1220)
* Beeper: PWM buzzer
* Camera: 20 pin (2.0 mm) Camera interface
* LCD Interface: 41 pin connector for FriendlyARM Displays and VGA Board
* User Inputs: 6x push buttons and 1x A/D pot
* User Outputs: 4x LEDs
* Expansion: 40 pin System Bus, 34 pin GPIO, 10 pin Buttons (2.0 mm)
* Debug: 10 pin JTAG (2.0 mm)
* Power: regulated 5V (DC-Plug: 1.35mm inner x 3.5mm outer diameter)
* Power Consumption: Mini2440: 0.3 A, Mini2440 + 3.5" LCD: 0.6 A, Mini2440 + 7" LCD: 1 A
* OS Support * Windows CE 5 and 6 * Linux
Specification
|
item
|
value
|
|
CPU
|
400MHz Samsung S3C2440 ARM926T (max freq. 533 MHz)
|
|
SDRAM
|
64M
|
|
Flash
|
256M
|
Packing list
Mini2440 (256M Flash) + 3.5"LCD + Standard Accessories
