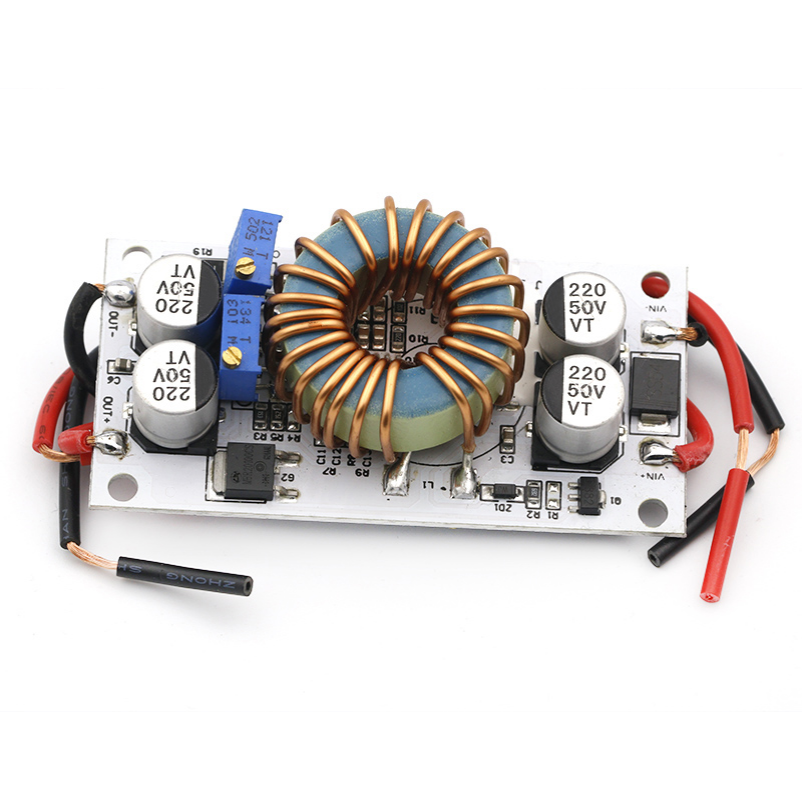

250W 10A 8.5-48V DC-DC Step Up Boost Converter Module Voltage Regulator Power Supply Transformer Booster for Car
Description:
Module: 250W boost constant current module
Module properties: non-isolated step-up module (BOOST)
Input voltage: DC 8.5V-48V
Input current: 10A (MAX) exceeds 8A please enhance heat dissipation
Quiescent current: 10mA (12V liter 20V. the output voltage. the higher the current will increase too quiet)
Output voltage: 10-50V continuously adjustable
Constant] range: 0.2-8A
Temperature: -40 to + 85 degrees (ambient temperature is too high. please enhance heat dissipation)
Operating frequency: 150KHz
Conversion efficiency: up to 96%
Overcurrent protection: There
Input reverse polarity protection: Yes.
Installation: 4 3mm screw holes
Connection method: Connection Output
Module size: Length 70mm width 36mm height 13mm
Single module: 50g
Applications:
1. DIY a power supply. 12V can input and output can 12-50V adjustable.
2. the power supply for your electronic device. according to your system can set the output voltage value.
3. as the car power supply for your laptop. PDA or a variety of digital products supply.
4. DIY a mobile notebook power supply: 12V coupled with high-capacity lithium battery pack. so you can go where light where books.
5. solar panel regulator.
6. to the battery. rechargeable lithium batteries.
7. driving high-power LED lights.
Package Included:
1 x 250W 10A Step Up Power Supply Module
Module: 250W boost constant current module
Module properties: non-isolated step-up module (BOOST)
Input voltage: DC 8.5V-48V
Input current: 10A (MAX) exceeds 8A please enhance heat dissipation
Quiescent current: 10mA (12V liter 20V. the output voltage. the higher the current will increase too quiet)
Output voltage: 10-50V continuously adjustable
Constant] range: 0.2-8A
Temperature: -40 to + 85 degrees (ambient temperature is too high. please enhance heat dissipation)
Operating frequency: 150KHz
Conversion efficiency: up to 96%
Overcurrent protection: There
Input reverse polarity protection: Yes.
Installation: 4 3mm screw holes
Connection method: Connection Output
Module size: Length 70mm width 36mm height 13mm
Single module: 50g
Applications:
1. DIY a power supply. 12V can input and output can 12-50V adjustable.
2. the power supply for your electronic device. according to your system can set the output voltage value.
3. as the car power supply for your laptop. PDA or a variety of digital products supply.
4. DIY a mobile notebook power supply: 12V coupled with high-capacity lithium battery pack. so you can go where light where books.
5. solar panel regulator.
6. to the battery. rechargeable lithium batteries.
7. driving high-power LED lights.
Package Included:
1 x 250W 10A Step Up Power Supply Module
