Description

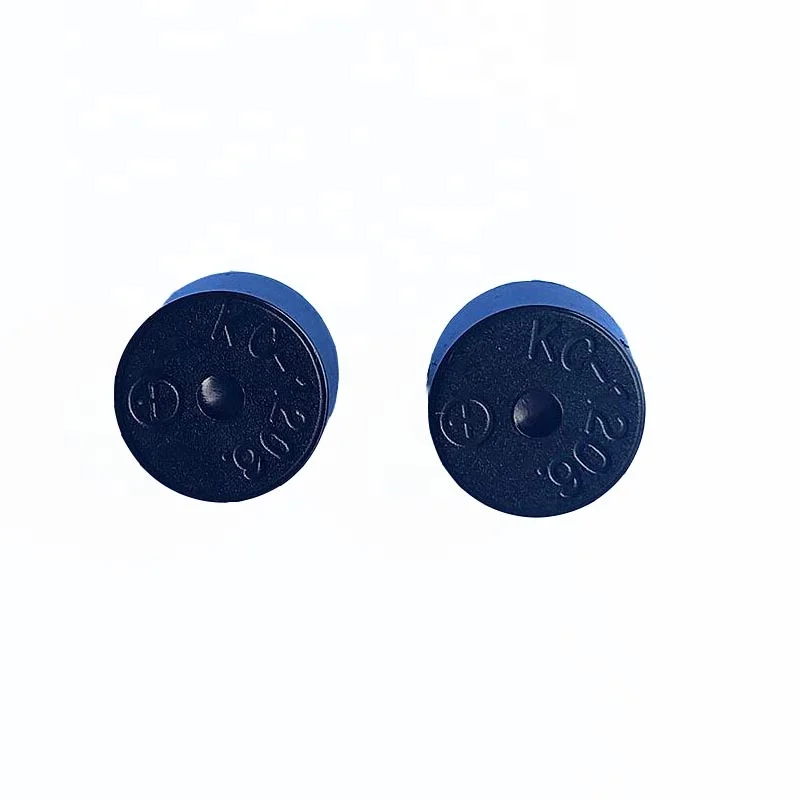

2048Hz KC1206 Electromagnetic Passive Integrated High Decibel Buzzer 12 * 9MM 5V Buzzer
Product Description
Passive integrated 16 ohms 42 ohms 80 ohms 140 ohms can be customized (default 42 ohms 80ohms random delivery) The frequency can be 2000HZ 2400HZ 2700HZ 4000HZ
Specification
|
1
|
Rated Voltage: 5V
|
|
|
2
|
Operating Voltage: 3-7V
|
|
|
3
|
Resonant Frequency: 2048Hz
|
|
|
4
|
Coil Resistance: 45±5Ω
|
|
|
5
|
Sound Output at 10cm: greater than or equal to 90dB
|
|
|
6
|
Current Consumption: less than or equal to 50mA
|
|
|
7
|
Operating Temperature: -20~+70℃
|
|
|
8
|
Storage Temperature: -30~+80℃
|
|
|
9
|
Weight: 2g
|
|
|
10
|
Case material and colour ：PPO/Black
|
|
|
Applying rated voltage (Resonant frequency, 1/2duty, Square wave
|
Other
|
|
Details Images
