Description
Product Overview

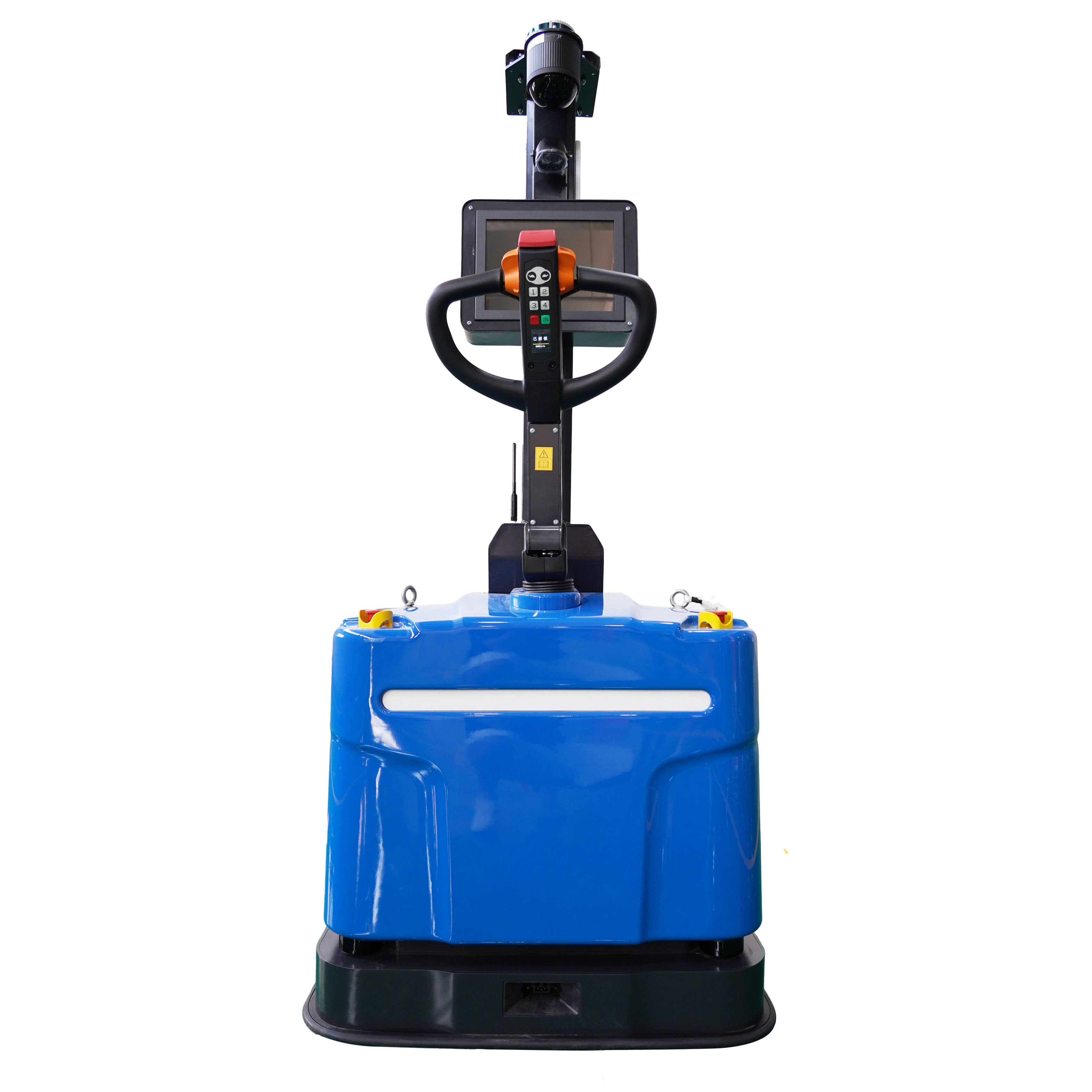

RFID Automatic Guide Vehicle
The MDSL14-B is a narrow aisle stacker AGV with multi-line LiDAR 3D SLAM natural navigation technology. Based on retaining the main structure of the original vehicle, it has under- gone an intelligent automatic electrical transformation, and the main technical indicators are the same as the original vehicle. Its ultra-narrow body makes it mobile and flexible, allowing it to operate freely in narrow and small aisles. It is widely used in the logistics and warehousing industries.
Product Paramenters
|
Item
|
Data
|
|
Weight (kg)
|
375
|
|
Dimension (mm)
|
1590*850*1950
|
|
Load capacity (kg)
|
1500
|
|
Turning Radius（mm）
|
1335
|
|
Driving Motor(kw)
|
1.0
|
|
Lifting Motor(kw)
|
0.8
|
|
Maximum Travel Speed (Loaded/Empty) mm/s
|
1100 /1250
|
|
Lifting speed: full/unloaded (mm/s)
|
35/45
|
|
Descent speed full/no load (mm/s)
|
48/36
|
|
Left-Right Deviation（mm）
|
±20
|
|
Forward（mm）
|
±10
|
|
Maximum Climbable Gradient
|
Loaded 6% / Unloaded 8%
|
|
Navigation System
|
3D SLAM
|
|
Navigation Mode
|
Natural Navigation
|
|
Communication Mode
|
WLAN/Suppoks 5G
|
|
Communication Frequency
|
Wi-Fi 2.4/5.8 GHz
|
|
Brake Mode
|
Electromagnetic Brake
|
|
Moving Function
|
Forward/Backward/Turn
|
|
Operating Environment
|
Indoor
|
Product Advantages
*3D Obstacle Avoidance LiDAR
*Anti-Collision Strip for Sensor of Body *Three-Color Light (Sound and Light Warning Light)
*Emergency Stop Button (on Both Sides)
*Flexible and convenient deployment *Wide application of scenes
*Accurate and stable positioning
*Stable and efficient operation
*Multiple safety protection
