Solution selection: Two communication methods, NB-IoT or LoraWAN, can be selected
Description
Details Images
Products Description
An Introduction

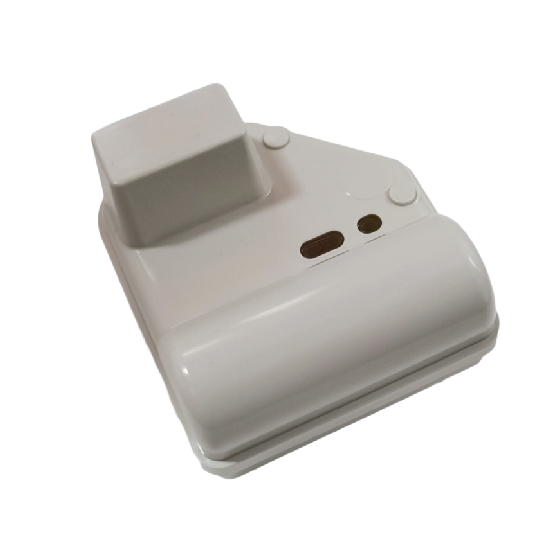

The HAC-WR-S electronic backpack is a low-power product that integrates measurement collection and communication transmission. It is compatible with all wet multi-flow meters with standard bayonets and induction coils from Sensus . Abnormal conditions such as backflow, water leakage, and battery undervoltage can be monitored and reported to the management platform. The system cost is low, the network maintenance is convenient, the reliability is high, and the scalability is strong.
Parameter Function
|
LoraWAN
|
NB-IoT
|
||||||
|
Working frequency
|
Compatible with LoRaWAN® (support EU433/CN470/EU868/US915/AS923/AU915/IN865/KR920, the specific frequency band needs to be confirmed with sales before ordering the product)
|
Support B1/B3/B5/B8/B20/B28 and other frequency points
|
|||||
|
Maximum transmit power
|
Conforms to the constraints of the LoRaWAN protocol
|
23dBm±2dB
|
|||||
|
Operating temperature
|
-20℃～+55℃
|
||||||
|
Operating Voltage
|
+3.2V～+3.8V
|
+3.1V～+4.0V
|
|||||
|
Transmission distance
|
＞10km
|
Infrared communication distance 0-8cm (avoid direct sunlight)
|
|||||
|
Battery Life
|
>8 years (with one ER18505 battery)
|
>8 years (using one ER26500+SPC1520 battery pack)
|
|||||
|
waterproof level
|
IP68
|
||||||
|
Features
|
||
|
Data reporting
|
Touch to report data；Actively report data regularly
|
|
|
measurement
|
Support non-magnetic metering method.
|
|
|
power down storage
|
Support power-off storage, no need to re-initialize the parameters after power-off (but after power-off, you need to run 10 pulses to turn on the function when disassembling the alarm function).
|
|
|
Disassembly alarm
|
The anti-disassembly alarm function will be turned on after the forward rotation measurement is greater than 10 pulses. When the device is disassembled, the disassembly mark and the historical disassembly mark will display the fault at the same time. the sign
|
|
|
Monthly and yearly frozen data storage
|
After the device time calibration, it supports the storage of the latest 128 months of monthly frozen data and 10 years of annual frozen data. The stored frozen data can be queried through the cloud platform.
|
|
|
parameter settings
|
Support wireless near-end and far-end parameter setting
|
|
|
program upgrade
|
Supports infrared upgrade of device applications
|
|
