1. Provides variable speed capability for DC motor, also provides limit function.
2. Achieves start, stop, speed up and down, positive and reverse rotation RC controlled.
3. DC Motor Speed Controller can achieve simple automatic functions.

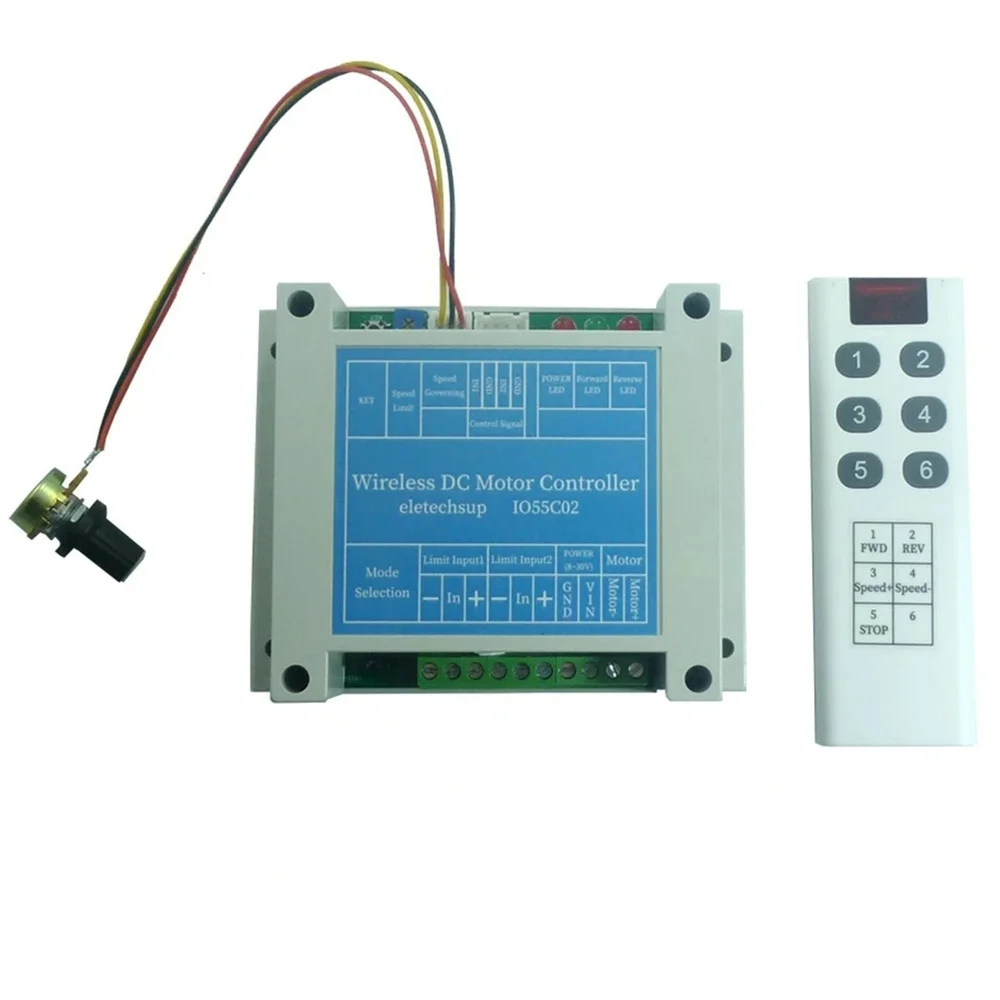

4. It can remote control the speed up and down, positive and reversing rotation and stop of the brushed DC motor.
5. It owns powerful function, stable performance and beautiful appearance.
•Applicable voltage: DC 12V~30V (DC power supply power ≥ motor power x1.3)
•Wireless receiving sensitivity: -108dBm
•Decoding type: fixed code, can be adapted to up to 32 remote controls
•Working modes: click to move, self-locking
•Size(including shell): 115*90*40mm
•Weight (including speed control knob): 194.1g
•Applicable motor: brushed DC motor, rated power of 24V DC motor <100W, limit value 200W, rated power of 12V DC motor <50W, limit value 100W

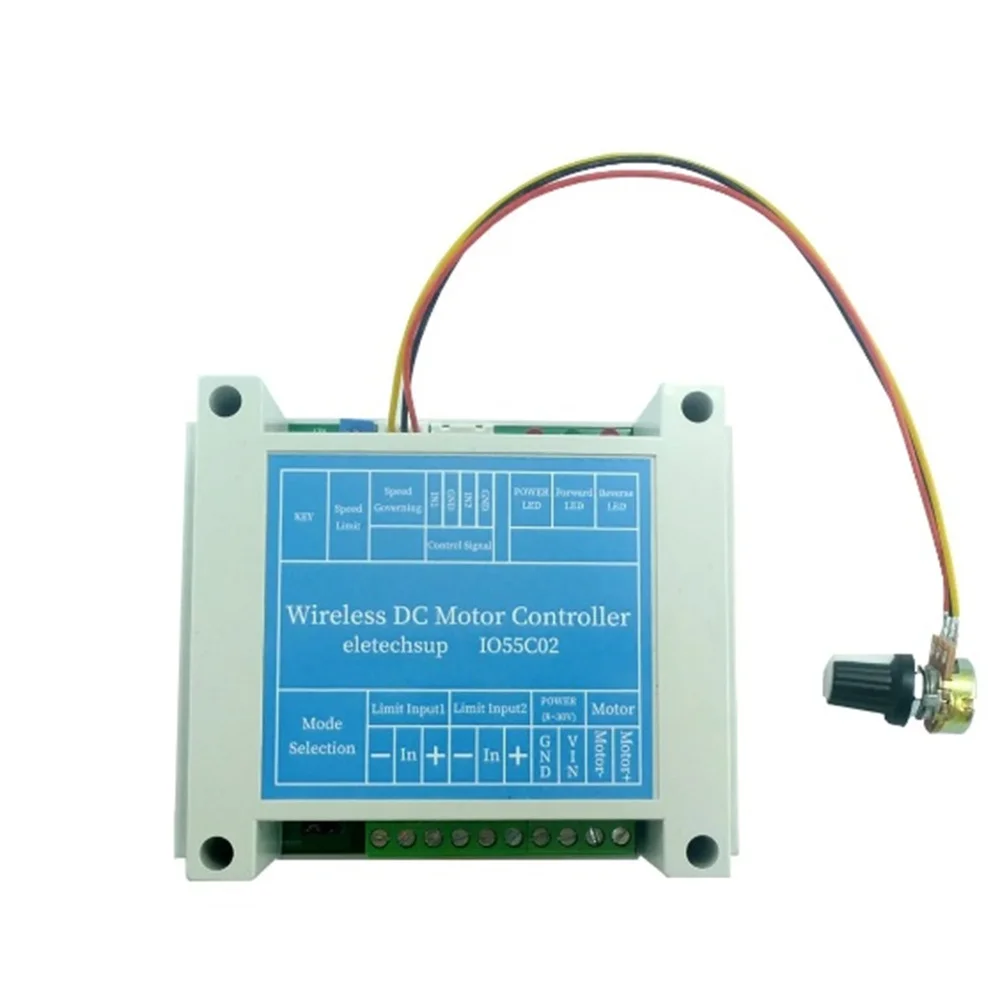

•Speed regulation function: After the governor is powered on, both the knob and the remote control can control the speed. If the adjustment knob exceeds 5% of the range, the knob speed regulation mode is preferred, and the remote control speed regulation mode is preferred to use the remote control speed regulation
•Remote model : TB453(fixed code)
•Power supply : 12V 23A battery replacable (This remote doesnot have a battery , Please buy in your local market )
•Operating current: ≤ 9mA
•Oscillation mode: SAW resonator
•Modulation mode:ASK
•Operating frequency:433.92MHZ
•Frequency deviation:± 150Hz (max)
•Encoding format: Fixed Code ( EV1527)
•Transmit power: 10 mW
•Weight : 36.9g
