Description
Product Description

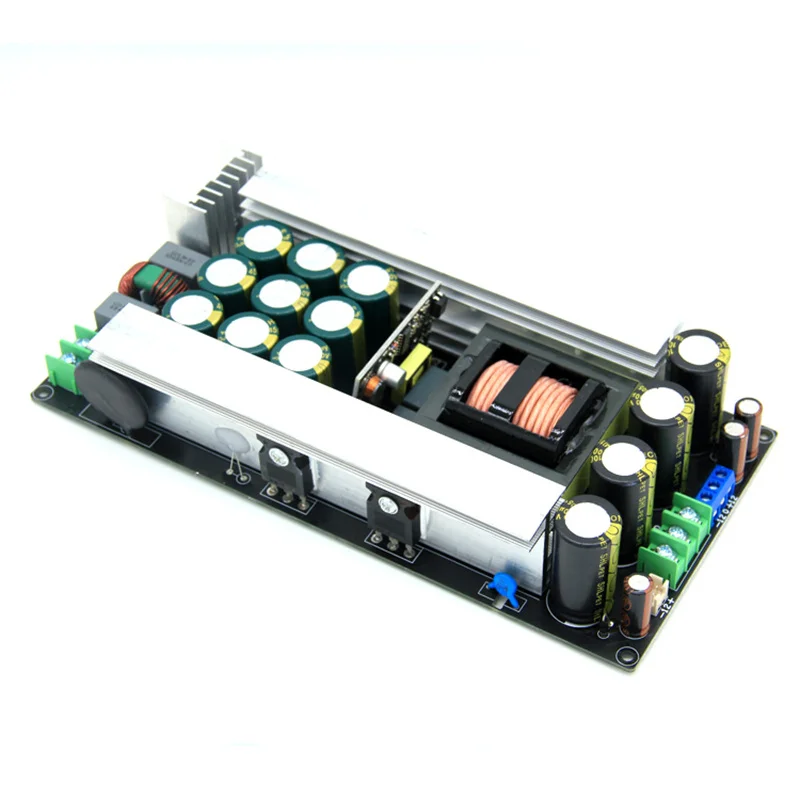

2000W LLC Soft Switching Power Supply High Quality HIFI Amplifier PSU Board Voltage 50/60/70/90/100/110/120V AC200-240V
Introdction
Input voltage: AC200-240V
Output: main ±80V(11A); Auxiliary ±20V(500mA); Independent 20V(500mA)(different main voltage auxiliary and independent is different, the purchase title is stated)
Special reminder: Since the switching power supply only regulates the main voltage, the current of the independent and auxiliary output must be less than the current of the main voltage output; For example, the current of the main voltage is 10mA, and the auxiliary and independent can not carry more than 10MA
Voltage stability accuracy: main no-load ±3%, with load ±10%; Auxiliary, independent ±1% (AC220V input)
Rated continuous power: 1000W (25℃ ambient temperature and fan)
Instantaneous power: 2000W (25℃ ambient temperature and fan can work for about 30 seconds)
