-200-1350 Celsius RS485 K-type Thermocouple-to-Digital Cold-Junction Compensated Converter Temperature Detector Sensor Tester

-200-1350 Celsius RS485 K-type Thermocouple-to-Digital Cold-Junction Compensated Converter Temperature Detector Sensor Tester

$8.64
Specification : N4KTA01_A Board 0-1024C
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.

Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China

Support Department

Email: support@rfid-life.com

Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed
Description
Product Description

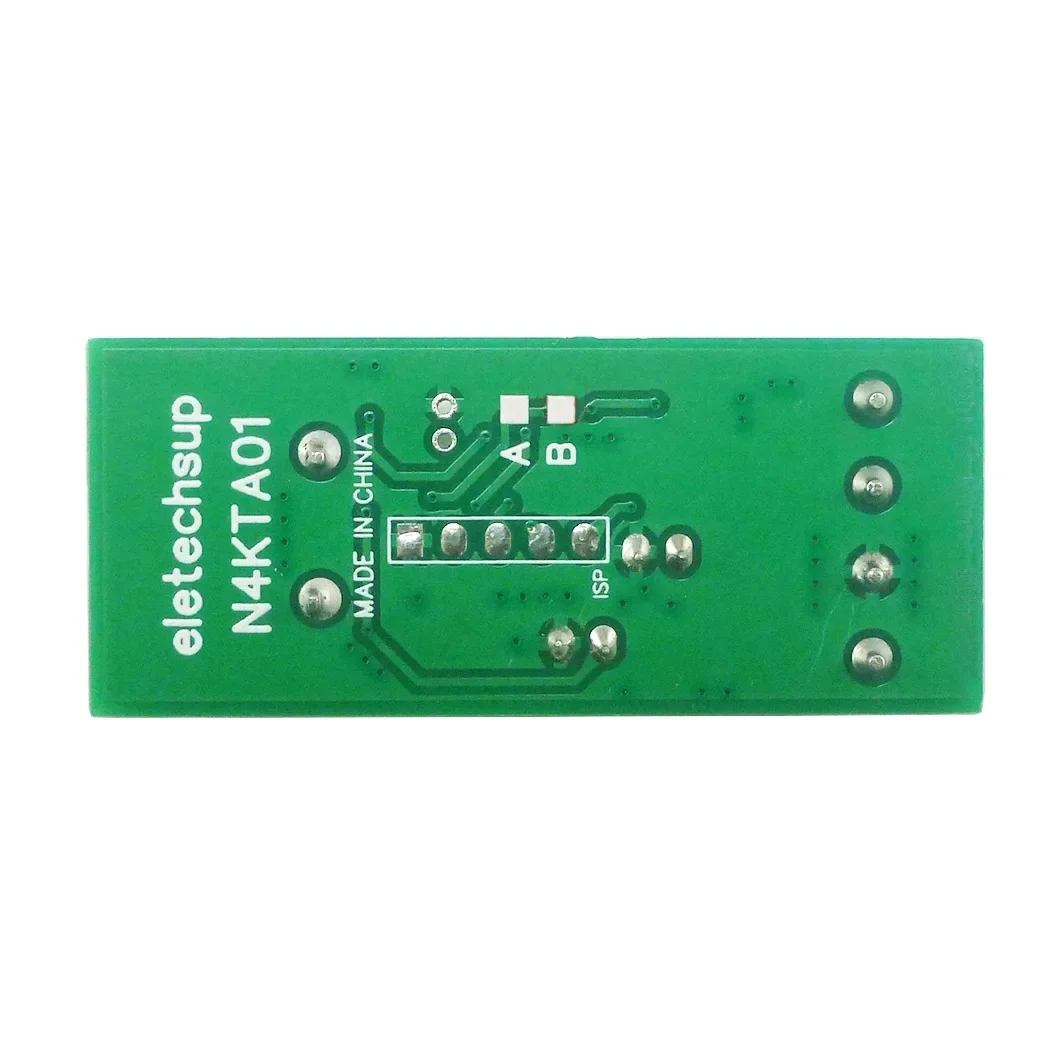

N4KTA01 is the RS485 K-type thermocouple collector developed and produced for the first time by eletechsup. Through this module, the temperature value of the K thermocouple can be converted into a digital quantity and transmitted through RS485. If the accuracy requirements are not high, you can use version A. If the accuracy requirements are high, it is recommended to use version B.


Function:
A version module:
Power supply : DC 5-24V (Recommended 5V 9V 12V)
Working current: 5-7MA
Temperature measurement chip: MAX6675ISA+
Temperature measurement range: 0-1024℃
Resolution: 12 bits, 0.25°C resolution
Accuracy: The thermocouple has an accuracy of ±4℃( 0℃ to +700℃),Accuracy is poor.
MODBUS RTU protocol, 03/04 read command, 06/16 write command.
RS485 bus interface, Default baud rate 9600BPS
Compatible sensor: K-type thermocouple
Dimensions: 52 X 22 X 15MM
Weight: 11grams

B version module:
Power supply voltage: DC 5-24V (recommended 5V 9V 12V)
Working current: 5-7MA
Temperature measurement chip: MAX31855KASA+
Temperature measurement range: -200℃ to +1350℃
Resolution: 14 bits, 0.25°C resolution
Accuracy: The thermocouple has an accuracy of ±2℃( -200℃to +700℃),Accuracy is relatively good.
MODBUS RTU protocol, 03/04 read command, 06/16 write command.
RS485 bus interface, default baud rate 9600BPS
Compatible sensor: K-type thermocouple
Dimensions: 52 X 22 X 15MM
Weight: 11 grams
