Description
Product Description

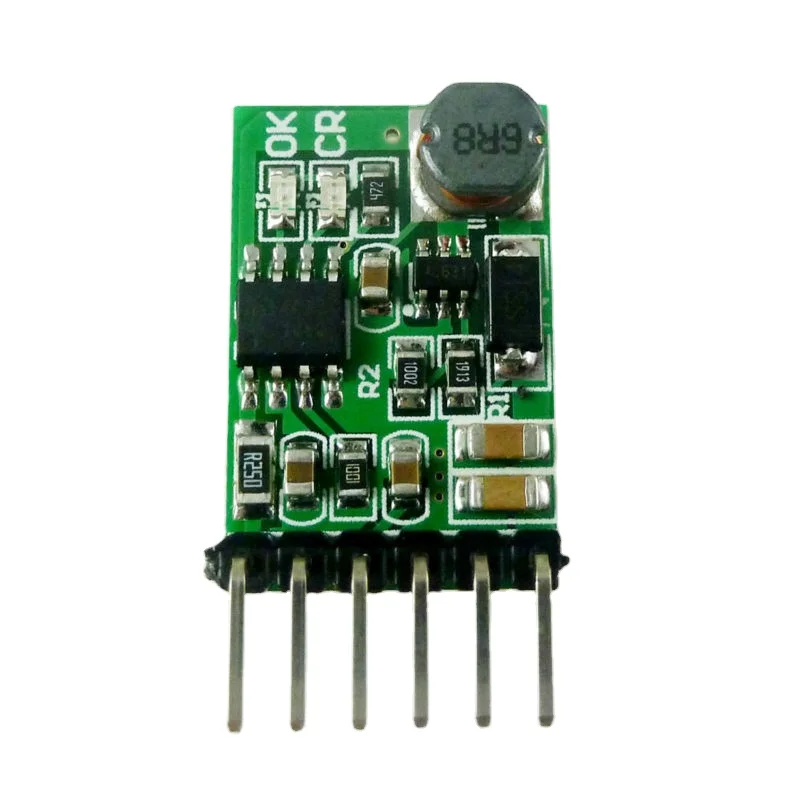

2 in1 4.2V Charger & 5V 6V 9V 12V Discharger Board DC DC Converter Step-up Module 18650
Description:
2 in 1 charge and Discharger(boost) modules
Charge voltage : DC 4.5V-8V(Recommend DC 5V) Charging current : 0-1A Full charge voltage : 4.2V+-2%. Led indicator : ''OK'' LED is fully charged OR battery failure status indicator; ''CR'' LED is charge status indicator
(Boost in)Discharge current : 0-2A; (Boost in)Discharge quiescent current : 450uA (Boost in)Discharge conversion efficiency : 78%-90%
(Boost out)Output current : 0-1.2A(5V),0-1A(6V),0-0.66A(9V),0-0.5A(12V);
Operating ambient temperature : -40° to +85° Storage temperature : -65° to +125° Does not include pin size : 23 x 15.4 x 5.7mm Weight : 2.2g(with Pin),1.8g(no Pin)
Note : This module without lithium battery over-discharge protection,
Applications:
Battery powered equipment Lithium Battery 18650 14500 Mobile phone diy UPS power supply equipment diy Solar charging MP3/MP4 player Video equipment Portable Devices BT Applications
