Description
Product Description

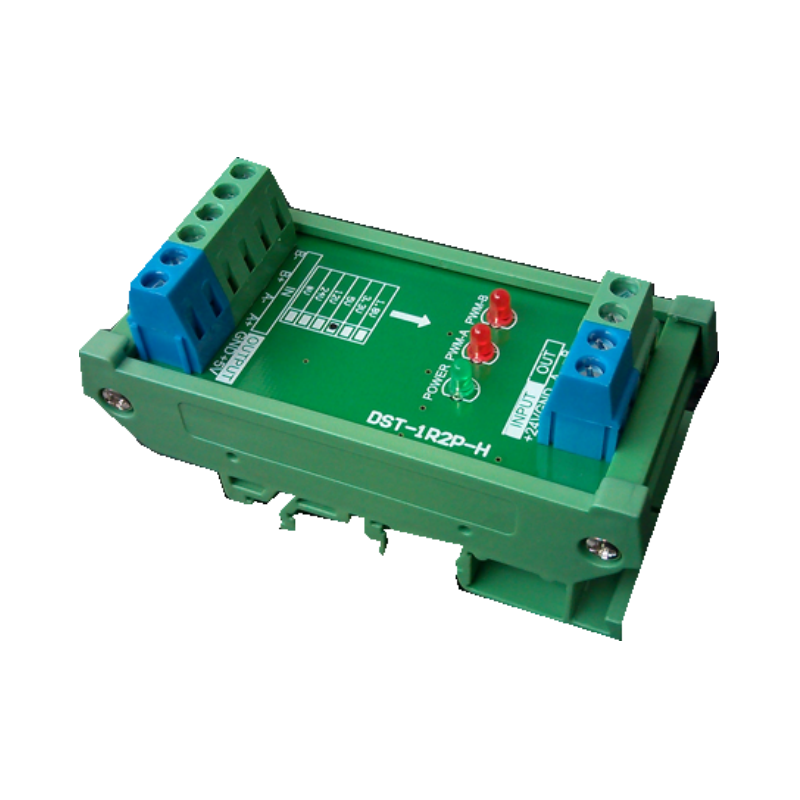

2 channel differential signal conversion single-ended collector, grating ruler servo encoder signal to PLC
1, the differential signal into the collector signal output, 2 channels, electrical isolation between input and output.
2, limit operating frequency 2MHZ. Servo encoder, grating ruler, rotary encoder and other differential output of the encoder signal -->PLC high-speed counting interface counting.
3, output mode: push-pull output mode, support NPN or PNP input PLC interface.
4, the module built-in voltage conversion module, can output 5V, 1A(maximum), for the grating ruler module power supply (fully compatible).
5, installation method: DIN35mm rail installation, convenient and fast!
6, module dimensions: 85*41*28mm(length * width * height).
2, limit operating frequency 2MHZ. Servo encoder, grating ruler, rotary encoder and other differential output of the encoder signal -->PLC high-speed counting interface counting.
3, output mode: push-pull output mode, support NPN or PNP input PLC interface.
4, the module built-in voltage conversion module, can output 5V, 1A(maximum), for the grating ruler module power supply (fully compatible).
5, installation method: DIN35mm rail installation, convenient and fast!
6, module dimensions: 85*41*28mm(length * width * height).
Note: This module (servo model) provides 5V, 100mA (Max) output. Please note whether the differential signal generator requires a 5V supply. Otherwise suspended, do not connect (such as servo drive). When the differential signal generation equipment uses a lot of power (such as rotary encoders, high-power grating ruler), please use a fully compatible model (5V, 1A (Max) output).
1, module output connection 1 (differential signal -> this module ->PNP input) :
2, module output connection 2 (differential signal -> this module ->NPN input) :
