Description

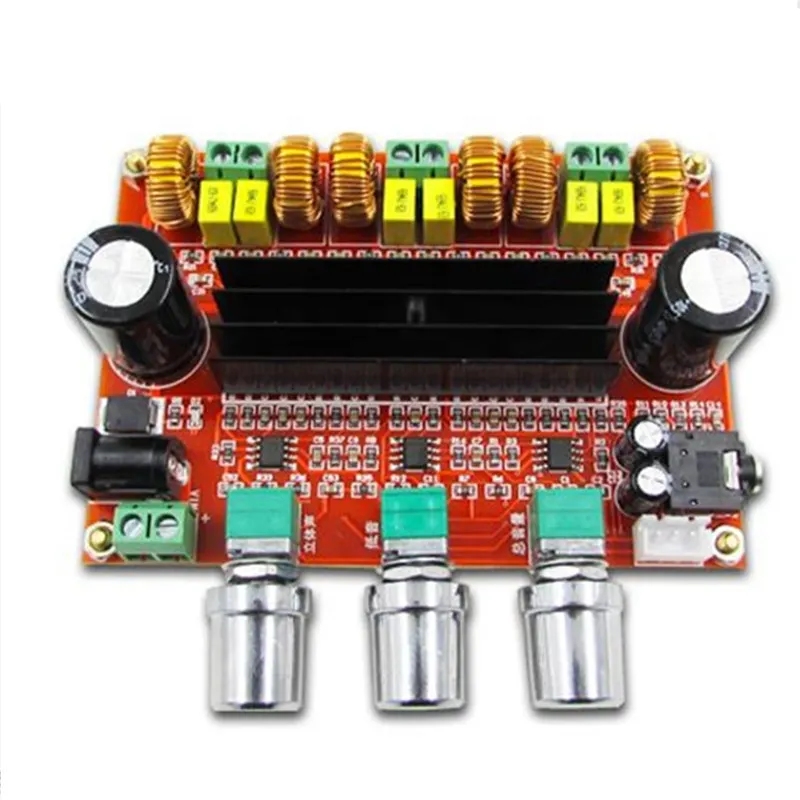

2*50W+100W 2.1 Channel Digital Power Amplifier Board DC12V-24V TPA3116d2 Subwoofer Digital Power Amplifier
Product Description
Only when the audio input is sufficient and the power supply voltage/current is sufficient, will there be sufficient output power. The higher the power supply voltage, the higher the relative power, and speakers with different impedances will have different output powers. In the case of sufficient voltage and current, the larger the horn's ohms, the smaller the relative sound power, please pay attention! Voltage: 12V ------- 8 ohm speaker/12W (left channel) + 12W (right channel) 4 ohm speaker/20 (left channel) + 20W (left channel), 15V ------- 8 ohms/18 + 18W, 4 ohms/more than 30 + 30W, 19V ------- 8 ohms/32 + 32W, 4 ohms/more than 45 + 45W, 24V ------- 8 ohms/38 + 38W, 4 ohms/more than 55 + 55W,
Product Paramenters
Product Name
2.1 channel audio amplifier board
Specification model
XH-M139
Supply voltage
DC24V recommended (range 12-26V)
Output power
80W × 2 100W × 1 (subwoofer)
Output load
4-8Ohm
Frequency response range
4-100KHz
Signal to noise ratio
100 decibels
Number of channels
3 (left + right + subwoofer)
Switching frequency
1.2MHz
Product net weight
136g
Appearance size
100×70×30mm
Feature
Dual component configuration Strong dual core Dual preamplifier Array component configuration is perfect The power amplifier board uses two original imported TPA311602 digital power amplifier chips, one of which is power amplification of the left and right channels, and the other is connected with the NE5532 front bridge to drive the subwoofer, which has the characteristics of small size, high efficiency, high power, etc.
