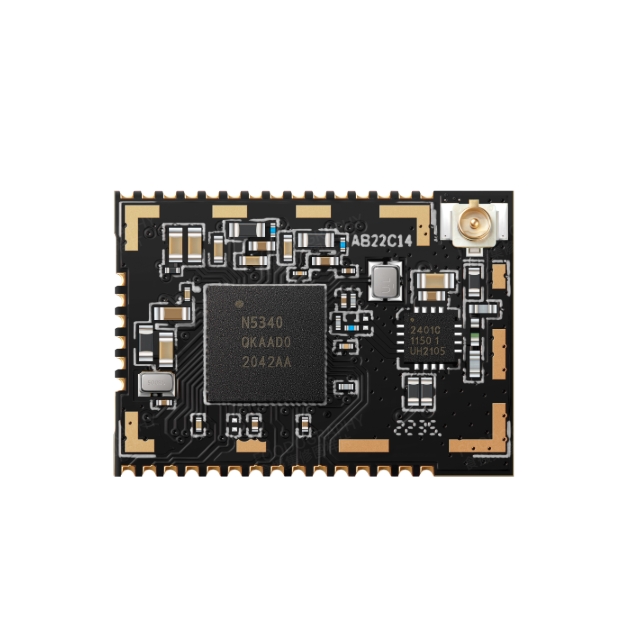

The ultra-low power Bluetooth 5 ready multiprotocol System on Module based on the nRF5340 from Nordic Semiconductor, d
esigned for longer distance communication, built-in maximum +20dBm RF output. The module with an ARM® Cortex™ M33F Dual-core processor, support LE audio,Direct Finding AOA/AOD, embedded 2.4GHz transceiver, provide a complete solution with no additional RF design, Bluetooth 5, ANT/ANT+, Zigee,Thread,Matter,802.15.4 and 2.4GHz proprietary multi-protocol support.
Description
Product Feature
1
|
Nordic nRF5340 with ARM Cortex M33F Dual-core processor
|
|
2
|
Multiprotocol support :
Bluetooth 5, Bluetooth Mesh , ANT/ANT+, 2.4GHz proprietary, 802.15.4, Thread and Zigbee |
|
3
|
Bluetooth 5.1: 2/1Mbps, 500 kbps, 125 kbps
|
|
4
|
IEEE 802.15.4-2006: 250 kbps
|
|
5
|
Proprietary 2.4 GHz: 2 Mbps, 1 Mbps
|
|
6
|
Bluetooth 5.1 Direction Finding AOA/AOD
|
|
7
|
Integrated DC-DC converter
|
|
8
|
Serial Wire Debug (SWD)
|
|
9
|
Nordic SoftDevice Ready
|
|
10
|
Over-the-Air (OTA) firmware update
|
|
11
|
46 General purpose I/O pins(reserve 2 I/O for RF front-end control)
|
|
12
|
15 level low-power comparator with wake-up from System OFF mode
|
|
13
|
IPX antenna interface
|
|
14
|
Size:24.3x17.5x2.5mm
|
|
15
|
No external components required
|
|
16
|
Operation voltage: 2.7V to 3.6V
|
|
Application Processer
|
||
1
|
Flash/RAM: 1024KB/512KB.
|
|
2
|
Arm TrustZone CryptoCell-312 security subsystem
|
|
3
|
QSPI 32 MHz interface
|
|
4
|
High-speed 32 MHz SPI
|
|
5
|
NFC-A tag interface for OOB pairing
|
|
6
|
3 SPI Master/ SPI Slave
|
|
7
|
Two 2-wire Master/Slave (I2C compatible)
|
|
8
|
2 UART (with CTS/RTS and DMA)
|
|
9
|
I2S audio interface
|
|
10
|
3x 4-channel PWM unit with EasyDMA
|
|
11
|
12 bit/200KSPS ADC
|
|
12
|
3 x 32 bits timers
|
|
13
|
2 x 24 bits Real Time Counters (RTC)
|
|
14
|
Distributed Programmable Peripheral Interconnect (DPPI)
|
|
15
|
Quadrature Demodulator (QDEC)
|
|
Network Processer
|
||
1
|
Flash/RAM: 256KB/64KB
|
|
2
|
128-bit AES HW encryption
|
|
3
|
TX power: +3dBm to-20dBm
|
|
4
|
1 SPI Master/ SPI Slave
|
|
5
|
2-wire Master/Slave (I2C compatible)
|
|
6
|
1 UART (with CTS/RTS and DMA)
|
|
7
|
3 x 32 bits timers,
|
|
8
|
2 x Real Time Counters (RTC)
|
|
9
|
USB 2.0 full speed (12 Mbps) controller
|
Typical Applications
1
|
2.4 GHz Bluetooth low energy systems
|
2
|
Proprietary 2.4 GHz systems
|
3
|
Sports and leisure equipment
|
4
|
Mobile phone accessories, Connected Appliances
|
5
|
Health Care and Medica
|
6
|
Consumer Electronics, Game pads
|
7
|
Human Interface Devices, Remote control
|
8
|
Building environment control / monitoring
|
9
|
RFID, Security Applications,Low-Power Sensor
|
10
|
Bluetooth Low Energy GateWay
|
11
|
iBeacons™, Eddystone™, Indoor navigation
|
12
|
Lighting Products
|
13
|
Fitness devices, Wearables
|
