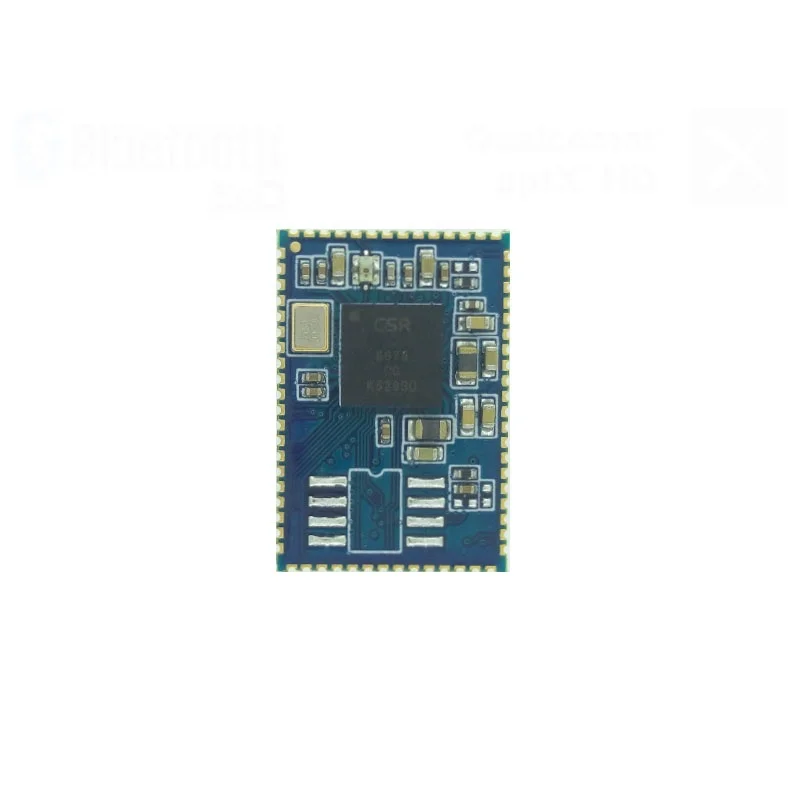

BTM875-B Ble audio module, using CSR8675 chip, built-in 16M FLASH.
Ble 5.0 modules SJR-BTM875-B which is a high performance, cost effective, low power and compact solution. The Ble module provides a complete 2.4GHz Ble system based on the CSR8675 BGA chipset which is a single chip radio and baseband IC for Ble 2.4GHz systems,. This module is fully qualified single-chip dual mode Ble @v5.0 system
Feature
Ble Profiles
Ble v5.0 specification support
Ble Low Energy secure connection
A2DP v1.3.1
AVRCP v1.6
AVRCP v1.6
HFP v1.7
HSP v1.2
MAP v1.1
PBAP v1.1.1
DID v1.1
QTIL's proximity pairing and QTIL's proximity connection
Music Enhancements
Music Enhancements
aptX, aptX Low Latency, SBC, and AAC audio codecs
TrueWireless™ Stereo (TWS), which allows two devices to be configured as a stereo pair
Configurable Signal Detection to trigger events
1 bank of up to 10-stage Speaker Parametric EQ
6 banks of up to 5-stage User Parametric EQ for music enhancement
meloD™ Expansion audio processing:3D stereo widening
Compander to compress or expand the dynamic range of the audio
Post Mastering to improve DAC fidelity
Dual I²S outputs with crossover
Dual I²S outputs with crossover
Additional Functionality
Support for multi-language programmable audio prompts
Multipoint support for A2DP connection to 2 A2DP sources for music playback
Talk-time extension, which automatically reduces processor functions to extend use when a low battery condition is detected
Slim module with 15mm x 22mm x 2.5mm
Applications
Stereo Headsets
Wired Stereo headsets and headphones
Portable Ble Stereo speakers
Product Paramenters
|
Model Name
|
SJR-BTM870-B
|
|
|
Product Description
|
Ble 5.0 Class2 Module
|
|
|
Ble Standard
|
Ble 5.0
|
|
|
Chipset
|
CSR8670
|
|
|
BGA Dimension
|
15mm×22mm×2.0mm
|
|
|
Operating Conditions
|
||
|
Voltage
|
2.8~4.2V
|
|
|
Temperature
|
-10~+70℃
|
|
|
Storage Temperature
|
-40~+85℃
|
|
|
Electrical Specifications
|
||
|
Frequency Range
|
2402~2480MHz
|
|
|
Maximum RF Transmit Power
|
9dBm
|
|
|
π/4 DQPSKReceive Sensitivity
|
-91dBm
|
|
|
8DPSK Receive Sensitivity
|
-81dBm
|
|
Installation Instructions
Default Program Description:
1.MFB rising edge of the boot, the falling edge of the shutdown (MFB power up after the pull can be done on the boot)
2. boot automatically into the back, even failure to automatically enter the pairing mode
3. Audio output mode has 3 options: analog output, I2S digital output, SPDIF fiber digital output
4. Support aptx, aptx-ll, aptx-hd, better sound quality!
2. boot automatically into the back, even failure to automatically enter the pairing mode
3. Audio output mode has 3 options: analog output, I2S digital output, SPDIF fiber digital output
4. Support aptx, aptx-ll, aptx-hd, better sound quality!
Note
1. Module pin is more intensive, need a better welding machine foundation. 2. CSR Ble module audio for the differential output, you need to increase the op amp or amp circuit into single-ended output (left channel, right channel, audio common). 3. Only provide module application data, that is, Ble module specifications and Ble module reference schematics
