2.1 Channel 240W High Power Subwoofer Amplifier Board AMP Dual AC18-24V Home Theater Audio Amplifier Board--shop.rfid-life.com

Amplifier Module

$12.60
Quantity

Description

Products Description
Product description:
Note:
Due to different batches of parts in the supply chain, the main changes are capacitance / capacity / withstand voltage. We will
ship randomly to ensure that all products are tested properly.

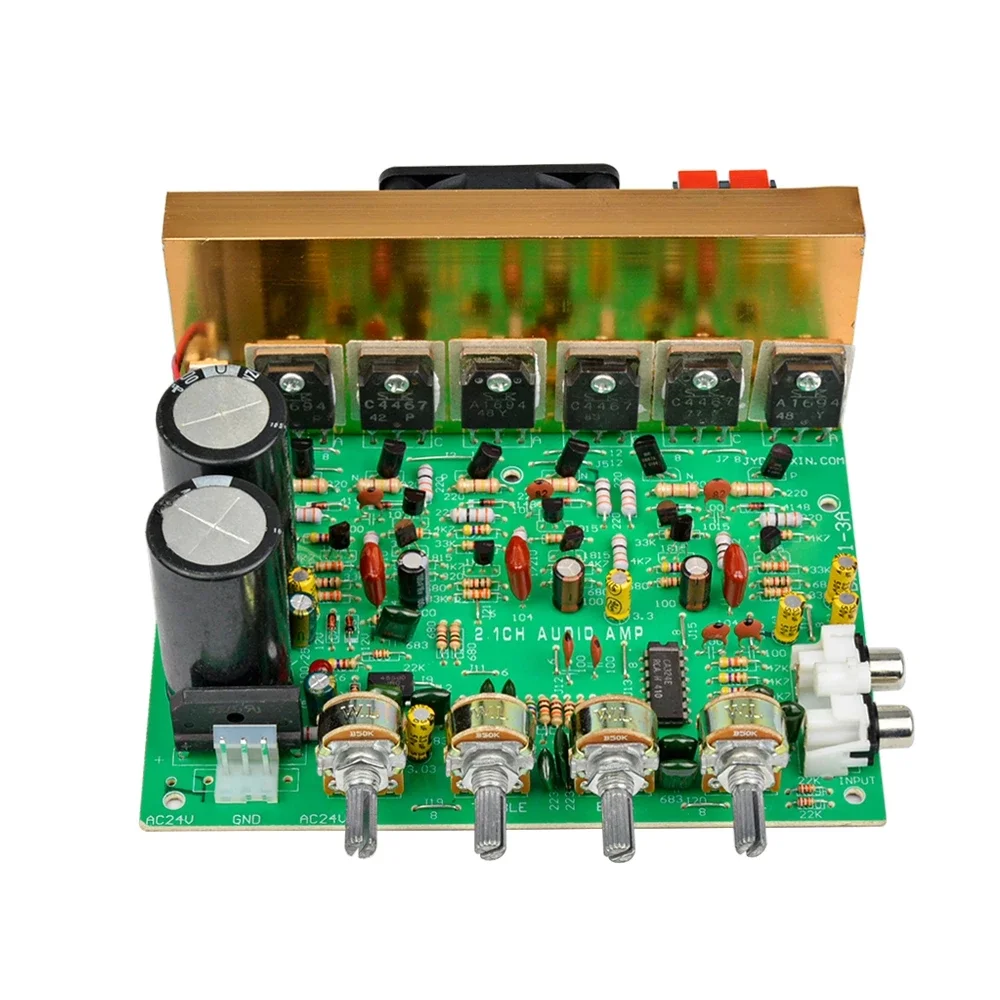

The board uses six disassemble amplifier tubes(used) , 4 responsible for the left and right channels, the other two connected to
BTL circuit for subwoofer use, wiring is very simple, especially for DIY.

Working voltage: AC double 18-24V 100W transformer

Peak output power: 3*80W

Max subwoofer output: 120W

Max Left and right channel output: 100W+100W

Load impedance: 8ohm

Frequency response: 20Hz-30KHz

Distortion: 1%

Size: 158*167*42MM


Package included:
1PC 2.1 Channel 200W High Power Subwoofer Amplifier Board
