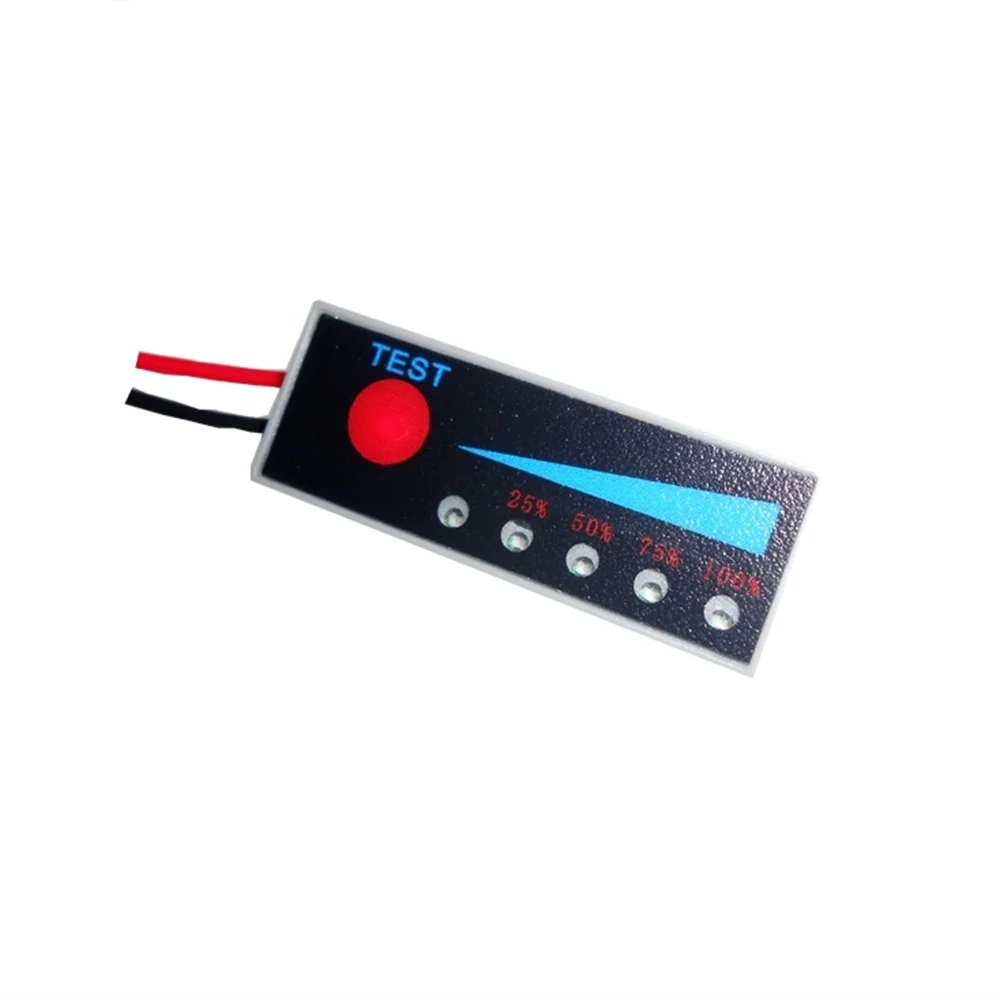

Product selling point: 1. Use high quality material, durable 2. Small size, exquisite appearance 3. Ultra-thin power display, 5 LED indicators, more intuitive display 4. With battery charging indicator, the marquee light indicates the charging process of the battery, and the charging and discharging modes independently distinguish the power, excluding the influence of the internal resistance of the battery on the battery power 5. Wider range of use
Parameters: When the battery is under voltage, the red light flashes to indicate charging Charging through charging current detection, simple wiring, no need to install charging identification diodes Does not affect the charging cut-off voltage, just use the original charger
Wiring: 1. Connect the red and black wires to the positive and negative poles of the battery 2. The white wire is connected to the negative pole of the charger The battery has a protection board, if it is the red and black wires of the same port for charging and discharging, directly connect to P+P- The red and black wires of the charging port are connected to C+ C-, and the white wire is connected to the negative pole of the charger in all cases. And the negative pole of the charger can only be connected to the white wire, otherwise the white wire will not run when there is no current passing through it.
