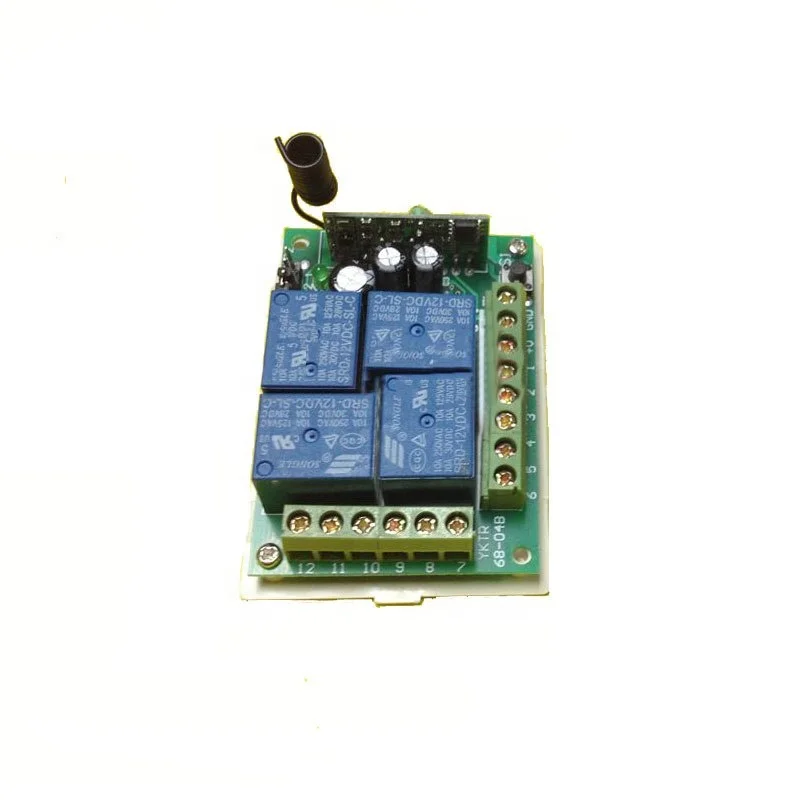

1Km remote control+4 key jog lock interlock multi-function 4 channel wireless remote control switch 12v relay switch
Technical parameters
Working voltage:DC12V
Load power:10A
(By A open, then press the other key off), jog (press and hold on, let go on the off) (through the jumper cap (by pressing the button) To choose)
Receiving frequency: 315MHZ
Remote control distance: 150 meters (above the industry standard distance, the actual distance is generally the actual distance of 50% -65%)
Board size: 68 * 48 * 20mm
Instructions for use:
1 clear: often press and hold learning button, learning indicator light, 5 seconds after the lights flash, that cleared successfully. After the clear, before the matching remote control are no longer work.
Note: If the factory has been matching before, do not clear operation!
2 Select the work mode: JP2 through the jumper cap to choose, jumper cap worn on 1 and 2, the work of self-locking; wear on 3 and 4, the work for the jog; do not wear, then work Interlocking. Note: You must select the working mode before power is applied, select the working mode after power is invalid!
3 supporting the remote control: click the learning button, the indicator light, release the hand, according to the matching remote control any key to launch the signal, the light flash three times after the off, that has been learning the remote control this button. If you want to use the remote control, you can re-operate this step!
Note: This product can be equipped with fixed code remote control and learning code remote control, if the same fixed code remote control, just have a good remote control can be equipped with the same address code can be equipped with any remote control; if For the learning code remote control, according to the third step can be, such remote control can only be supporting up to 16, such as matching, then the first remote control no longer work, and so on. If you find someone else's remote control can also control your switch (re-code phenomenon), then the switch to clear the operation, and then replace the remote control with another address code, re-matching can be.
Remote control parameters:
| Operating voltage | 9V (23A 12V battery) |
| Working frequency | 315MHZ |
| Chip | 2262 (2260/2264 can be customized) |
| Modulation | ASK (less stable interference) |
| Encoding Type | Fixed Code |
| Launch distance | 1000 meters (receiver sensitivity -108dBm) |
| Features | external DIP switch, to prevent mistaken press |
| Product Size | 90 * 40 * 20mm |
