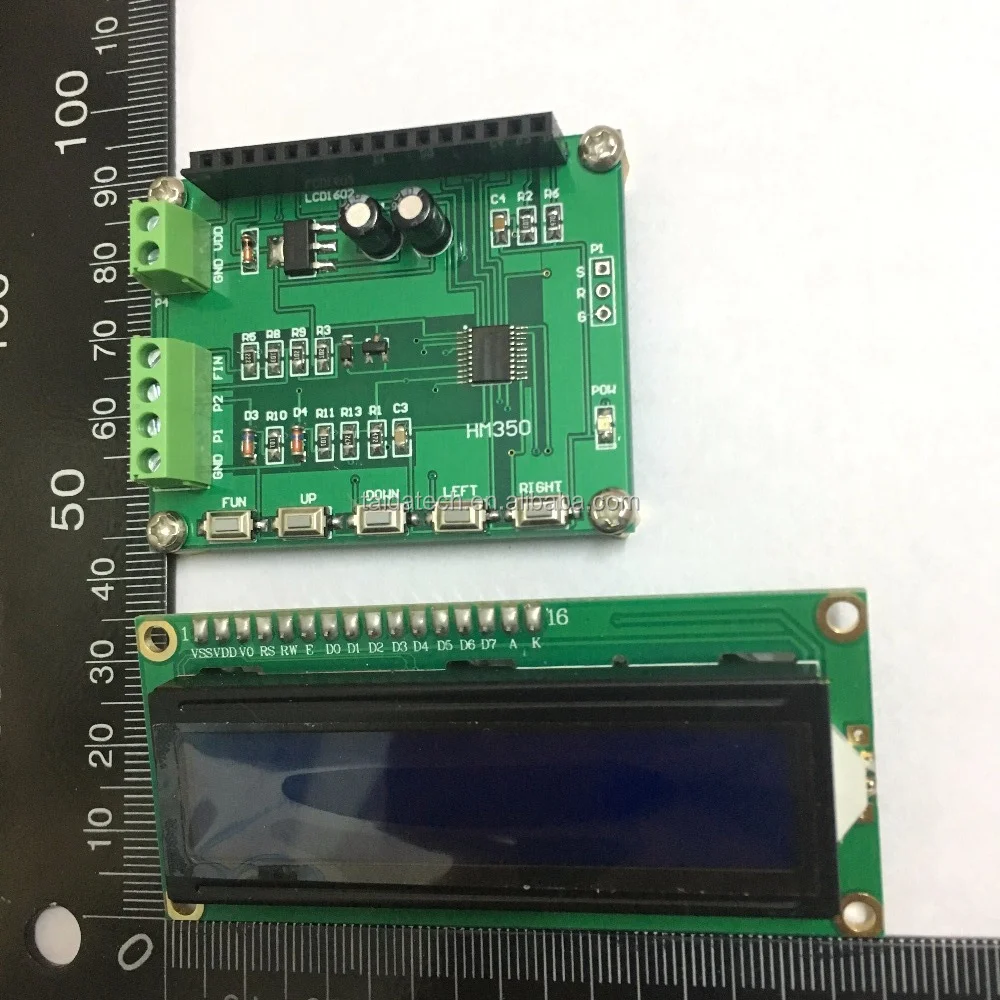

1Hz-100KHz PWM Function Generator DDS Function Signal Generator Module
Overview
HM350 is a small signal generator, the maximum can produce 100KHz frequency, duty cycle adjustable pulse signal; produce servo control signal; measurement frequency; The module is simple to use, and by pressing the key operation to input the frequency data, the output frequency is updated immediately.
product application
signal generator; instrument calibration; DC motor control; Measurement frequency;
technical parameters table
1 pulse signal range 1 ~ 100000 Hz pulse signal 2 pulse duty cycle range 0-100.0% duty cycle 3 pulse signal amplitude 5 VDC maximum amplitude 5.0Vp (output amplitude unchanged) 4 Measuring frequency range 1 ~ 100 KHZ 5 Measuring frequency resolution 0.01 HZ 6 Measuring frequency Voltage range ± 0.7 ~ 10 VDC is directly coupled 7 Servo signal frequency 100 Hz 8 servo signal pulse width 500 ~ 2500 us 9 Operating voltage 7 ~ 12 VDC 10 Operating current <50 mA 11 Size 57 * 45 * 20 mm Length X Width X Height
interface description and related operations
P4 interface (power supply) VDD: Positive power supply (7 ~ 12V) GND: Negative power supply
P3 interface
FIN: Measuring frequency input. P2: second anti-pulse signal output. P1: the first positive pulse signal output. GND: Negative power supply.
key instructions
FUN: (select the operation bit of the setting data) or (long press to save the setting parameter function). UP: Previous page. DOWN: Next page. LEFT: self-keying. ROGHT: self key.
interface display and operating instructions
Interface Display Font: The first line "1. Frequency" Second line "* 1 1000Hz" Key operation: FUN: function key; (select the operation bit of the setting data) or (long press to save the setting parameter function) LEFT: self keying; ROGHT: since the key;
6.2, set the pulse signal duty cycle Interface Display Font: The first line "2. Duty Cycle" Second line "* 0.1 50.0%" Key operation: FUN: function key; (select the operation bit of the setting data) or (long press to save the setting parameter function) LEFT: self keying; ROGHT: since the key;
6.3, the output servo pulse signal Interface Display Font: The first line "3.Servo Control" Second line "* 1 500us" Key operation: FUN: function key; (select the operation bit of the setting data) or (long press to save the setting parameter function) LEFT: self keying; ROGHT: since the key;
6.4, measuring frequency Interface Display Font: The first line "4.2K-> 200KHZ" The second line "0.00Hz" Key operation: Set the measurement frequency range keys: (LEFT: self-keying)
