Description

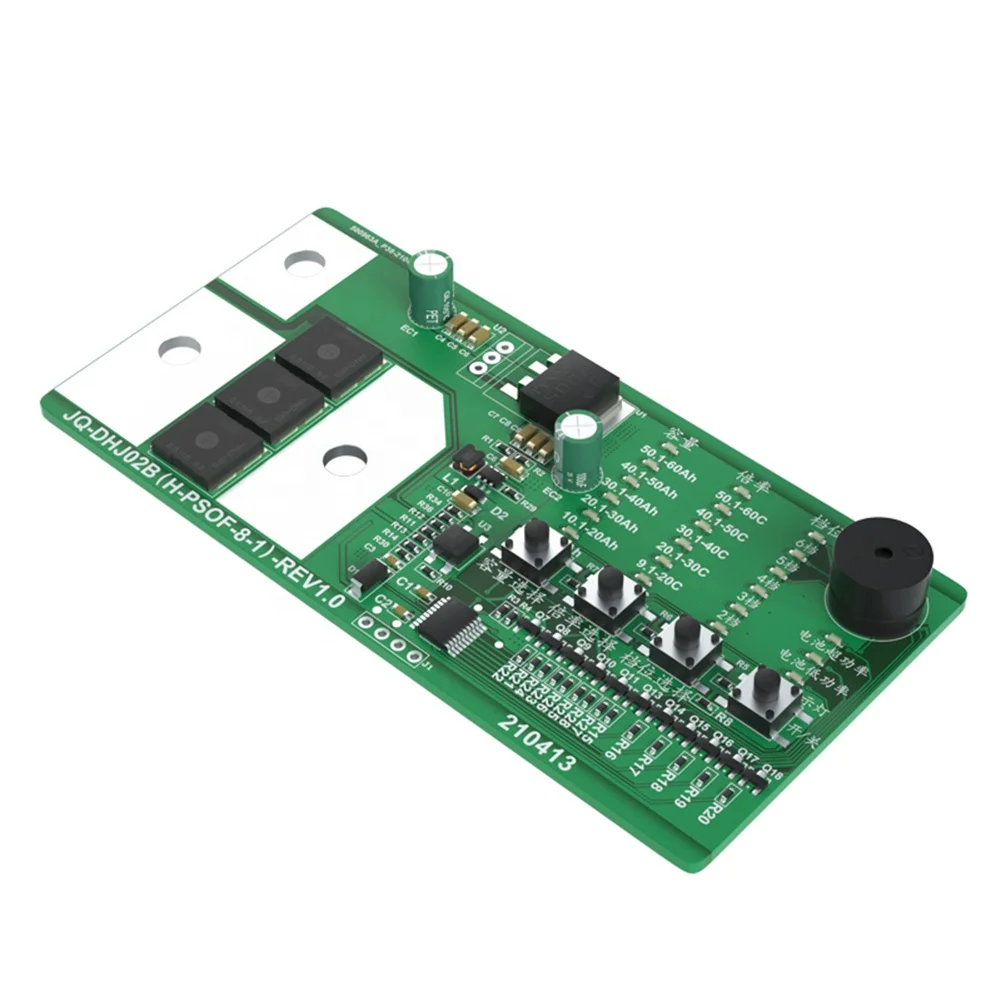

18650 Battery Spot Welding Machine Control Board Kit DIY Small Portable Mini Handheld Touch Spot Welding Board
Product Description
Product selling point
1: Wide range of applications 2: 6 MOS tubes 3: Welding firmly, non-exploding tube support, welding 0.3mm nickel sheet, six-speed welding gear, supporting welding current 100A-900A 4: Intelligent matching, simple operation and good effect 5: Wider voltage and wide selection of power source welding is firmer and wider
Specification
|
item
|
value
|
|
Operating Voltage
|
6.5V-16V
|
|
Working current
|
less than 20mA
|
|
Standby power consumption
|
less than 0.5mA
|
|
Recommended use temperature
|
-10-60℃
|
|
Product Size
|
107*53mm ± 1mm
|
|
Product weight
|
less than 100g
|
|
Welding peak current
|
1800A MAX
|
|
Smart sleep
|
Automatic sleep after 8 minutes of inactivity
|
|
Welding mode
|
0.1-0.3mm (related to battery discharge energy) high rate lithium battery, commonly used power supply high rate lithium iron phosphate and other lithium batteries
|
Installation Instructions
Wider voltage and wide selection of power supply, stronger and wider welding This product requires your own power supply, supports 6.5V-16V power supply equipment, and the working current is about 100A~900A, and supports 0.1-0.3mm nickel-plated sheet welding System voltage: 6.5V-16V Working current: 100-900A More working power supplies: 1. The 12V-30-65ah lead-acid battery has good performance and small internal resistance (the internal resistance is less than 10 milliohms, and the discharge current is greater than 100A). Such as 12v car starting battery. 2. 4000mah-10000mah, 30-70C, 2S 3S 4S model aircraft lithium battery (4S battery needs to be less than 16V). 3. 30-35ah capacity type 18650 battery pack. 4. The battery discharge current is less than 900A, and the short-circuit current is less than 1800A. Exceeding this range may damage the control board. 5. Small-capacity 18650 battery and DC power supply cannot be used as a power source. It must have a high rate lithium battery pack or a car start lead acid battery with a discharge capacity >100A!
