1602 Display Multi-Waveform Function Signal Generator Experimental PCB Boards MCU Digital RF Signal Generator Kit
Standard Edition full set of spare parts - this package contains the PCB empty board, function signal generator standard version of the required components, schematics and instructions
| Power requirements | 9V - 12V, the positive external negative |
| PCB size | length 81mm X width 57mm |
Functional Description:
Based on the single-chip function of the signal generator, can produce square wave, sine wave, triangular wave, sawtooth wave, inverted sawtooth wave, frequency 1Hz - 20KHz (14 level adjustment). Lite uses LED to indicate the operating mode, can produce square wave, sine wave, triangular wave, frequency 50Hz - 2KHz (5 level adjustment). With button sound.

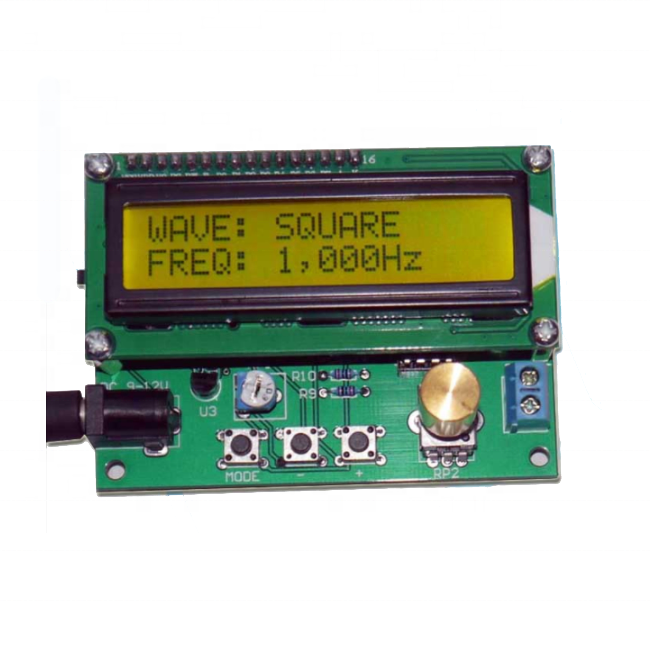

Standard version of the structure:
Compact structure diagram:
Functional comparison:
| Standard edition | Lite | |
| Output waveform | Square wave, sine wave, triangle wave, sawtooth wave, square wave, sine wave, triangle wave, inverted sawtooth wave | The same |
| Output frequency | 1Hz, 2Hz, 5Hz, 10Hz, 20Hz, 50Hz, 100Hz, 200Hz, 500Hz, 1KHZ, 2KHZ, 5KHZ, 10KHz, 20KHz | 50Hz, 100Hz, 200Hz, 1KHz, 2KHz |
| Mode indication | 1602 display | 3 LEDs flashing: 50Hz = gap flashes once 100Hz = gap flashes 2 times 200Hz = gap flashes 3 times 1KHz = continuous flashing 2KHz = always bright |
| Other enhancements | 1602 display contrast adjustment 1602 display fixed copper column Gold plated output strength knob |
Component list:
| Component identification | Component name | Quantity |
| BZ1 | passive buzzer | 1 |
| C1 | electrolytic capacitor 10V 100uF | 1 |
| C2 | ceramic capacitor 0.1uF | 1 |
| C3 | electrolytic capacitor 25V 100uF | 1 |
| J1 | power socket 5.5 / 2.1 mm | 1 |
| P1 | 2P terminal | 1 |
| Q1 | S8550 | 1 |
| S1 - S3 | Tact Switch | 3 |
| S4 | horizontal toggle switch | 1 |
| XTAL | crystal 30MHz | 1 |
| U3 | 78L05 | 1 |
| R2 - R8 | Resistance 10K | 7 |
| R1,R9-R17 | Resistance 20K | 10 |
| RP2 | potentiometer RV09 100K | 1 |
| U1 | STC15W408AS DIP28 | 1 |
| CZ1 |
IC Block 28P PCB 81mm X 57mm |
1 1 |
| [U2] | Available only in Lite: LM358P DIP8 | 1 |
| [D1 - D3] | Available in Lite only: LED 3mm Red | 3 |
| [R19] | Available only in Lite: Resistance 4.7K | 1 |
| *U2 | only available in the standard version: TLC2272CP DIP8 | 1 |
| *J2 | Available only in the standard version: LCD1602 with backlight | 1 |
| *RP1 | only available in the standard version: blue and white adjustable resistance horizontal 103 (10K) | 1 |
| *CZ2 | only available in the standard version: single row header 16P | 1 |
| * | Available only in the standard version: Single pin 16P | 1 |
| * | Available only in the standard version: copper column height 11mm | 4 |
| * | Available only in the standard version: Screw | 4 |
| * | Available only in the standard version: Nut | 4 |
| * | Available only in the standard version: Knob 10mm X 15mm gold plated | 1 |
