15A BLDC three phase motor non-inductive governor explosive fan drive esc motor 3 phase brushless dc motor controller--shop.rfid-life.com

dc motor controller

$18.20
Quantity

Description

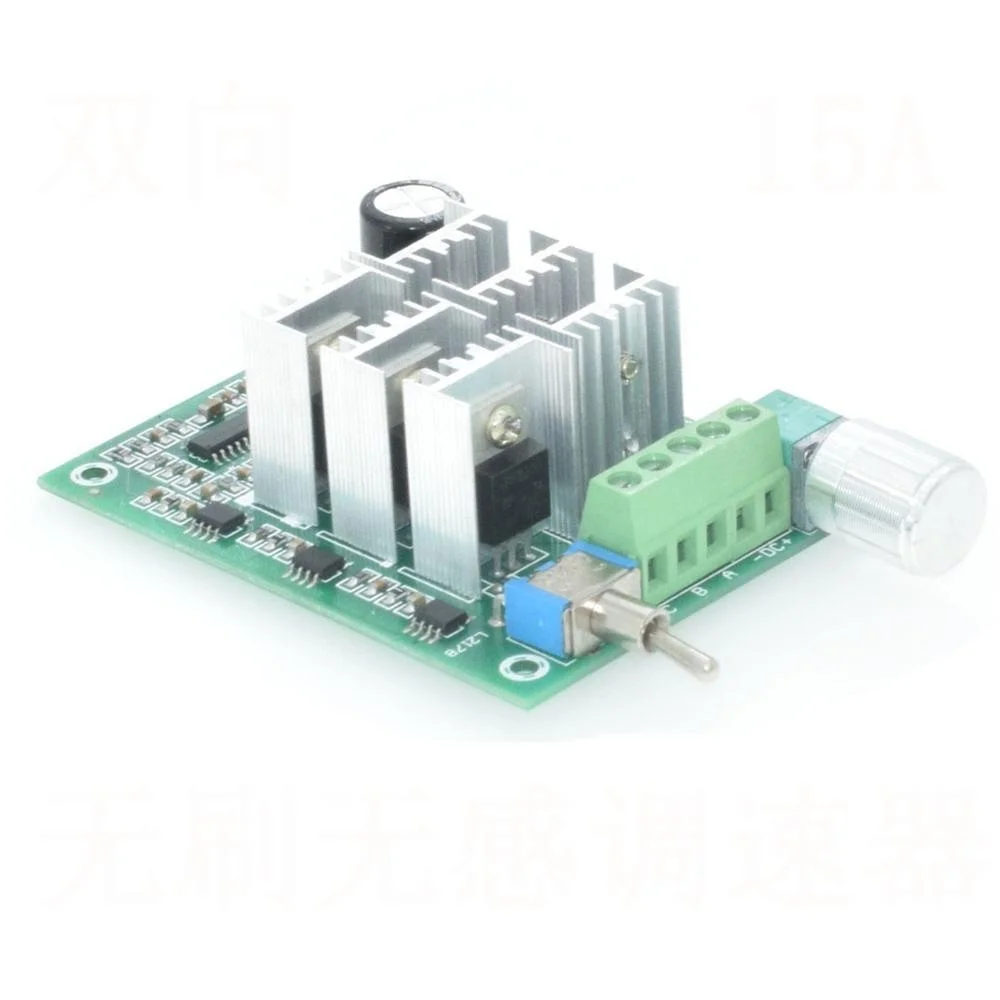

15A BLDC three phase motor non-inductive governor explosive fan drive esc motor 3 phase brushless dc motor controller

Description

Product Name: C3
Input voltage: DC5-36v (specific voltage is equal to motor rated voltage)
Output current: within 15A
Forward rotation reverse: two-way
Protection current: 15A
Input current: It is larger than the motor work
Speed control mode: potentiometer (270 degree linear)
Speed range: 0 - 100%
Support motor: Brushless motor
Wiring type: Barrier terminal block
Knob specifications: 100K (with switch)
Module size: length * width * height 80mm * 60mm * 28mm
Product net weight: 76 grams
Note: The input voltage must be positive or negative. Do not input 220V household electricity.
         The input voltage should be equal to the rated voltage of the motor (within 5-24V)
         Motor line ABC is in no order
