Description
Product Description

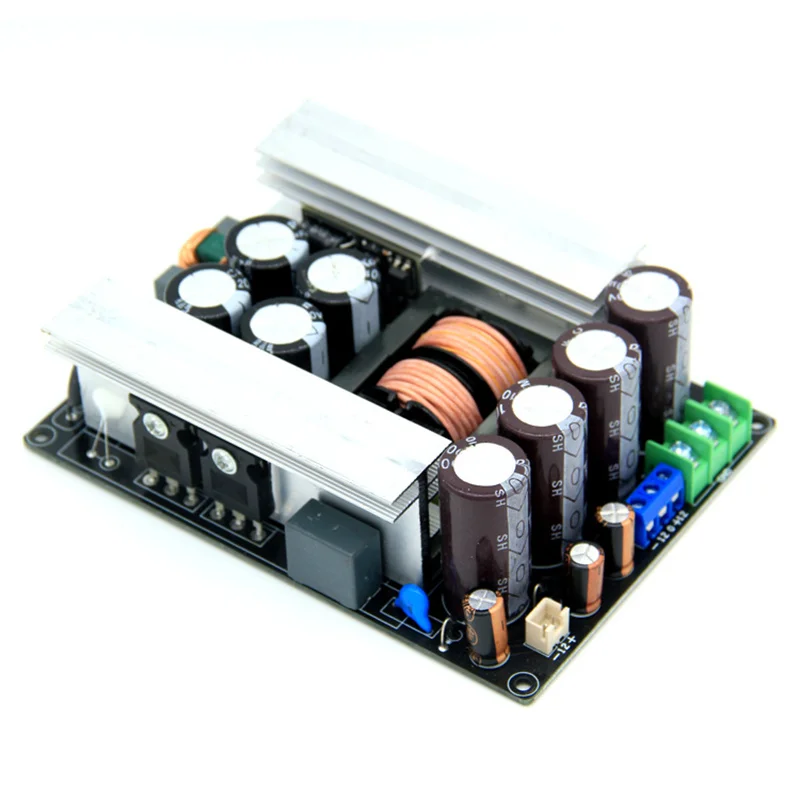

1500W LLC Soft Switch Power Supply Module Amplifier Switching Power Supply Input AC200-240V +- 45V/50V/55V/60V/70/80V
Introdction
Parameter:
Input voltage: AC200-240V
Output voltage: main ±80V; Independent 18V; Auxiliary +-18V(different main voltage, auxiliary and independent voltage is different, the purchase title is shown)
Voltage stability accuracy: main no-load ±10%, with load ±3%; Independent no-load ±15% (AC220V input)
Output current: ±80V/6.3A; Independent 18V/0.5A; Auxiliary +-18V/0.5A (with main voltage supply)
Special reminder: Since the switching power supply only regulates the main voltage, the current of the independent and auxiliary output must be less than the current of the main voltage output; For example, the current of the main voltage is 10mA, and the auxiliary and independent can not carry more than 10MA
Continuous power: 600W (can work continuously for a long time at 25℃ ambient temperature, 600W work and fan heat dissipation)
Rated power: 1000W (25℃ ambient temperature can work continuously for about 5 minutes
)
Instantaneous power: 1500W (the power generated when the dynamic signal shocks, the time is less than 100 haoseconds)
Conversion efficiency: Max 95%
Size: Length width height =143*96*38mm
Weight :430g
Output voltage: main ±80V; Independent 18V; Auxiliary +-18V(different main voltage, auxiliary and independent voltage is different, the purchase title is shown)
Voltage stability accuracy: main no-load ±10%, with load ±3%; Independent no-load ±15% (AC220V input)
Output current: ±80V/6.3A; Independent 18V/0.5A; Auxiliary +-18V/0.5A (with main voltage supply)
Special reminder: Since the switching power supply only regulates the main voltage, the current of the independent and auxiliary output must be less than the current of the main voltage output; For example, the current of the main voltage is 10mA, and the auxiliary and independent can not carry more than 10MA
Continuous power: 600W (can work continuously for a long time at 25℃ ambient temperature, 600W work and fan heat dissipation)
Rated power: 1000W (25℃ ambient temperature can work continuously for about 5 minutes
)
Instantaneous power: 1500W (the power generated when the dynamic signal shocks, the time is less than 100 haoseconds)
Conversion efficiency: Max 95%
Size: Length width height =143*96*38mm
Weight :430g
