Description

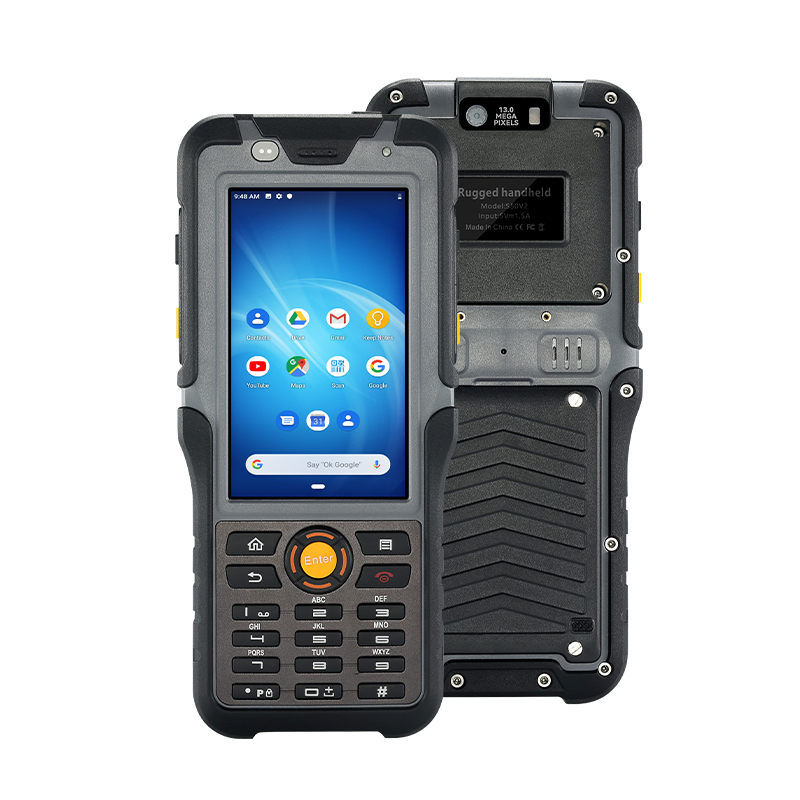

Appearance
|
1：Power button
|
2：Scan button
|
3：MIC
|
4：Barcode scanner(optional)
|
5：earphone (Sealed Cover)
|
|
6：light sensation
|
7：Handset
|
8：charge lamp
|
9：Home
|
10：Arrow and confirm Button
|
|
11：Menu Button
|
12：Back Button
|
13：Number Button
|
14：Power ON/OFF
|
15：* Button
|
|
16：# Button
|
17：2pin pogo pin
|
18：Type-C (Sealed Cover)
|
19：Volume up
|
20：Volume Down
|
|
21：main camera （optional)
|
22：Function box(optional)
|
23：Nameplate
|
24: Speaker
|
25：battery
|
product packing standard
Specification
|
Hardware
|
||||||||
|
CPU
|
ARM Cortex A73 octa-core(2.0GHz )
|
|||||||
|
GPU
|
Arm Mali--G72 MP3
|
|||||||
|
RAM
|
4GB
|
|||||||
|
Internal Memory
|
32GB
|
|||||||
|
External Memory
|
Micro SD card ( T-FLASH card), max 256GB
|
|||||||
|
Main Camera
|
13.0MP(AF) with flash led
|
|||||||
|
Sub Camera
|
N/A
|
|||||||
|
Battery
|
5000mAh（Replaceable battery）
|
|||||||
|
Display
|
4.5 inch IPS/AFFS 960*540 QHD industrial 550nit Sunlight Readable
|
|||||||
|
Touch Panel
|
Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen
|
|||||||
|
IO/Sensor/Navigation
|
||||||||
|
SIM Card
|
1.8/3.3V SIM card
|
|||||||
|
TF Card
|
Micro SD card ( T-FLASH card) ;max 256GB
|
|||||||
|
Headphone
|
3.5mm (CTIA）
|
|||||||
|
Charging interface
|
Type-C & 2pin pogo pin
|
|||||||
|
Data interface
|
USB Type-C(OTG)*1
|
|||||||
|
Gravity sensor
|
support
|
|||||||
|
Motion sensor
|
support
|
|||||||
|
Direction Sensor
|
support
|
|||||||
|
Magnetic Field
|
support
|
|||||||
|
Gyro sensor
|
support
|
|||||||
|
Rotation Vector
|
support
|
|||||||
|
Light-sensor
|
support
|
|||||||
|
Acceleration sensor
|
support
|
|||||||
|
Charger
|
5.0V 2A-10W
|
|||||||
|
Navigation
|
GPS+Glonass+Beidou+Galileo+AGPS
|
|||||||
|
Appearance
|
||||||||
|
Size
|
197*92*26.5mm（L×W×H）
|
|||||||
|
Weight
|
420g
|
|||||||
|
Color & Material
|
Black&Gray
|
|||||||
|
Communications & Networking
|
||||||||
|
Phone Call
|
GSM /WCDMA/CDMA 1X/VoLTE
|
|||||||
|
2G
|
GSM/CDMA 1X/EDGE/GPRS/WAP
|
|||||||
|
2G Band
|
GSM（B2/3/5/8）
|
|||||||
|
3G
|
WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps),EVDO
|
|||||||
|
3G Band
|
WCDMA（B1/2/5/8）,Evdo: BC0/BC1 CDMA: BC0/BC1
|
|||||||
|
4G
|
FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink , 50Mbps uplink
|
|||||||
|
4G Band
|
TD-LTE（B38/39/40/41）；FDD LTE（B1/2/3/4/5/7/8/12/17/20/28）
|
|||||||
|
WI-FI
|
Dual-band (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac
|
|||||||
|
BT
|
5.0 Low Energy (LE)
|
|||||||
|
Industrial & Reliability Design
|
||||||||
|
Shake-proof
|
1-19Hz/1.0mm; 19-200Hz/1.0g
|
|||||||
|
Dropproof /IK
|
MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05
|
|||||||
|
Waterproof
|
Class 5 ( IEC 60529 )
|
|||||||
|
Dustproof
|
Class 6 ( IEC 60529 )
|
|||||||
|
Reliability
|
MTBF>5000h；MTTR<0.5h
|
|||||||
|
Operating temperature
|
-20°C to 55°C
|
|||||||
|
Storage Temperature
|
-40°C to 80°C
|
|||||||
|
RH
|
5% to 95% (No condensation)
|
|||||||
|
Operating Altitude
|
Max: 4,500 m（15,000 feet）
|
|||||||
|
Certification/OS/Software
|
||||||||
|
Certification
|
3C /FCC/CE/ROHS/IP65（IEC 60529）
|
|||||||
|
Language
|
English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch,French, Polish, Romanian, Turkish, Russian,Arabic, Indonesian, Malay, Thai, Vietnamese,Hindi, Hebrew, Simplified， Chinese,Chinese Traditional,etc
|
|||||||
|
OS
|
Android 10 / 11
|
|||||||
|
Package/Warranty terms
|
||||||||
|
Warranty
|
24 months
|
|||||||
|
Package
|
USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box/Aircraft box
|
|||||||
FUNCTION MODULES
|
LF RFID data collection
|
||||||||
|
125K LF ID Module
|
LF RFID，125K
|
|||||||
|
134 LF RFID Module
|
LF RFID，134k Animal module
|
|||||||
|
HF RFID/NFC
|
||||||||
|
Frequency
|
13.56MHz
|
|||||||
|
Protocol standard
|
ISO14443A/B,ISO15693，NFC
|
|||||||
|
Label standard
|
M1(S50、S70)、CPU、NFC
|
|||||||
|
Read-write distance
|
2-5cm
|
|||||||
|
Data Collection
|
||||||||
|
Scanning engine
|
E20 Barcode Module
|
|||||||
|
2D
|
QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code, Dotcode, Composite.
|
|||||||
|
1D
|
Code 128 ( ISBT 128, AIM 128, GSI 128 ), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93,
Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban. |
|||||||
Products Description
Factory strength
Certifications
FAQ
Q :Are you manufacturer?
A: Yes, we are manufacturers.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Does the handheld can read QR code and common 1d bar codes?
A: Yes, if choose 2d scan version, it can read both 1D common code and 2d codes such as QR, PDF417, Data Matrix, PDF417 code...
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty? A: We Offer 24 Months Warranty after shipment sent. Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
