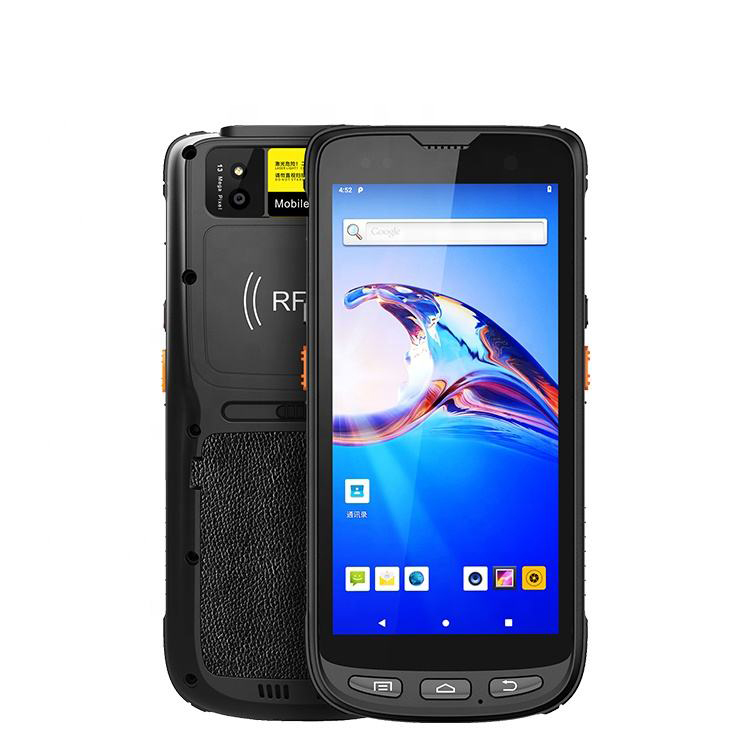

134.2KHz FDX-A/B HDX rfid animal ear tag identification LF RFID reader
This serial product extends Handheld-Wireless product serials into Android OS 10.0 with 4G high speed network communication. Inside the compact handheld device, sealing level of IP65 water/dust proof, 1.5m/4.5ft drop survival, ergonomic design, over-molding structure, quick- charging technology, and 5.5 inch.
Industrial and Humanized Hardware Design
Industrial&humanized keypad design and tough 5.5 inch Gorilla Glass 3 touch screen together with high resolution of 720*1440 display shall match high standards in logistics, express and retail;
Octa-Core Processor&Large Memory
Android 10.0 OS with memory of 2GB RAM/16GB ROM or 4GB RAM/64GB ROM shall provide the highly standard experience;
Superior Data Communication and Security Guarantee
Double insurance of 4G &WIFI network and highly secured Android 10.0 system shall provide the high speed data communication and perfect security guarantee;
Rugged Ergonomic and Over-molding Design
Over-molding and ergonomic hardware design can satisfy most of the tough environment from different fields;
Perfect Built-in UHF Reader
Stable built-in UHF reader up to 2 meters with low battery consumption shall satify most of the projects with close reading distance requirements;
|
SPECIFICATIONS |
|||
|
PHYSICAL CHARACTERISTICS |
|||
|
Dimension |
166mm(H)x79mm(W)x27mm(D)±2 mm |
||
|
Weight |
Net Weight :400g (including battery&wrist strap) |
||
|
Display |
Gorilla Glass 3 9H 5.5 in. TFT-LCD (720x1440)touch screen with backlight |
||
|
Backlight |
LED backlight |
||
|
Expansions |
1 PSAM, 1 SIM, 1 TF |
||
|
Battery |
Rechargeable li-ion polymer, 3.8V, 4800mAh |
||
|
PERFORMANCE CHARACTERSTICS |
|||
|
CPU |
Cortex A73 2.0GHz quad-core |
||
|
Operating System |
Android 10.0 |
||
|
Storage |
2GB RAM/16GB ROM or 4GB RAM/64GB ROM, MicroSD(max 256GB expansion) |
||
|
USER ENVIRONMENT |
|||
|
Operating Temp. |
-20℃ to 50℃ |
||
|
Storage Temp. |
-20℃ to 70℃ |
||
|
Humidity |
5%RH to 95%RH(non-condensing) |
||
|
Drop Specifications |
5ft./1.5 m drop to concrete across the operating temperature range |
||
|
Sealing |
IP65, IEC compliance |
||
|
ESD |
±15kv air discharge, ±8kv direct discharge |
||
|
DEVELOPMENT ENVIRONMENT |
|||
|
SDK |
Handheld-Wireless Software Development Kit |
||
|
Language |
Java |
||
|
Environment |
Android Studio or Eclipse |
||
|
DATA COMMUNICATION |
|||
|
WWAN |
TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 7, 17, 20; WCDMA(850/1900/2100MHz); GSM/GPRS/Edge (850/900/1800/1900MHz); |
||
|
WLAN |
2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac |
||
|
WPAN |
Blue tooth Class v2.1+EDR, Blue tooth v3.0+HS, Blue tooth v4.2 |
||
|
GPS |
GPS(embedded A-GPS), accuracy of 5 m |
||
|
DATA CAPTUER |
|||
|
BARCODE READER(OPTIONAL) |
|||
|
1D barcode |
1D laser engine |
Honeywell N4313 |
|
|
Symbologies |
All major 1D barcodes |
||
|
2D barcode |
2D CMOS Imager |
Zebra SE4710/Mindeo ME5600 |
|
|
Symbologies |
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. |
||
|
COLOR CAMERA |
|||
|
Resolution |
Rear 13 megapixel, front 5.0 megapixel |
||
|
Lens |
Auto-focus with LED flash |
||
|
RFID READER(OPTIONAL) |
|||
|
RFID LF |
Frequency |
125KHz/134.2KHz(FDX-B/HDX) |
|
|
Protocol |
ISO 11784&11785 |
||
|
R/W Range |
2cm to 10 cm |
||
|
RFID HF/NFC |
Frequency |
13.56MHz |
|
|
Protocol |
ISO 14443A&15693 |
||
|
R/W Range |
2cm to 8cm |
||
|
RFID UHF |
Frequency |
865~868MHz or 920~925MHz |
|
|
Protocol |
EPC C1 GEN2/ISO 18000-6C |
||
|
Antenna Gain |
Circular antenna(2dBi) |
||
|
R/W Range |
2.0m(tags and environment dependent) |
||
|
FINGERPRINT READER(OPTIONAL) |
|||
|
Sensor |
TCS1xx |
||
|
Sensor type |
Capacitive, area sensor |
||
|
Resolution |
508 DPI |
||
|
Performance |
FRR<0.008%, FAR<0.005% |
||
|
Capacity |
1000 |
||
|
PSAM SECURITY(OPTIONAL) |
|||
|
Protocol |
ISO 7816 |
||
|
Baudrate |
9600, 19200, 38400,43000, 56000, 57600, 115200 |
||
|
Slot |
2 slots(maximum) |
||
|
ACCESSORIES |
|||
|
Standard |
1xPower Supply; 1xLithium Polymer Battery; 1xType-C cable |
||
|
Optional |
Carrying case; Cradle |
||
