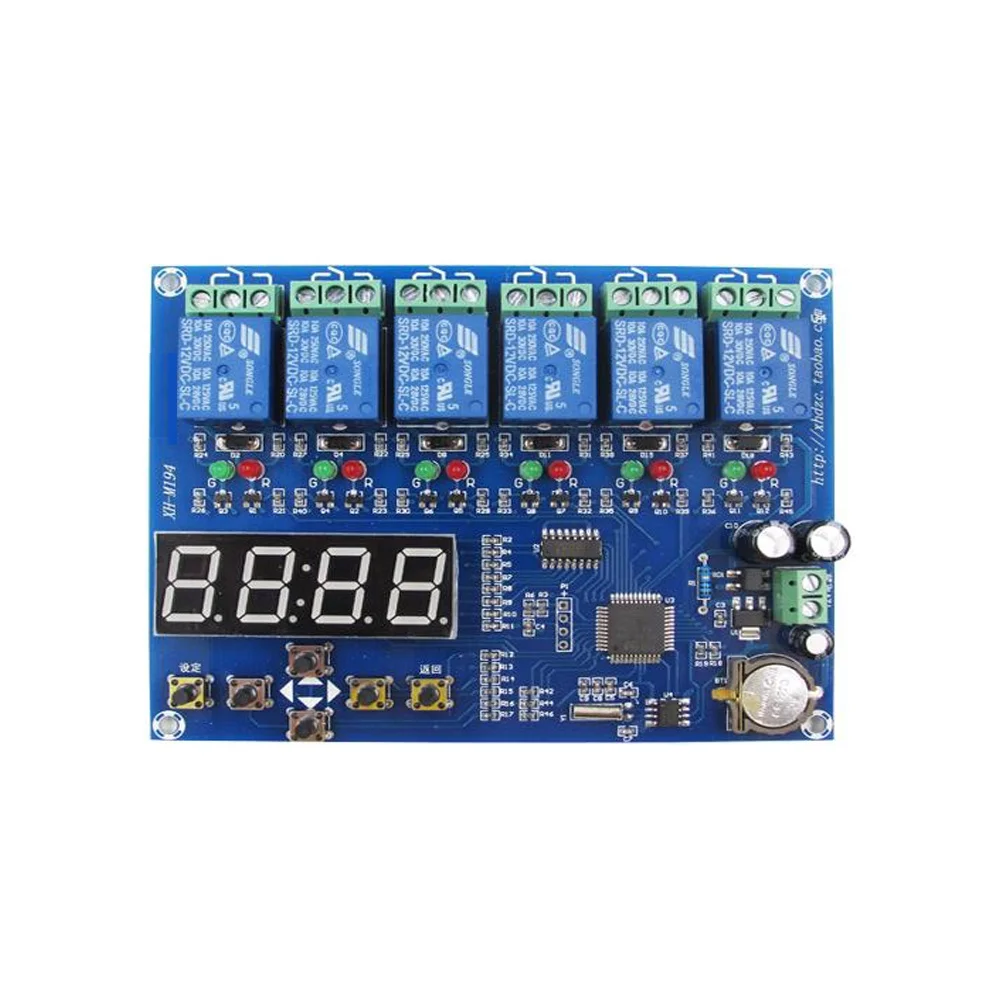

12V XH-M194 5 Channels Light Timer Switch Panel 5 CH Relay Timer PCB Multi Time Switch Relay Module
Product Description
This module can control five independent relays and one general relay to output normally open or normally closed electric shock. The working time of each relay can be set independently. Within the set time range, the relay action outputs normally open or normally closed electric shock, so as to realize the control of the equipment. This module can be widely used in motor control, water pump control, boiler control and other occasions.
Specification
|
item
|
value
|
|
Model Number
|
multi-way timing module
|
|
Theory
|
Digital
|
|
Usage
|
Multifunctional
|
|
Type
|
Mini
|
|
Power supply
|
AC/DC 12V
|
|
Output
|
Relay output MAX 250V 10A
|
|
Size
|
120*93*19mm
|
|
Display size
|
50*19mm
|
|
Timing accurate
|
1 minute
|
Buttons and indicator lights
Red light; channel timed mode closed indicator light Green light; channel time control mode open indicator Set key; press once to enter menu PO01-P007 Return key; press once to return to the previous menu Up key; increase the current displayed value, set the time, valid in the menu Down key; Decrease the current displayed value, set the time, valid in the menu Left key; move left, the set time is valid Right click; move right, set time is valid
|
Parameter setting
|
||||||
|
Menu
|
Menu discription
|
Set range
|
Default
|
|||
|
P001
|
1th relay
|
ON/OFF
|
OFF
|
|||
|
P002
|
2th relay
|
|||||
|
P003
|
3th relay
|
|||||
|
P004
|
4th relay
|
|||||
|
P005
|
5th relay
|
|||||
|
P006
|
System is time
|
00:00 to 23:59
|
00:00
|
|||
|
P007
|
Time calibration
|
-59 to 59s
|
0
|
|||
Internal setting description
OF/OFF: open/close the corresponding channel (ie P1-P5) H1-H2: relay on time/relay off time 1. Enter the menu: press the "set" button once to enter the main menu PO01-P007 2. Turn on the channel switch: when the panel displays any value of PO01-P007, press the Set key once to enter the internal setting of PO1-P007. At this time, press the up and down keys to set it to OFF or ON. (Set it to ON, that is, turn on the switch of the corresponding channel) 3. Set the on and off time: when the TV is on, press the set button once, the panel will display H1 (press the up button to change to H2), press the set button again, you can set the time of H1, that is, the relay on time. After setting H1, set H2 (relay off time) 4. PO01-P005 is OFF by default. If you need to turn on the corresponding relay, change it to ON and then set H1-H2 respectively. 5. Restore factory settings: Press and hold the up and down keys at the same time, power on the motherboard, the system will self-check, the digital tube will display from 0000-9999, and the 6 groups of indicators will light up in sequence from the left, accompanied by the sound of each group of relays closing. The factory reset is now complete.
How to use
1. Set the system time: enter PO06 and set the time. If it is already set, you can ignore this step 2. Turn on the first channel: press the setting button to enter P01 and change it to ON 3. Set H1 and H2: After setting, press the (return) key to exit 4. The 6th relay is the total output, that is, any one of 1-5 is closed, then the 6th relay is also closed! (If you need to control multiple channels, please set PO02-P005 to ON respectively, and then set the corresponding H1 and H2)
