12V Vibration Detector Alarm Sensitivity Adjustable Sensor + Relay Vibration Cutout Switch Car Alarm Vibration Sensor

12V Vibration Detector Alarm Sensitivity Adjustable Sensor + Relay Vibration Cutout Switch Car Alarm Vibration Sensor

12V vibration delay module plus relay module plus delay three-in-one module, vibration switch module alarm trigger, with 3 vibration sensors.

Module function description:
The module detects that the vibration relay is on, there is no vibration, the delay is off, there is always a vibration trigger signal during the delay time, the relay is always on, the relay will not be disconnected and flashed, and the vibration trigger signal stops, start from the new Timing, delay time to the relay is disconnected; green light is on, that is, the common end is connected to the normally open end, and the common end is disconnected from the normally closed end.

use:
The vibration triggers the alarm delay, which can be directly used in car alarms, vibration switches, and various high current and high voltage applications.

Module features:
1. One vibration sensor;
2. The vibration sensor can be connected to the detection position. The line length is within 5 meters and has no effect on sensitivity.
3. Provide a variety of power input wiring methods to meet various needs;
4. It has anti-power reverse protection diode to effectively protect the product;
5, with a voltage regulator IC, providing a stable and sufficient power supply;
6, using high-performance timing CPU design, double-layer PCB board;
7. There is a power indicator (red LED) and a switch trigger timing indicator (green LED);
8, the output can be connected to AC 250V 30A or DC 30V 30A load;
9. When the vibration sensor vibrates, the module starts timing, lights up the green LED, the relay is closed, the timing ends, the green LED is off, the relay is released, and the relay is restored to the normally closed end;
10. The module detects that there is a vibration relay connected. There is no vibration and the delay is disconnected. There is always a vibration trigger signal during the delay time. The relay is always on, the relay will not be disconnected and flashed, and the vibration trigger signal stops. Starting from the new time, the delay time is up until the relay is disconnected;
11, with timing potentiometer adjustment time, product design is adjustable from 1 to 180 seconds, can also be customized time range;
12, timing time error is 5%

Applications:
1, with a variety of other sensors plus relay modules, you can do a variety of delay switches, directly with AC 220V products;
2, corridor delay switch, delay energy-saving products;
3, connected to the vibration sensor can do a variety of alarm delay trigger, such as earthquake alarm, burglar alarm, car burglar alarm
4, the shock sensor can also be applied to the car start automatic trigger control related products;
5. The machine equipment stops the delay alarm trigger.

Electrical parameters:

Shipping list:

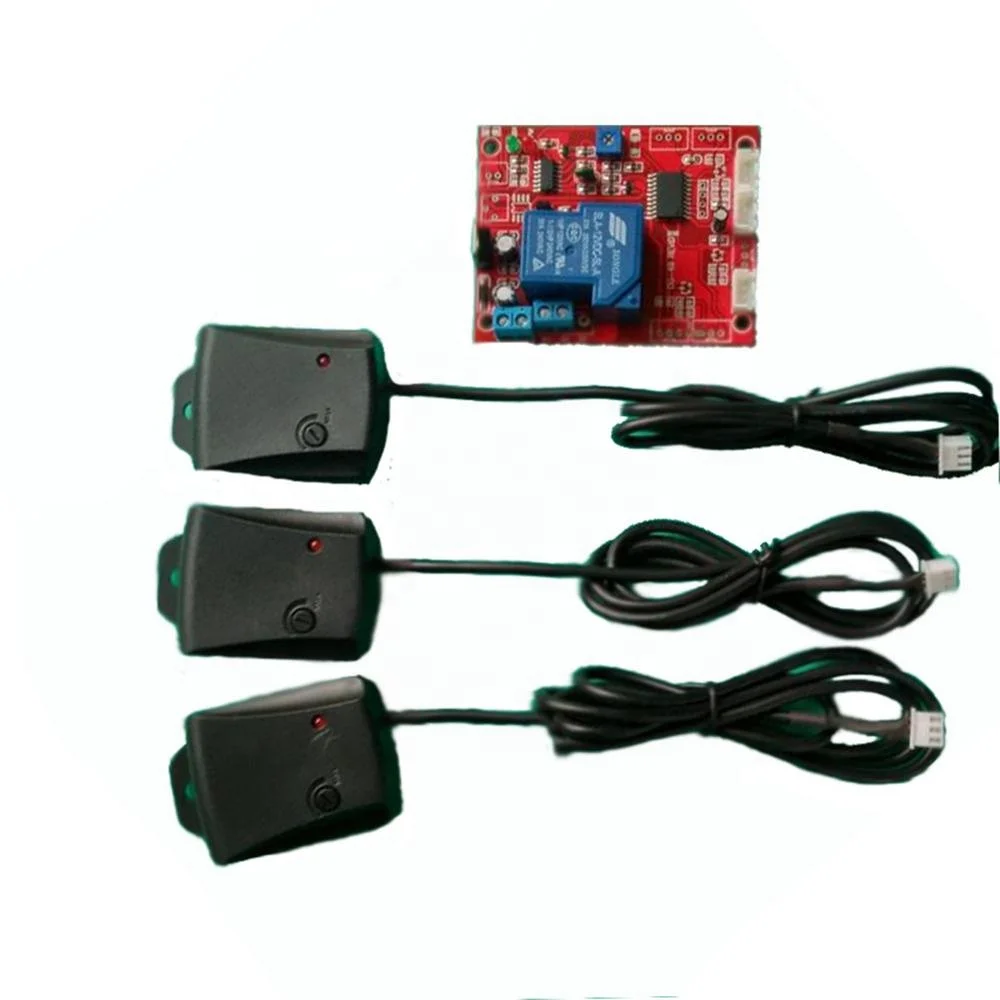

12V vibration sensor delay module, with 3 vibration sensors.

12V vibration delay switch wiring instructions:
