Description
12V Temperature Humidity Controller Dual Relay Output Auto Constant Digital Temperature and Humidity Controller Board
Product Description

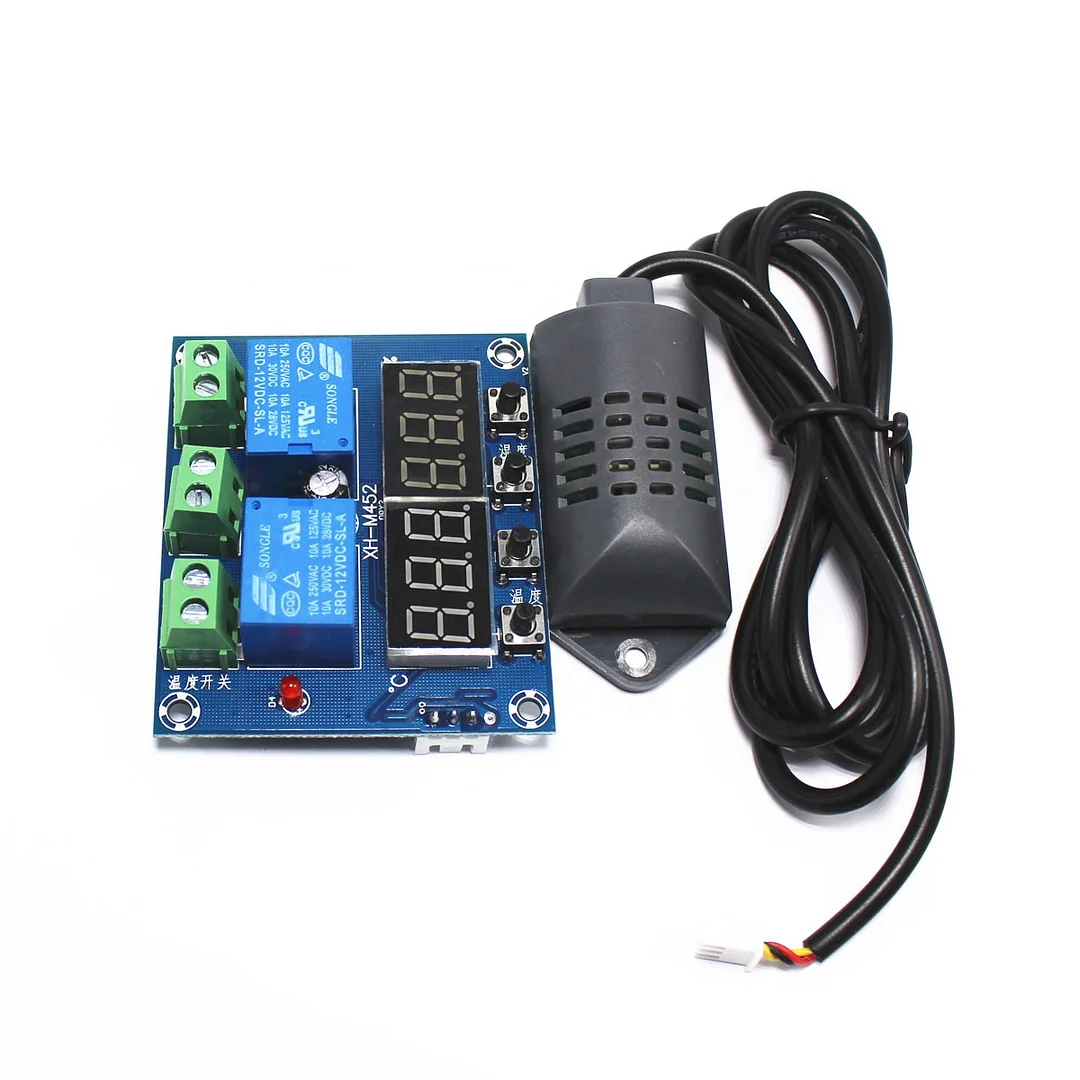

XH-M452 Digital Temperature and Humidity 12vdc Controller is capable of maintaining humidity and temperature. The module works at 12VDC power. Module has separte 220VAC 10A Relay outputs for Heater and Humidity Generator (External Fan, and Humidifier)
Product Paramenters
Product Name
|
Temperature and Humidity Controller
|
Temperature range
|
-20 ° C ~ 60 ° C
|
Humidity range
|
0%~100%RH
|
Control accuracy
|
0.1 °C 0.1% RH
|
Detection probe
|
integrated sensor
|
Output type
|
relay output
|
Output capacity
|
up to 10A
|
Net weight
|
about 69g (including sensor)
|
Appearance size
|
65*55*28mm
|
Product model
|
XH-M452
|
Supply voltage
|
DC12V
|
Applications
* Indoor Room Temperature and Humidity Control
* Humidity and Temperature controller for Controlled Temperature sheds
* Food and Beverage temperature and Humidity controller
* Temperature and Humidity controller for Health Care applications
* Temperature and Humidity controller for Incubators
* Humidity and Temperature controller for Controlled Temperature sheds
* Food and Beverage temperature and Humidity controller
* Temperature and Humidity controller for Health Care applications
* Temperature and Humidity controller for Incubators
Installation Instructions
Temperature control
1. Set the temperature + :Normal display mode, long press the + key for 3 seconds, start temperature numerical flashing, press the + / – key setting values, wrong operation after 5 seconds, automatically return to detect temperature display
2. Set the temperature – :Normal display mode, long press – button for 3 seconds, stop numerical flashing temperature, press the + / – key set value
3. Restore the factory Settings :At the same time long press temperature, and humidity + key for 3 seconds, digital display, 888, 888
Humidity Control
Set to start humidity: long press the + key, start the humidity value flashing, set by + / – key launch humidity value
Set stop humidity: long press – to stop humidity value, set by + / – key to stop the humidity value
Fault code: display LLL mean the sensor fault
display HHH mean Test temperature exceed the range of measurement
1. Set the temperature + :Normal display mode, long press the + key for 3 seconds, start temperature numerical flashing, press the + / – key setting values, wrong operation after 5 seconds, automatically return to detect temperature display
2. Set the temperature – :Normal display mode, long press – button for 3 seconds, stop numerical flashing temperature, press the + / – key set value
3. Restore the factory Settings :At the same time long press temperature, and humidity + key for 3 seconds, digital display, 888, 888
Set the start temperature:Long press the + key, start the flashing temperature, set start temperature by + / – key
set Stop temperature: long press – button, stop flashing temperature, set stop temperature by + / – key
set Stop temperature: long press – button, stop flashing temperature, set stop temperature by + / – key
Humidity Control
Set to start humidity: long press the + key, start the humidity value flashing, set by + / – key launch humidity value
Set stop humidity: long press – to stop humidity value, set by + / – key to stop the humidity value
Fault code: display LLL mean the sensor fault
display HHH mean Test temperature exceed the range of measurement
