Description
Product Description
Product Name

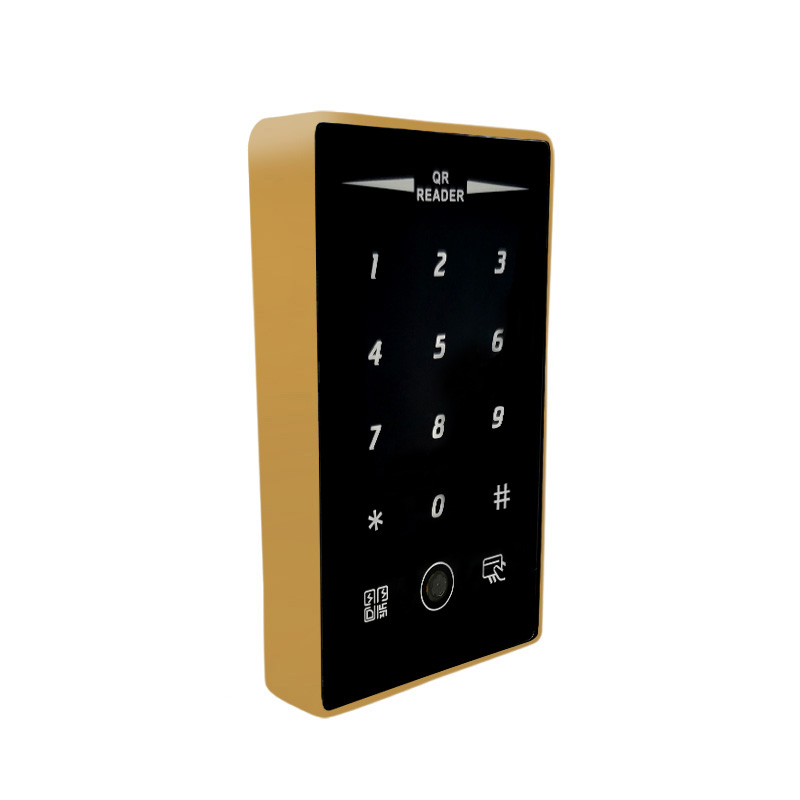

Qr code independent access control
Material
Metal/toughened glass
Storage capacity
10000
Opening mode
Swipe the card/password/QR code
Keyboard type
Touch
color
Black/Gold/Silver
External card reader
Support
External electronic lock
Support
External doorbell
Support
External door switch
Support
Power input
DC12V
Product performance description
Using epoxy resin waterproof process, can play a good protection circuit board from rain, suitable for outdoor wall installation, 10000 users large capacity, high sensitivity two-dimensional code, remote response Support password door opening Supports QR code scanning to open doors Support card open door Built-in doorbell key
Details Images
The back uses epoxy resin to wrap all electronic components, prevent rain, moisture and other damage, prolong the service life
Front use HD tempered glass panel, scratch and scratch proof, internal independent keyboard indicator light, each key independent control, keyboard digital screen printing, never fuzzy
Aluminum alloy metal body, anti-corrosion, anti-rust Electroplating process, no paint off, no discoloration, long - term use
Product Usage
Product usage introduction
Cut holes on the selected wall, fix the rear cover of the controller to the wall with expansion screws, and connect the electromagnetic lock, door opening button, and 12V power supply After connection Enter the administrator password according to the instruction manual, add user functions, add user card, add QR code After the setting is complete, it works normally
Description of product use effect
Product support swipe card, password, scanning QR code to open the door According to the use of custom unlocking time, 0-99 seconds delay When the delay time after opening the door, after closing the door automatically lock When the delay is set to 99 seconds, another mode is triggered, swipe the door open, swipe the card again to close the door
