Description

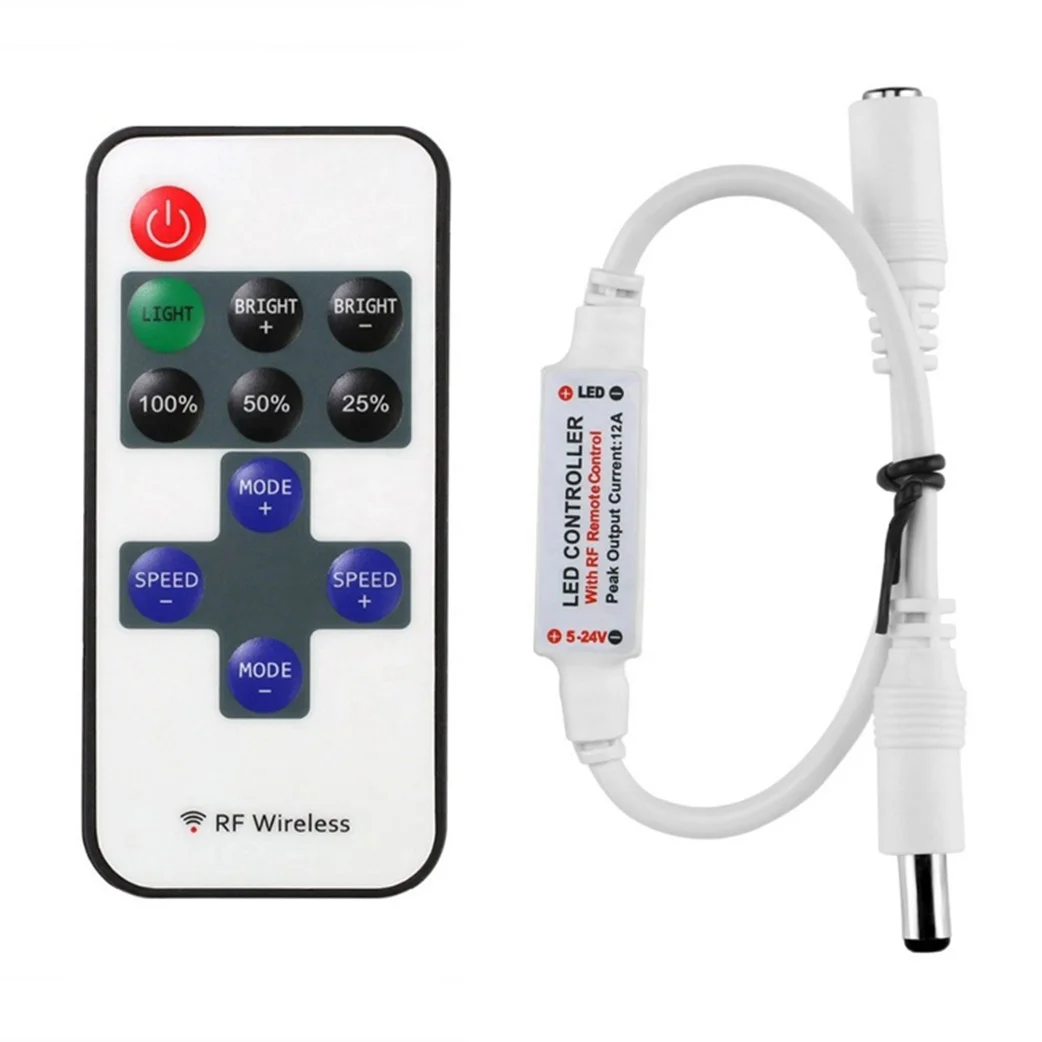

12V Infrared LED Dimmer LED Strip RF Controller Monochrome LED Lamp Infrared Remote Control with RF Wireless DC Head
Product Description
Dynamic effects: 8 kinds Dynamic Speed Level: Level 10 Lighting brightness level: 10 PWM control stages: 256 stages Gradual dimming effect: yes Working voltage: DC 5~24V Output current: peak 12A Remote control working mode: RF wireless remote control Remote control working frequency: 433.92MHz Remote control distance: more than 15 meters in open area
Specification
item
value
Key
11 button
Interface
with DC head / black and red line / RGB DC4pin
Product use
Control the brightness of monochrome light strips
10/11. Brightness adjustment Adjust lighting brightness. Press BRIGHT+ to increase the brightness, press BRIGHT- to decrease the brightness. Installation Notes 1. Local power supply The working voltage of this machine is DC 5V~24V, and the polarity of the power lead is red, positive, black and negative. Please select an appropriate power supply specification according to the voltage and current requirements of the LED. 2. LED output The polarity of the output leads of this machine is red positive, black and negative, and the maximum output peak current is 12A. Please reduce the load when the heat generation is large. Attention! Do not short-circuit the LED output signal, otherwise the machine will be damaged!
