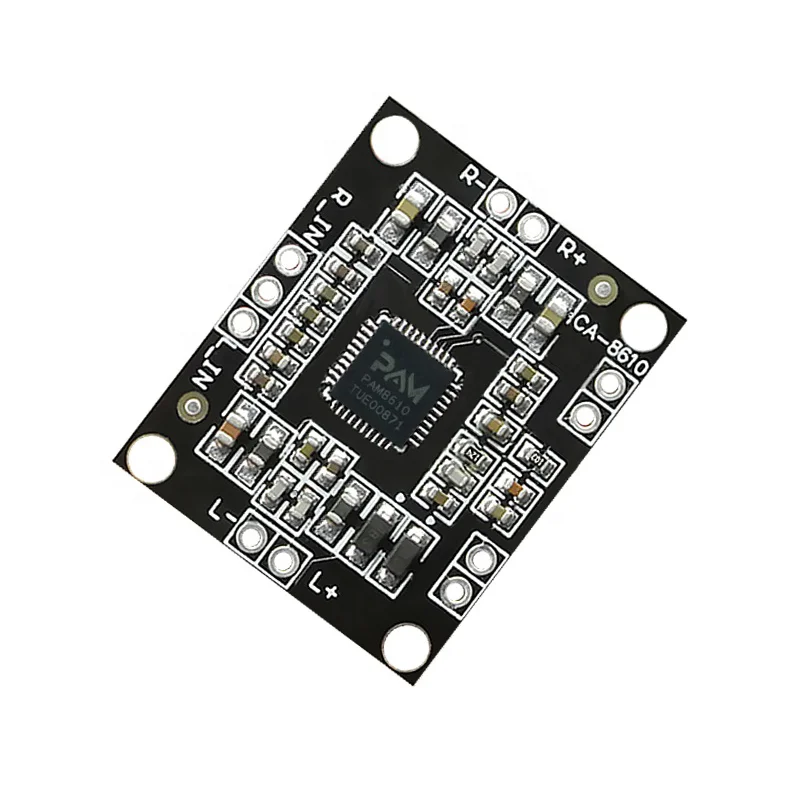

PAM8610 LED TV amplifier power module 2x15W stereo Class D Class 12V high power digital audio amplifier board
12V digital power amplifier PAM8610 dual channel power amplifier board 15W*2 Product name: Audio amplifier board Specification Model: CA-8610 Working mode: Class D (PWM modulation) Chip selection: PAM8610 Recommended voltage: DC 12V 2A Heat dissipation volume: no need for heat dissipation Appearance size: 30*30*2.5 Output power: 10W*2 (8Q) 15W*2 (4Q) Frequency response: 20HZ-15KHZ Channel type: dual channel Quiescent current: 20MA (at DC12V) Signal to noise ratio: 90% Recommended speakers: 10-100w Input impedance: 15K Output impedance: 4-8Q Harmonic distortion: <0.1% Net weight: 3g
The power amplifier board is designed with the official standard circuit. The chip selection uses the original Longding Micro Class D power amplifier chip imported from the United States. It has ultra-high efficiency and large power. It can output 10W+10W under the condition of 12V power supply. Power, the chip does not need a heat sink, and it also has protection functions such as overheating and overcurrent The output part adopts LC low-pass filter circuit, which effectively suppresses high-frequency noise and spike interference on the signal line, and greatly enhances the anti-interference ability of the circuit. Some interference sources (such as mobile phones) close to the power amplifier board will not have any Interference
