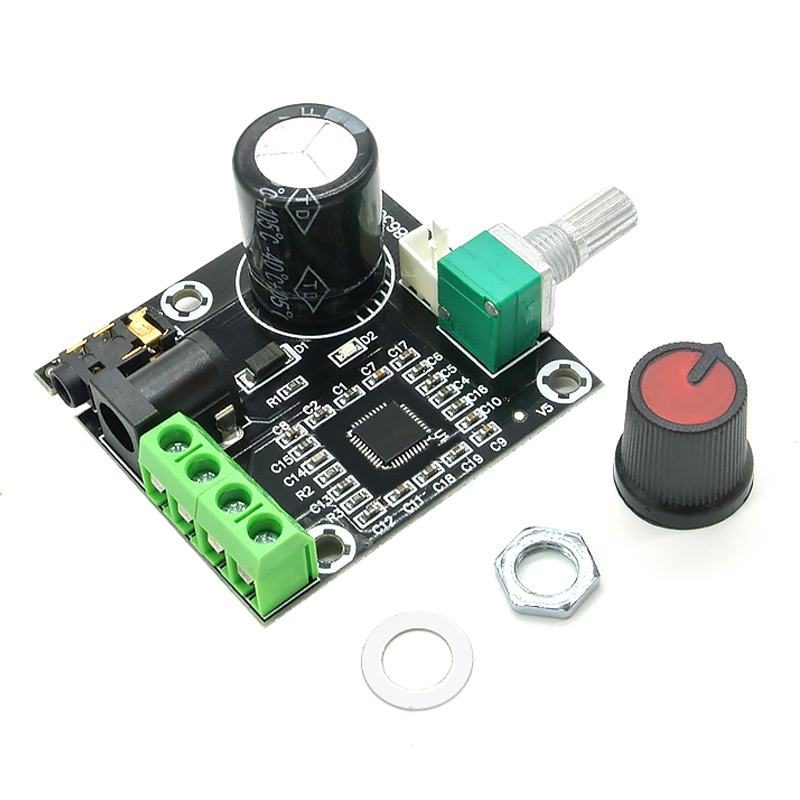

12V Mini Hi-Fi PAM8610 Audio Stereo Amplifier Board 2X10W Dual Channel D Class Module
Introduction:
The power amplifier circuit board designed using the official standard, the chip uses aselection of US imports original micro Class D amplifier chip.Good product chip is necessary and the majority of music lovers to share, this is our consistent philosophy! Theamplifier with ultra-high efficiency, large power, in the case of 12V power supply can output 10W + 10W of power, the chip without fins, but also with overheating, over-currentprotection function, the function can be said to be very powerful.
The amplifier board is still difficult to drive two 15W speakers, high efficiency Class Damplifier board pure is not blown out, the most suitable for small rooms listening to music use. You need to use a large heat sink when using Spike TDA2030 amplifier chip board,TDA2030 (15w + 15W) This traditional 15W amplifier board to drive two speakers, andhigh-efficiency Class D PAM8610 pure amplifier board need only drive two 15W speakers
Use a small heat sink, high efficiency super power, the sound quality is great.
Modification:
1.PAM8610 chip as amplifier chip, power can reach 10W + 10w. 2.As pure class D amplifier board power requirements is relatively high, the exclusive useof the power amplifier board enthusiast 2200UF capacitor filter, the elimination of exchange voice, without interference, pure sound quality. 3.Using automatic placement machine production, the board is more beautiful. 4.Strip 5.5X2.5 standard power outlet, power input is very convenient. (Positive outsideand negative inside)
Technical Parameters:
1.Power: typically 10w 2.Voltage: DC 8V-12v 3.Can drive speakers: 10W-15W,4 -8Ω
Model
|
PAM8610
|
||||||
Voltage
|
DC 8V-12v
|
||||||
Can drive speakers
|
10W-15W,4 -8Ω
|
