Description

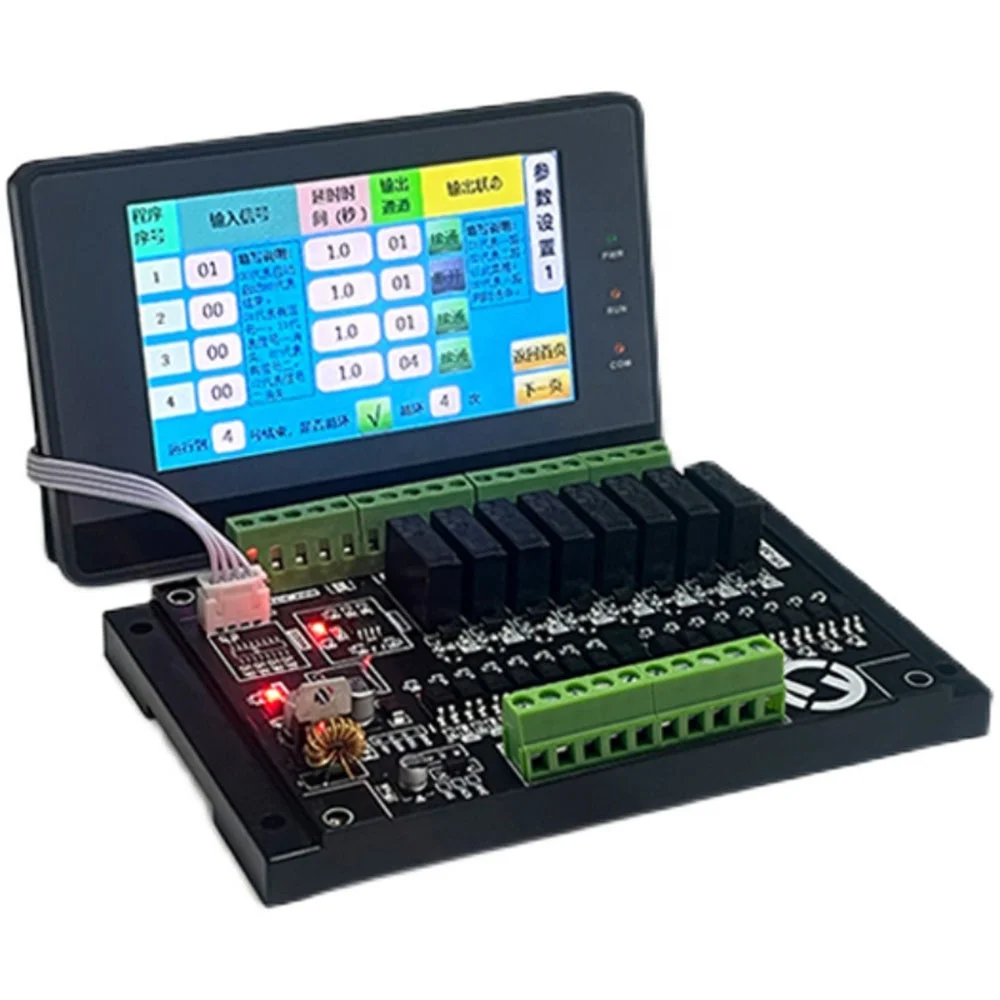

12V 24V RS485 RS232 Serial Modbus RTU PLC Programmable Delay Relay Module 8CH IO Trigger Switch Board with Display
Product Description
PLC controller without computer programming:
The entire programming process does not require computer programming. Without programming instructions, you only need to fill in the corresponding input signal and delay time on/off parameters of the output device on the screen according to the action flow sequence of the device, so that multiple controlled devices can be controlled according to the preset. The programmed program runs automatically.
Specification
item
value
Place of Origin
China
Guangdong
Model Number
modbus rtu relay board
Theory
Time Relay
Usage
AUTO
Size
145*91*40mm
Protect Feature
Sealed
Contact Load
Low Power
Input voltage
DC12/24V optional
Screen size
4.3 inch
Working environment
-20℃~+50℃
Control mode
manual/automatic/delay/cycle
Output current
5A
Time accuracy
0.1s
Baud rate
9600
Time range
0.1 seconds ~ 999.9 minutes
Communication method
Modbus-RTU protocol/RS232
Work commands
1~40 groups can be set freely
Picture details
