Description

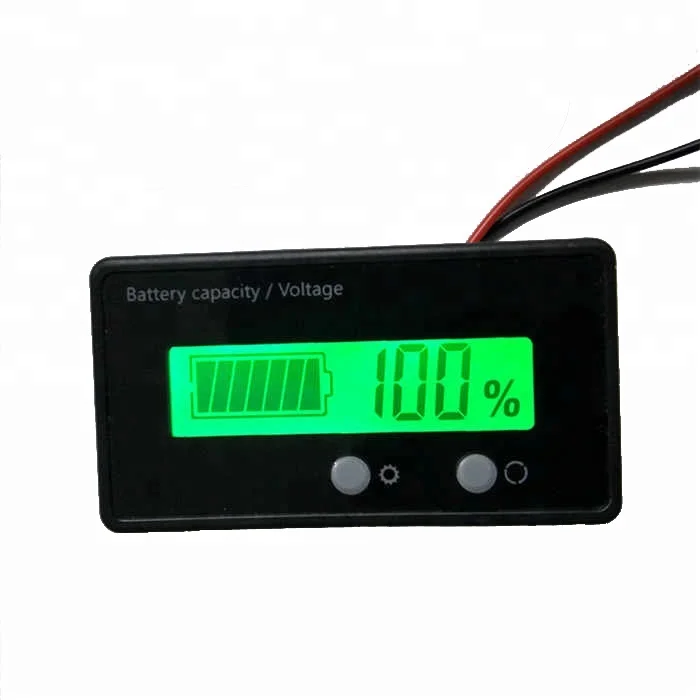

12V 24V 36V 48V Lead-acid Charging Indicator Battery Level Indicator Meter Gauge Capacity Voltage Level Indicator
Product Description
The following batteryspecifications support self-setting
|
Applicable battery type
|
||||||||||
|
Type of battery
|
Setting code
|
Type of battery
|
Setting code
|
Type of battery
|
Setting code
|
|||||
|
Lead-acid batteries
|
P
|
Lithium battery
|
L
|
Li iron phosphate battery
|
F
|
|||||
|
Type of battery
|
Battery range
|
||||||||||
|
Lead-acid batteries
|
12V 24V 36V 48V
|
||||||||||
|
Lithium battery
|
3strings 4strings 5strings 6strings ......15strings 16strings 17strings
|
||||||||||
|
Lithium iron phosphate battery
|
3strings 4strings 5strings 6strings 7strings ......14strings 15strings 16strings
|
||||||||||
Specification
|
Performance parameters
|
Min
|
Typ
|
Max
|
Unit
|
|
Working voltage
|
6.0
|
12.0
|
63.0
|
VDC
|
|
Working power consumption (LCD display,backlight on)
|
3.0
|
4.0
|
5.0
|
mA
|
|
Standby power consumption (LCD display, backlight off)
|
80
|
100
|
120
|
uA
|
|
Sleep power consumption (LCD does not display,backlight off)
|
8
|
10
|
30
|
uA
|
|
Accuracy of power
|
/
|
±1.0
|
±2.0
|
%
|
|
Accuracy of Voltage
|
/
|
±0.5
|
±1.0
|
%
|
|
Using environment
|
-10
|
25
|
+50
|
℃
|
Installation Instructions
The setting procedure
1. Disconnect the power supply of the electric quantity display module,press and hold the setting button, release the setting button after the power supply is connected to theele ctric quantity module,and display the current setting parameters of the electric quantity on the display screen;
2. Press the setting buttonto select the battery specification P/L/F(P=12V lead-acid,L= 3.7V lithium battery, F= 3.2v lithium iron phosphate battery);
3. Press the function key to set the number of battery strings,press the function keys and the setting keys to select the number of batteries in series up or down;
4. Press function key to enter advanced setting interface, use setting key to select S1-S5, confirm key to select or cancel
selected mode;
5. After the setting is completed,the power is turned on again,and the power automaticall- y saves the setting data;
For Example: 10 series of lithium battery power, power percentage and voltage are autom- atically displayed in rotation after opening (S1 mode)Operation: Disconnect the power of the display module, press and hold the setting button, and then turn on the power module. Press the setup button shortly to select L, press the function button to select 10, and press the function button to select S1.and then connect power again.
2. Press the setting buttonto select the battery specification P/L/F(P=12V lead-acid,L= 3.7V lithium battery, F= 3.2v lithium iron phosphate battery);
3. Press the function key to set the number of battery strings,press the function keys and the setting keys to select the number of batteries in series up or down;
4. Press function key to enter advanced setting interface, use setting key to select S1-S5, confirm key to select or cancel
selected mode;
5. After the setting is completed,the power is turned on again,and the power automaticall- y saves the setting data;
For Example: 10 series of lithium battery power, power percentage and voltage are autom- atically displayed in rotation after opening (S1 mode)Operation: Disconnect the power of the display module, press and hold the setting button, and then turn on the power module. Press the setup button shortly to select L, press the function button to select 10, and press the function button to select S1.and then connect power again.
Details Images
