Description

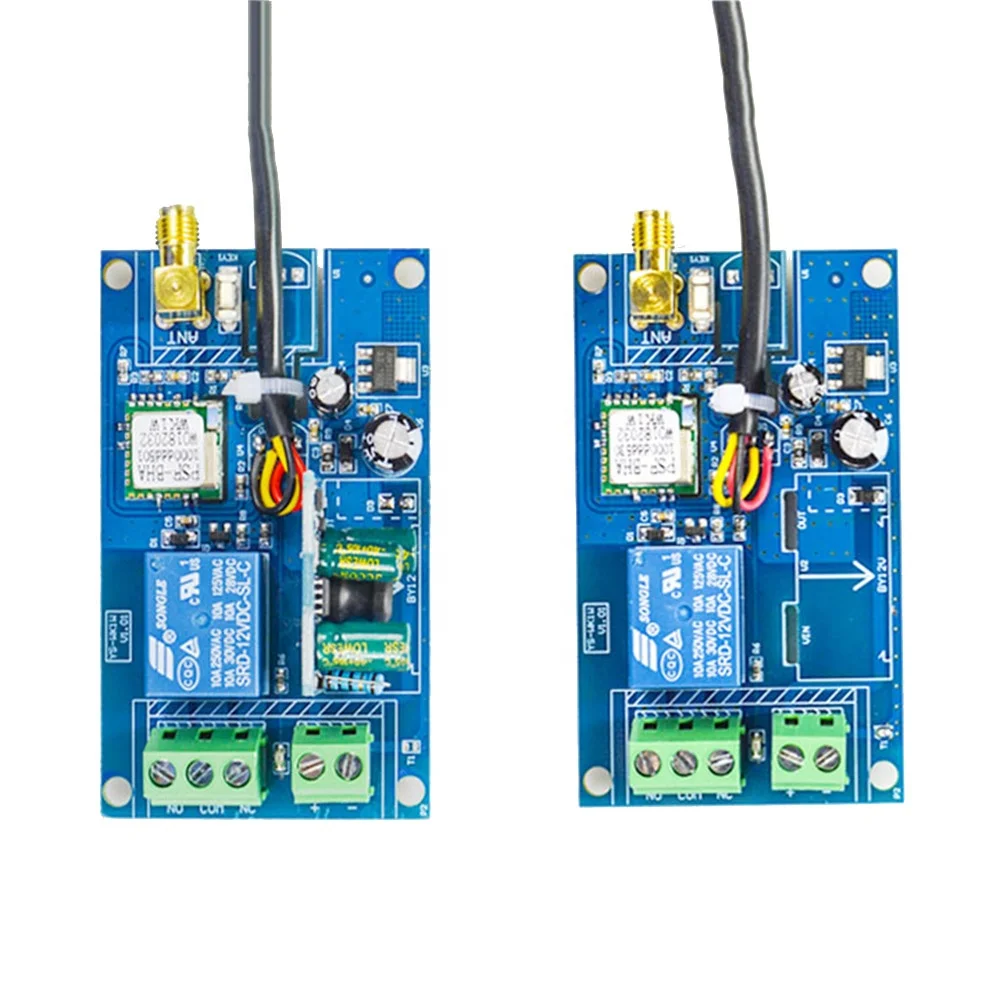

12V / 220V Ewelink Mobile Phone WIFI Temp Controller Wireless Remote Control Thermostat Temperature Controller Relay
Product Description
1. Support Android and Apple mobile phone control 2. It can be timed, cycled, work every day, and delay. The minimum unit is minutes. (Up to 8 sets of timing) 3. An unlimited number of devices can be added to 1 mobile phone, and 1 device can be shared with 20 mobile phones. 4. As long as you connect to wifi to access the Internet, mobile phones across the country can control the Internet, and can also control mobile phone traffic. 5. Support to control 0-250V voltage 8A current, about 1500w power, covering 90% of household appliances and equipment 6. The wiring adopts standard industrial control terminals and industrial control plastic shell 7. 1.6MM thickness PCB board, industrial-grade SMD production process, not small batch manual welding 8. The eWelink APP is free to use, without any annual fee or monthly SMS fee
Specification
|
item
|
value
|
|
Product name
|
wifi intelligent temperature control switch
|
|
APP software name
|
eWelink
|
|
Product specifications
|
82*50*32mm
|
|
Antenna length
|
10cm
|
|
Working voltage
|
DC 12V or AC 110-250V (select different packages)
|
|
Output port
|
normally open normally closed mechanical switch output port
|
|
Port withstand voltage
|
AC 0-250V 8A, about 1500w; DC 0-30v 8A, use within about 200W (resistive load)
|
|
Control method
|
wifi network control, support 2G/3G/4G mobile phone traffic network control
|
|
Working mode
|
self-locking, jog, timing switch, delay switch
|
|
Number of timers
|
8 groups of timing
|
|
Use environment
|
support Android, Apple, mobile phone control
|
|
Router compatible frequency
|
2.4G (5G routers are not supported, such as dual-band routers need to turn off 5G and restart the router)
|
|
Support third-party platforms
|
Mijia, Tmall Genie, Xiaodu, Fluorite camera.
|
|
Temperature sensor cable length
|
about 1 meter
|
|
Sensor temperature range
|
-50 to 80°C
|
|
Temperature measurement accuracy
|
0.1℃
|
Installation Instructions
Product network matching and testing process
1. Log in to the home wifi router with your mobile phone, download the "eWelink" software from the mobile application market, install and register. 2. Connect the 12V power supply to the wifi switch, and the indicator light will flash 2 times and light up (or slow flashing once). 3. For the first time, use the default pairing state in which the indicator light flashes 2 times after power-on. If it flashes slowly, press and hold the pairing button for 7 seconds and then release it to enter the pairing state. 4. Click the + sign at the bottom of the "eWelink" software, then select "Quick add" and click Next. 5. Operate according to the prompts of each step of the mobile phone, and pay attention to verify that the wifi name and password are correct. 6. After the match is added successfully, the button of the device will appear on the main page of the mobile phone. Wait for 1 minute to be online and controllable. 7. After the device is online, click the button to hear a click and the state of the software button changes, indicating that the network has been successfully connected.
Details Images
