12V 20mm Small Coil Wireless Charging Module Components of Wireless Charger XKT510-12 Wireless Power Charging Pad

Wireless Power Charging Pad
$10.12
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description
12V 20mm Small Coil Wireless Charging Module Components of Wireless Charger XKT510-12 Wireless Power Charging Pad
Product Description
This module adopts single-chip wireless power supply circuit design and has the advantages of simple circuit load capacity and so on.
Specification
item
value
Input voltage
5V~12V
Transmitter module operating current
200mA
No-load current of the transmitting module
about 40mA at 12V, about 30mA at 9V
Transmitter module size
11mm*17mm
Transmitting coil
outer diameter 21mm inner diameter 10mm inductance 20uH
Receive voltage regulator
5mm*28mm*2.7mm
Receiving coil
outer diameter 21mm inner diameter 10mm inductance 20uH

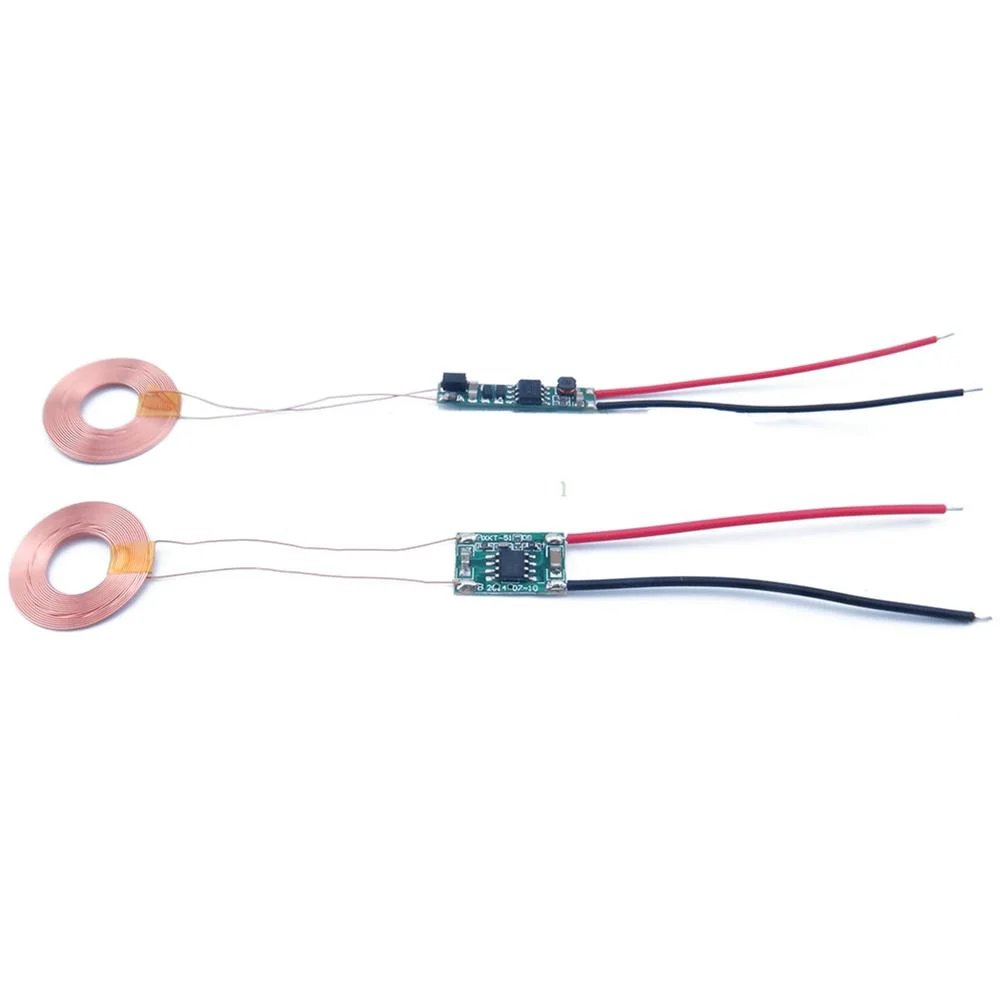

Details Images
