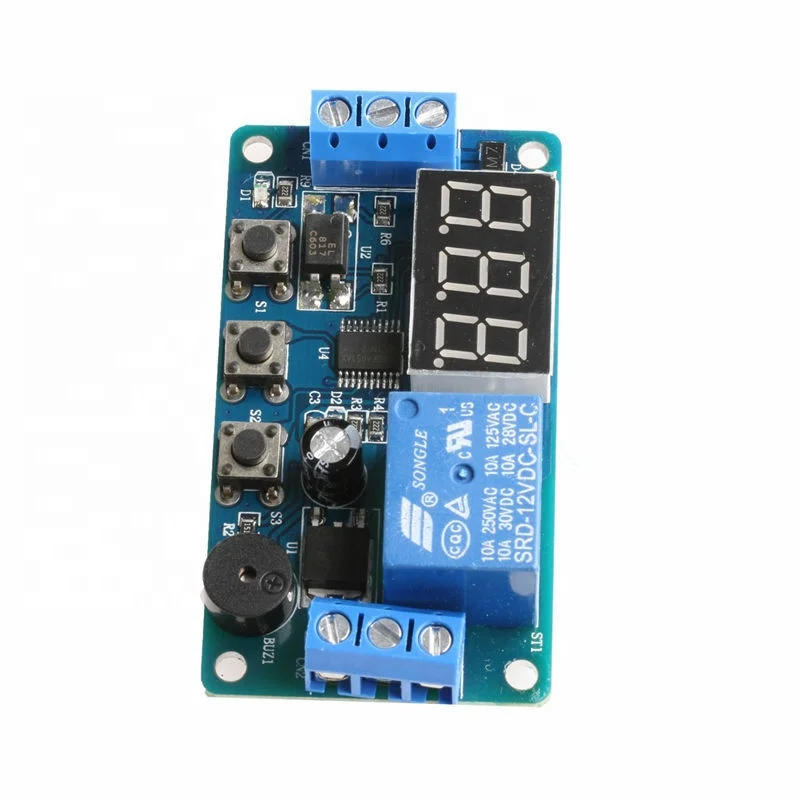

12V 1 Way Digital Display Programmable Time Delay Relay Cycle Timing Circuit Switch Delay On off Relay with Buzzer
Product Description
p-1: When the trigger signal is received, the relay is turned on, the timer expires, and the relay is turned off. a1: Invalid again during delayed trigger a2: During the retiming delay trigger a3: Delay triggering again during the termination of the timer relay reset p-2: Receive trigger signal, X start time, count relay end, Y start time, count relay end p-3: Cycle switching mode a1: After turning on the power relay, the timing ends, an infinite loop. a2: After the power relay is turned off, the timing ends, an infinite loop.
Feature
S1: Power on, press S1 for 2 seconds to enter the mode selection menu, press S1, select P-1 ~ P-4 mode. S2: OK / Shift key: Press to adjust the LED flashing position, which LED flashes, S3 adjusts the value of the digital tube flashing. Before pressing S2, the number no longer flashes. S3: The digital display flashes, and the S3 adjustment number changes from 0 to 9. Normal digital tube display, S3 adjusts the position of the decimal point, the decimal point in the ones place means 0 to 999 seconds; in the tens place, it means 0 to 99.9 seconds; no decimal point means 0 to 999 minutes.
Model description
P-1 mode: long press S1 for 2 seconds to enter the mode selection menu, press S1, select P-1, press S2 OK; press S1 and automatically jump to the menu selection function (A1 A2 A3 is optional), press S2 OK; automatic Jump to set the time, press S3 to adjust the decimal point position, automatically jump press S2 OK LED flashes, press S3 to adjust the flashing number to continuously change from 0-9, press S2 to determine the operating sequence until the flashing stops and the setting is fixed. P-2 mode: Long press S1 for 2 seconds to enter the mode selection menu, press S1, select P-2, press S2 OK; automatically jump to the [OFF time] setting, press S3 to adjust the decimal point position, automatically jump press S2 OK to rotate LED blinks, press S3 to adjust the blinking number to continuously change from 0-9, press S2 to determine the operation sequence, until the blinking stops and the green light is on; jump to the time set by [ON], press S3 to adjust the decimal point position, press S2 after automatic jump OK, the LED flashes, press S3 to adjust the flashing number to continuously change from 0 to 9, and press S2 to determine the operation sequence until the flashing stops and the setting is over. P-3 mode: long press S1 for 2 seconds to enter the mode selection menu, press S1, select P-3, press S2 OK; press S1 and then automatically jump to the menu selection function (A1 A2 is optional), press OK S2; automatically skip Go to the [OFF time] setting, press S3 to adjust the decimal point position, automatically jump press S2 OK LED flashes, press S3 to adjust the flashing number to continuously change from 0-9, press S2 to determine the operating sequence until the flashing stops and the green light is on; skip to [On] Set the time, press S3 to adjust the position of the decimal point, automatically skip S2 OK LED flashes, press S3 to adjust the flashing number to continuously change from 0-9, press S2 to determine the operating sequence until the flashing stops and the setting ends. P-4 mode: Long press S1 for 2 seconds to enter the mode selection menu, press S1, select P-4, press S2 OK; automatically jump to set the time, press S3 to adjust the decimal point position, press S2 to automatically jump to OK, the number flashes , Press S3 to adjust the blinking number to continuously change from 0-9, press S2 to confirm the operation sequence, until the blinking stops, the setting is over.
Specification
|
item
|
value
|
|
Working voltage
|
DC12V (Normal working voltage DC10V～16V)
|
|
Source High level
|
DC4V～20V (the common power button, PNP sensor, PLC signal, etc. are being triggered)
|
|
Output capacity
|
Can control DC or AC 220v5a within 30v5A
|
|
Quiescent current
|
20mA
|
|
Working current
|
50mA
|
|
Life
|
More than 10 million times;
|
|
Working temperature
|
-40～85℃;
|
|
Weight
|
about 26g
|
|
Size
|
64.2mm*34.8mm*18.5mm
|
|
Features
|
Anti-reverse voltage input circuit, worry-free wiring. The signal input is isolated by optocoupler, with strong anti-interference ability. Set the parameters of the power supply and permanent storage. Powerful flash MCU online programming function, you can contact the manufacturer to customize the function according to user needs.
|
