Vehicle no-stop toll management (car parking lot)
Logistics and warehouse management
Production flew-line management
Animals' recording management
Products anti-counterfeiting detection
Other field:
Club management
Library management
School and factory access control
Attendance management and more
Description
General Description:

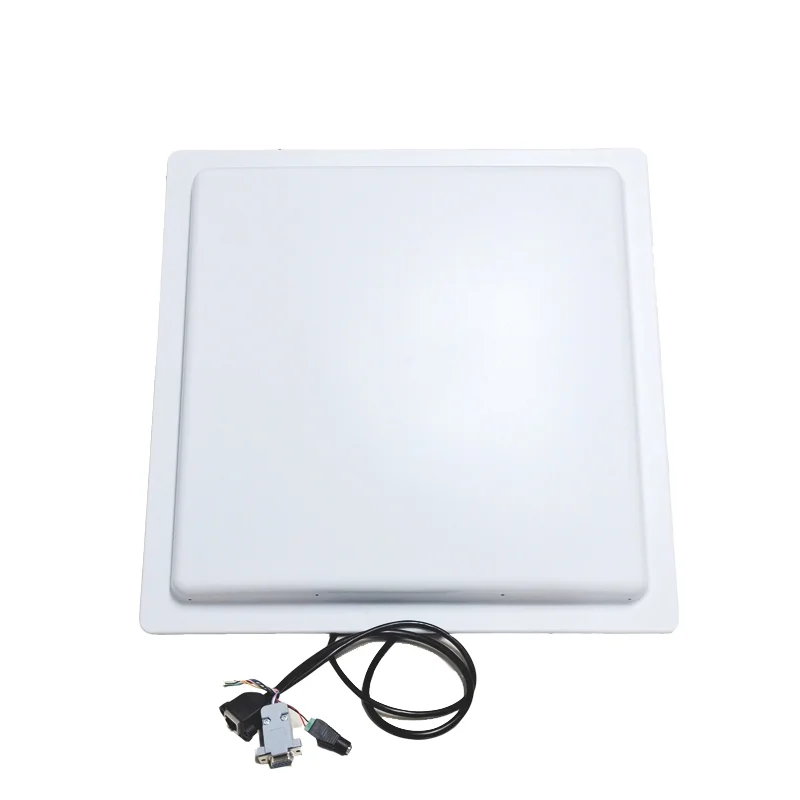

It is a high performance M100 UHF Super Long range integrated reader. It is designed upon fully self-intellectual property. Based on efficient DSP algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
It is a high performance M100 UHF Super Long range integrated reader. It is designed upon fully self-intellectual property. Based on efficient DSP algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
Application:
Features:
1. Base on M100 Read/Write Chip;
2. Support ISO18000-6C (EPC C1G2) protocol tag;
3. 86 5~868MHz, 902~928MHz frequency band (frequency customization optional by Soft);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 26dBm (adjustable);
6. 12dBi Linear antenna with effect distance up to 0m~25m*;
7. Support active mode, answer mode, trigger-activating and password work mode;
8. Low power dissipation with single +12V DC power supply;
9. Support RS232, RS485, Wiegand interface, Relay, USB, RJ45, WIFI, POE,4G;
10. One Relay (Optional) can control Beep, Motor, Light.
11. Support ModBus (only RS232, RS485, RJ45 interface).
1. Base on M100 Read/Write Chip;
2. Support ISO18000-6C (EPC C1G2) protocol tag;
3. 86 5~868MHz, 902~928MHz frequency band (frequency customization optional by Soft);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 26dBm (adjustable);
6. 12dBi Linear antenna with effect distance up to 0m~25m*;
7. Support active mode, answer mode, trigger-activating and password work mode;
8. Low power dissipation with single +12V DC power supply;
9. Support RS232, RS485, Wiegand interface, Relay, USB, RJ45, WIFI, POE,4G;
10. One Relay (Optional) can control Beep, Motor, Light.
11. Support ModBus (only RS232, RS485, RJ45 interface).
Product mode explanation:
|
Model
|
Interface
|
|
|
SW6912
|
Standard(RS232, RS485, Wiegand,Trigger)
|
|
|
SW6912T
|
Standard with RJ45
|
|
|
SW6912W
|
Standard with WIFI
|
|
|
SW6912TW
|
Standard with RJ45 and WIFI
|
|
|
SW6912TP
|
Standard with RJ45 and POE
|
|
|
SW6912TPW
|
Standard with RJ45 and POE and WIFI
|
|
|
SW6912R
|
Standard with Relay
|
|
|
SW6912U
|
Standard with USB(HID & Keyboard)
|
|
|
SW6912G
|
Standard with 4G
|
|
|
-T: RJ45 -W:WIFI -P:POE –R: Relay –U:USB –G: 4G
|
||
Product Technical Parameters
|
Type
|
||
|
Model Number
|
SW6912TP
|
|
|
Type
|
High Performance M100 UHF Super Long Range Integrated Reader
|
|
|
Physical parameters
|
||
|
Dimensions
|
450x450x70mm
|
|
|
Net Weight
|
4.5Kg
|
|
|
Gross Weight
|
5.0Kg
|
|
|
Package size
|
60*48*11cm
|
|
|
Shell material
|
ABS
|
|
|
Color
|
Gray White
|
|
|
Environmental parameters
|
||
|
Operation Temperature
|
-20~+60℃
|
|
|
Storage Temperature
|
-40~+85℃
|
|
|
Humidity
|
5%～95% RH, Non-condensing
|
|
|
Waterproof Rank
|
IP65
|
|
|
Performance
|
||
|
Frequency
|
902~928MHz,860~868MHz(frequency customization optional)
|
|
|
Ant.
|
12 dBi Linear polarization antenna
|
|
|
RF Power
|
0 - 26dBm
|
|
|
Read Distance *
|
0-25m * Effective distance depends on antenna, tag and environment.
|
|
|
Write Distance *
|
0-12m * Effective distance depends on antenna, tag and environment.
|
|
|
Read Rate
|
400cnt / second
|
|
|
Read Type
|
ISO18000-6C（EPC Gen2）
|
|
|
Reading Prompt
|
Buzzer
|
|
|
Working Voltage
|
DC +9 - 24V, 12W
|
|
|
Work Mode
|
Active mode, Answer mode, Trigger mod, Password mode
|
|
|
Communication
|
RS232, RS485, WG26, WG34, Trigger,
Relay(Optional), RJ45(Optional), WIFI(Optional), POE(Optional),USB(Optional),4G(Optional) |
|
|
Net
|
RJ45 support TCP Client/Server, Modbus, DNS, DHCP.
WIFI support TCP Client. 4G support TCP Client. HTTP Protocol(Optional), MQTT(Optional), LLRP(Optional) |
|
|
SDK
|
||
|
SDK
|
Support X86 & X64, C++, C#, VB, Delphi, Linux, ARM, Python, NodeJS, QT, JAVA, Android.
|
|
Download file:
ReaderSoft download address:
http://www.mediafire.com/file/nwlvxzxkgxu2g5x/ReaderSoftV3.1.rar/file
SDK download address:
http://www.mediafire.com/file/cvl207a4bg97b90/SW_SDK_V3.1.rar/file
ReaderSoft download address:
http://www.mediafire.com/file/nwlvxzxkgxu2g5x/ReaderSoftV3.1.rar/file
SDK download address:
http://www.mediafire.com/file/cvl207a4bg97b90/SW_SDK_V3.1.rar/file
