Description
Advantages

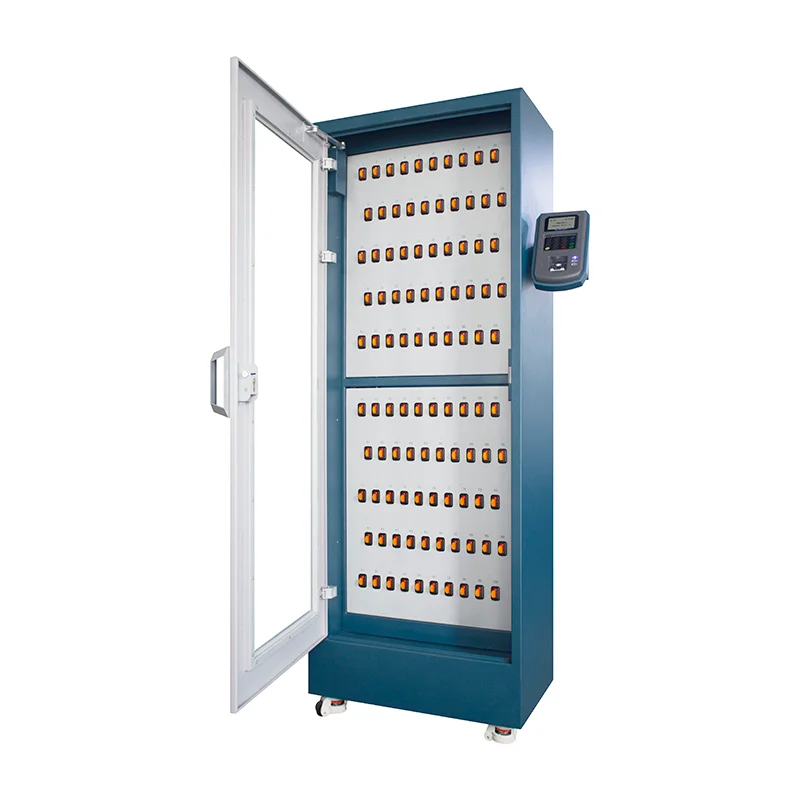

Key Cabinet Intelligent Management System Can Track And Record The Key In Use.
1. Access by fingerprint,password or RFID access card,easy to take and return keys.
2. Authorization management and automatically generate records of pick up,reduce the risk and management costs,improve work efficiency.
3. PMMA glass or steel stainless door to make keys safer.
4. Keys are under control via hardware and software,operate easily with LCD.
5. Integrated with most access control system.
6. Adopt multi-nodes independent CPU and Flash,design-based bus architecture,nice appearance and use less space.
Key Cabinet Intelligent Management System Can Track And Record The Key In Use.
1. Access by fingerprint,password or RFID access card,easy to take and return keys.
2. Authorization management and automatically generate records of pick up,reduce the risk and management costs,improve work efficiency.
3. PMMA glass or steel stainless door to make keys safer.
4. Keys are under control via hardware and software,operate easily with LCD.
5. Integrated with most access control system.
6. Adopt multi-nodes independent CPU and Flash,design-based bus architecture,nice appearance and use less space.
|
Basic Information
|
||||||
|
Product Name
|
Intelligent Key Control Cabinet
|
Model
|
keybox-100
|
|||
|
Shell Material
|
Cold Rolled Steel Plate
|
Steel Thick
|
1.5～2 mm
|
|||
|
Dimensions(mm)
|
850 X 400 X 1820
|
Weight
|
≈ 137Kg
|
|||
|
Network Interface
|
Ethernet * 1
|
Surface Treatment
|
Dusting
|
|||
|
Power Supply
|
AC 100～240V 50 ~ 60Hz
|
Working Voltage
|
DC 12V
|
|||
|
Temperature
|
-20~70℃
|
Humidity
|
<95% RH
|
|||
|
Certificate
|
CE, FCC, RoHS, ISO9001
|
|||||
|
RFID Keys Control
|
||||||
|
RFID KeySlots
|
100
|
Access
|
Fingerprint + Card + Pincode
|
|||
|
Key Locking Method
|
100 pieces of electromagnets
|
Cabinet Door Lock
|
Low power motor lock
|
|||
|
RFID KeyTag Type
|
125KHz(default)
|
User Card Reader
|
125KHz, 13.56MHz(option)
|
|||
|
Finger Recognition
|
≈ 0.6s (1:1)
|
Pincode
|
6 digits
|
|||
|
Management Software
|
||||||
|
Software Stucture
|
Client / Server
|
|||||
|
Operating environment
|
OS: Windows ； Database: MS SQL Server
|
|||||
|
Main Functions
|
(1)System (2) Device(3) User(4)Permission(5)Report(6)Email
|
|||||
|
Customized Server
|
||||||
|
KeySlot number
|
Color / Logo / pattern
|
Package
|
SDK /API
|
|||
Company Profile
|
Q
|
What keys can I store in the i-keybox Smart Key Cabinet?
|
|
A
|
Vehicles, Room, Offices, Safes, Cabient, Equipement, Drawers, Lockers, and so on.
|
|
Q
|
How does the Smart Key Cabinet work?
|
|
A
|
The system is a locked physical cabinet that has individual locks for each key inside.
Staff member accesses key cabinet using a PIN, card reader, or biometric fingerprint scanner.
The system unlocks the specific key(s) the staff member has been given access to.
After use, the staff member returns the key to the cabinet and make any necessary reports into the system The system administrator has real-time data on which keys or equipment are signed out by whom and can access a full history of every transaction made. |
|
Q
|
Where is the data stored?
|
|
A
|
Server (PC) + Local Memory
|
|
Q
|
What if request for login using staff card like EM, Mifare, HID etc?
|
|
A
|
The Smart Key Cabinet supports to be login using ID card(125KHz EM) and IC card(13.56MHz, option).
|
|
Q
|
Can you accept customization?
|
|
A
|
Yes, we can offer OEM/ODM service. You can custom every product you want.
|
|
Q
|
How to achieve software integration?
|
|
A
|
We can provide the communication protocol/SDK.
|
