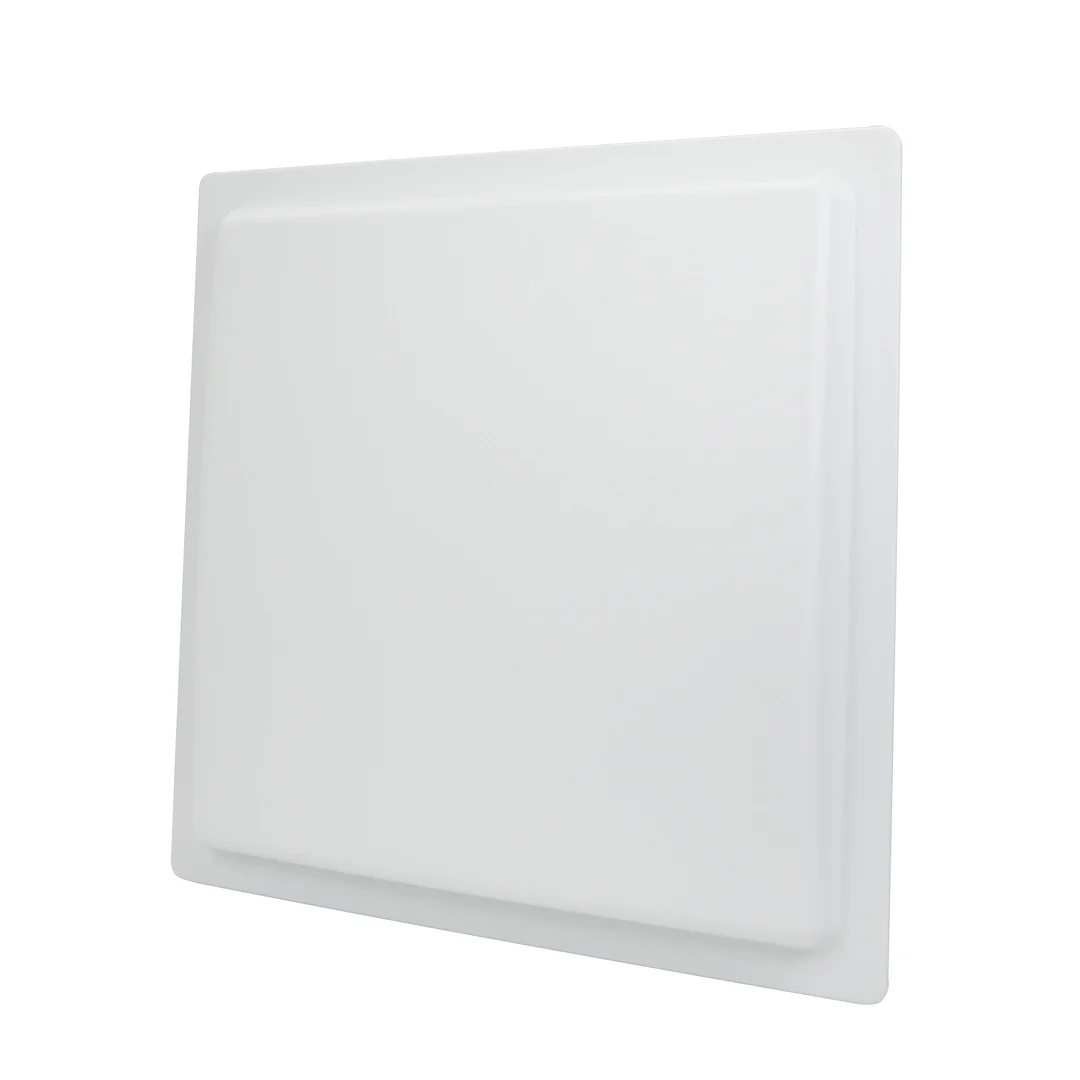

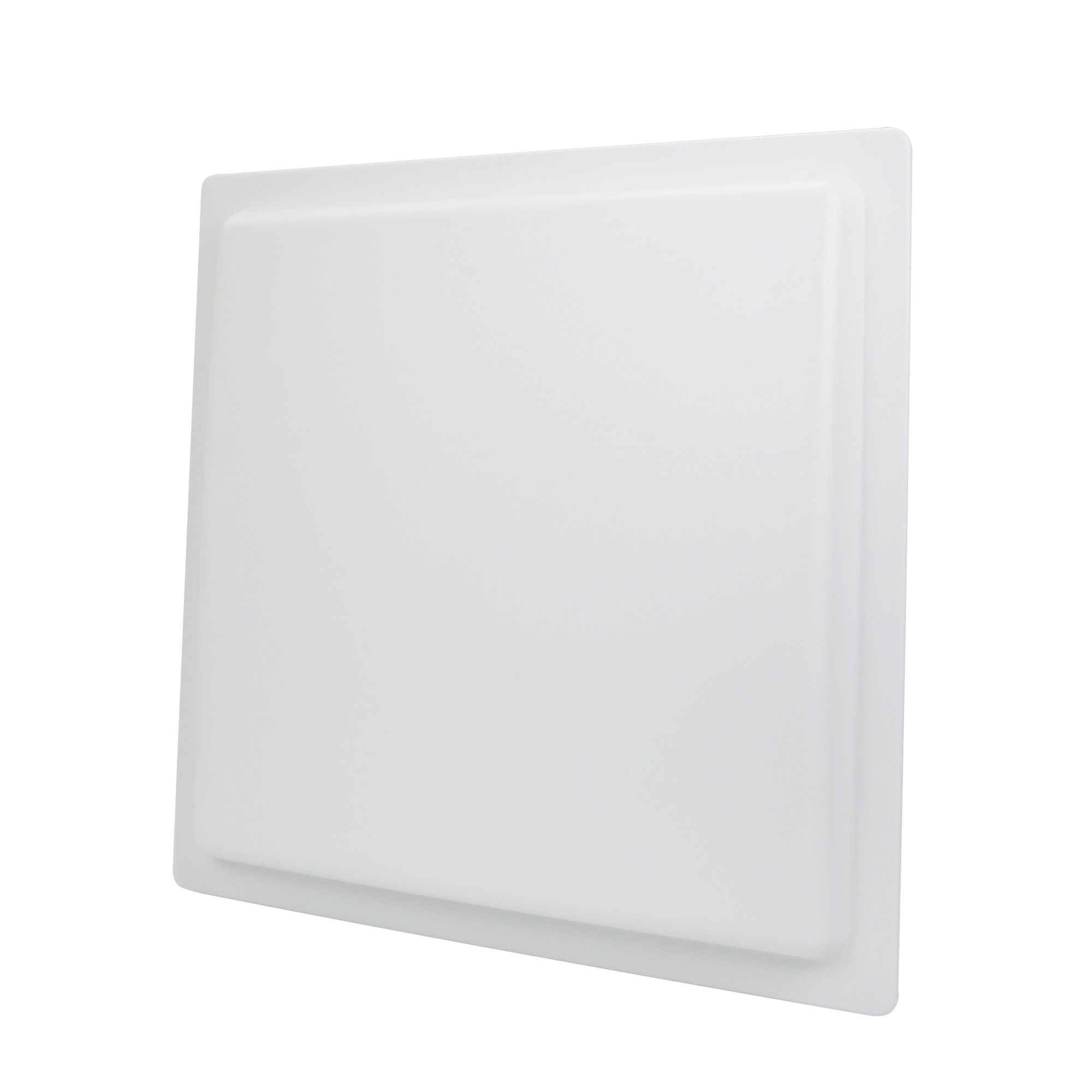

What is the overview of 12 Dbi Antena Rfid N Female Ip65 Rfid 12 Dbi Antenna?
It is a high performance UHF RFID antenna. It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.
What is the technical specification of 12 Dbi Antena Rfid N Female Ip65 Rfid 12 Dbi Antenna?
2. Fast and accurate reading speed, High data security;
3. Integrated or split connection to reader module
4. Long distance;
5. Easy installation;
What is the technical specification of 12 Dbi Antena Rfid N Female Ip65 Rfid 12 Dbi Antenna?
|
12 Dbi Antena Rfid N Female Ip65 Rfid 12 Dbi Antenna |
|
| Electrical Specifications | |
| Frequency Range | 840-940MHz or customized 865-868MHz (EU); US 902-928MHz (US) |
| Bandwidth | 26MHz |
| Gain | 12dbi |
| Horizontal Beam Width | Hor:45° Vert:43° |
| F/B Ratio | > 23 |
| VSWR | <1.21 |
| Impedance | 50Ω |
| Polarization | Circular or linear |
| Max. Power | 200W |
| Connector | N-Female |
| Lightning Protection | DC ground |
| Mechanical Specifications | |
| Dimension | 450*450*40mm |
| Weight | 2Kg |
| Rated Wind Velocity | 60 m/s |
| Reflector Material | Aluminum alloy |
| Radome Material | ABS |
| Operating Temperature | -40~80°C |
| Suitable Pole Diameter | Φ40-Φ75 |
What is the dimension of 12 Dbi Antena Rfid N Female Ip65 Rfid 12 Dbi Antenna?
RFID Products in Other Categories
1. Payment: T/T, Western Union, MoneyGram, PayPal, D/A, D/P.
2. MOQ: 1pcs
3. Warranty : 1 years
Our products have acquired CE, FCC certification and RoHS compliance and NCC, KCC, EK improvement via Taiwan, Korea companies. Our products are with stability, conformity, high performance and competitive price. We have super excellent and experienced R&D team and sales engineer team which are the guarantee to provide our clients with superior products and service as well as OEM/ODM business.
We expect to cooperate with system integrators, strategic partners and product distributors.
