12 24 220V 2 Way Channel Relay Module with Two Touch Buttons Self-locking or Interlock Relay touch switch sensor Relay
Product Description

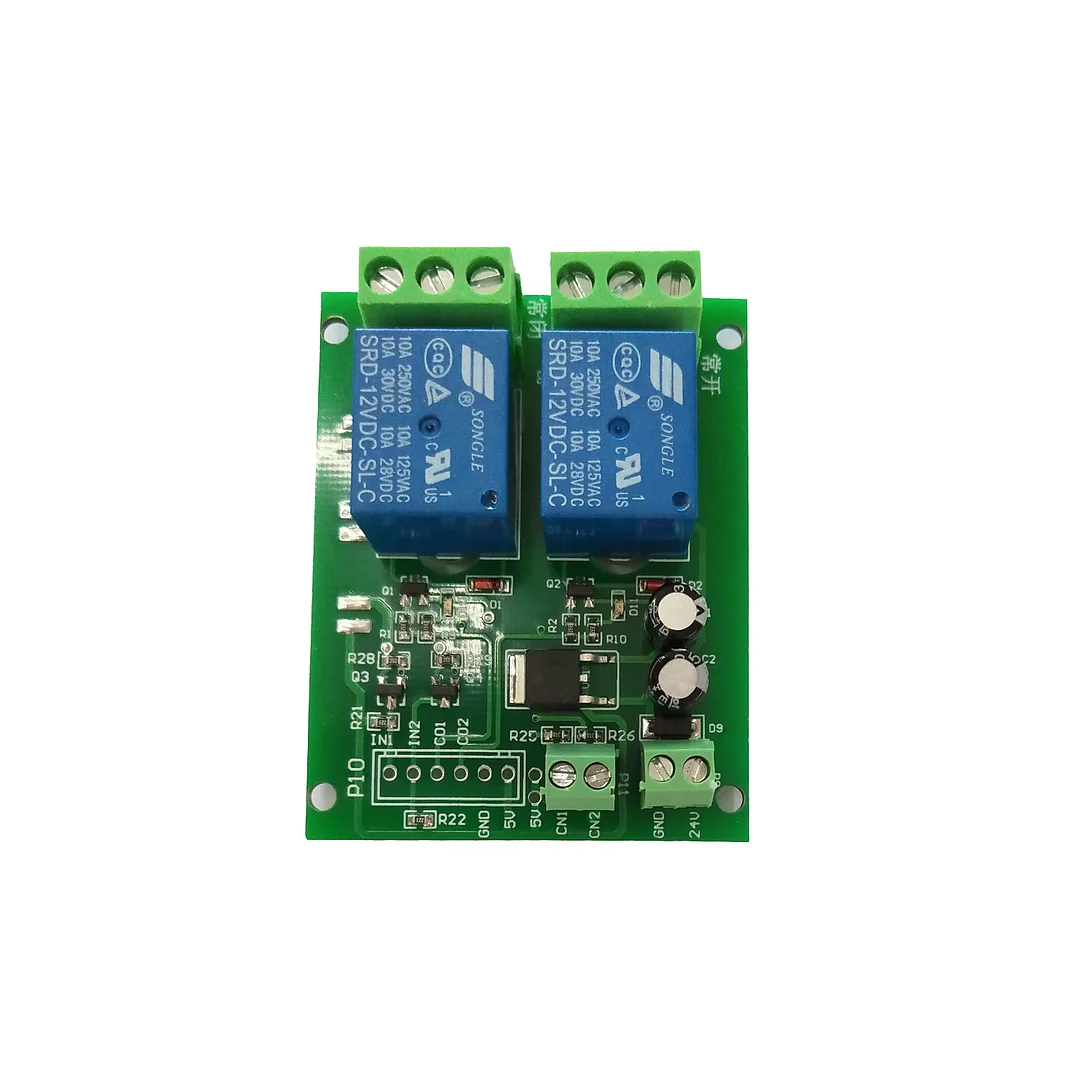

The 2-way relay board has two separate touch buttons, and the two buttons are separated for customers to install at will. There are 12V power supply, 24V power supply and 220V power supply options.
Note
Backlight: white blue, red and green, blue yellow can optional
Function: Interlock, Jog, Self-locking can optional
Power supply: 12V , 24V and 220V can optional
If you need special functions, such as one button self-locking and one button jogging, please contact us
2-way relay board function: The touch panel LED light can be controlled by 6-24V external signal on and off.
Specification
|
Size
|
value
|
|
|
Relay board size
|
50*39*16mm
|
|
|
Touchpad size
|
31*21mm
|
|
|
Touch area
|
24*21mm
|
|
|
The wire between the relay board and the touch board is about 350mm long.
|
||
|
The thickness of the panel is 3-5mm, glass or acrylic can be used. Be careful not to use the panel with metal silk screen, which will interfere with the keys.
|
||
Installation Instructions
Setting
Self-locking function: touch the relay to close, the light is on; touch the relay again to disconnect, the light is off. Jog function: the hand touches the relay to close, and the hand leaves the relay to disconnect, that is, self-resetWhen there is no voltage in the relay coil, the relay does not pick up, and the common terminal is connected to the normally closed terminal; when there is voltage, the relay picks up, and the common terminal is connected to the normally open terminal. When the signal trigger terminal has a high-level trigger, the relay absorbs and is equivalent to the opening and closing sum. At this time, the circuit is connected, and the device will have electricity and will work normally.
