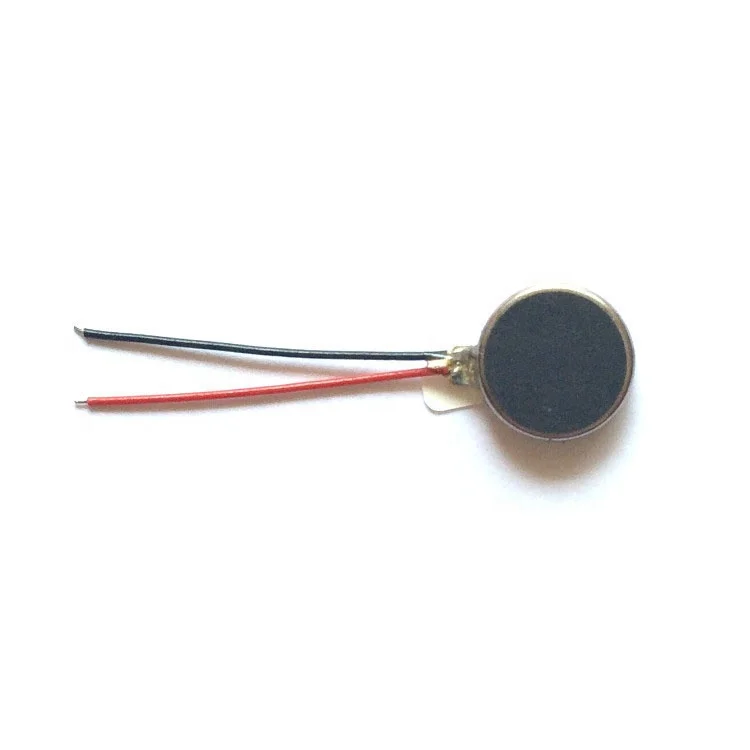

1030 Small Vibrating Rotary Electric Vibrators Electromagnetic Vibration Motor Coin Type Vibration Motor
Product Description
|
Diameter
|
10MM
|
|
Current
|
65-85MA
|
|
Speed
|
8000-12000 rpm
|
|
Starting voltage
|
1.8V
|
|
Rated voltage
|
3.0VDC
|
|
Operating voltage range
|
2.5~4.0VDC
|
|
Direction of rotation
|
any direction
|
|
Work environment
|
-20 ° C ~ +60 ° C
|
|
Storage environment
|
-30 ° C ~ +70 ° C
|
|
Rated speed
|
12000 ± 2500RPM Min
|
|
Rated current
|
70mAMax
|
|
Starting current
|
90mA Max
|
|
Starting voltage
|
2.3VDC Max
|
|
Insulation resistance
|
10MΩMin
|
|
Terminal impedance
|
30Ω±15% (single phase) 60Ω+15% (biphase)
|
