Description

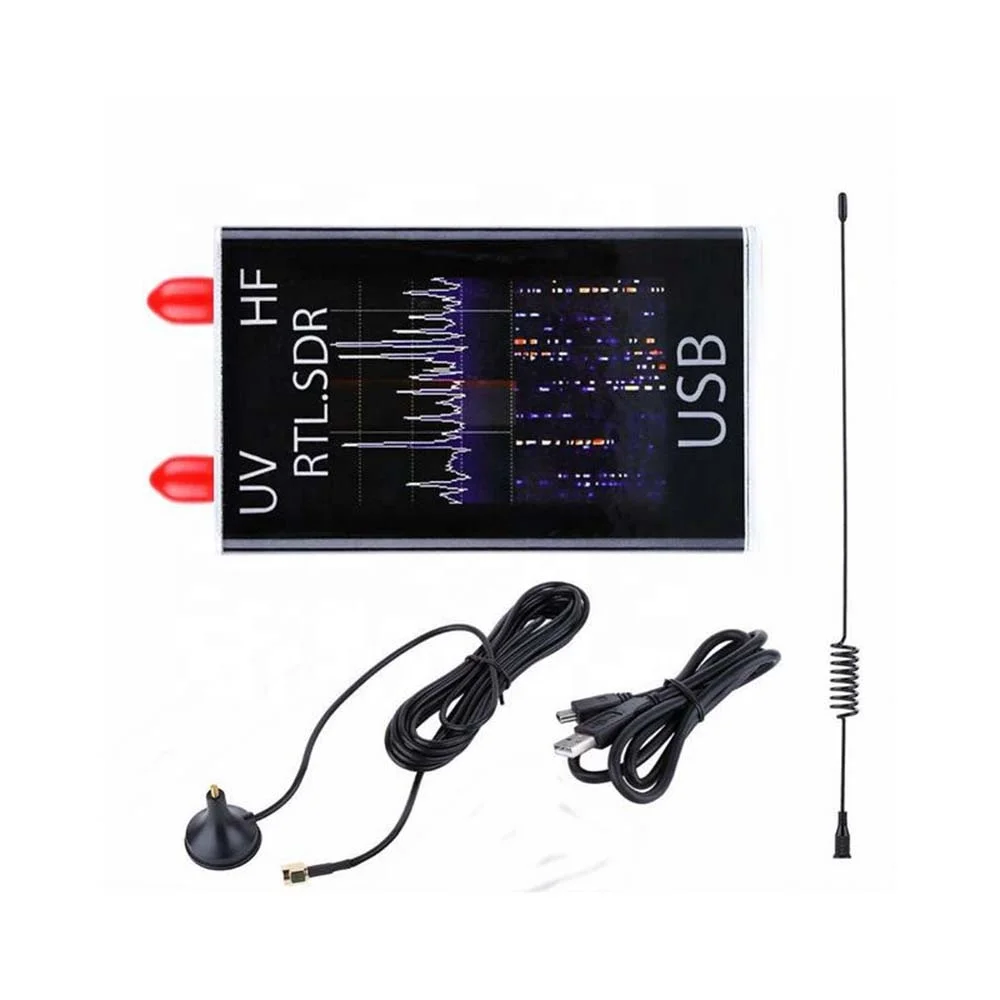

100KHz-1.7GHz SDR HF Radio Receiver Software Radio Full RTL-SDR Receiver SW UHF VHF Broadband SDR Receiver Kit
Product Description
OVERVIEW
100KHz-1.7GHz full-band RTL-SDR receiver can be connected to computers, Android phones and other devices using SDR software to receive 100KHz-1.7GHz electromagnetic waves to support AM, FM (NFM, WFM), CW, DSB, LSB, USB demodulation. Can listen to medium wave, short wave, FM radio, short wave single sideband communication, walkie-talkie call, aviation band and so on. (New detection of mute function: CTCSS, DCS; frequency sweeper, automatic scanning, etc.).
Product advantages
The medium and short wave directly inputs the signal received by the antenna to the digital-to-analog conversion chip, which perfectly solves the problems of signal loss, noise, waveform clutter, frequency offset, etc. caused by using the frequency converter, so that the sensitivity is improved and the waveform display is clear. Perfect, high resolution, showing the actual frequency.
Weight: 150 grams
|
100KHz-1.7GHz full-band frequency
|
||
|
FM radio
|
87MHz-108MHz, choose WFM.
|
|
|
Medium wave broadcast
|
526.5kHz~1606.5kHz, AM.
|
|
|
Shortwave broadcast
|
3MHz~30MHz, AM.
|
|
|
Airport tower frequency
|
118MHz-135.975MHz, AM
|
|
|
Civil walkie-talkie frequency
|
VHF: 136MHz-174MHz The standard is NFM
|
|
|
UHF: 400MHz-470MHz is NFM
|
||
|
Amateur radio communication
|
short-wave single-sideband: commonly used single-sideband LSB below 10MHz; commonly used on single-sideband USB above 10MHz.
|
|
|
Ultrashort wave radio: generally adopts NFM standard, frequency is 50-54MHz, 144-148MHz, 430-440MHz
|
||
Software Defined Radio (SDR) is a new type of radio broadcast communication technology based on software-defined wireless communication protocols rather than hardwired. Bands, air interface protocols, and features can be upgraded through software downloads and updates without having to completely replace the hardware.
We have following two type product, please contact the customer service which you want. Otherwise we default send finished product.
Color finished product
Colored parts
Details Images
