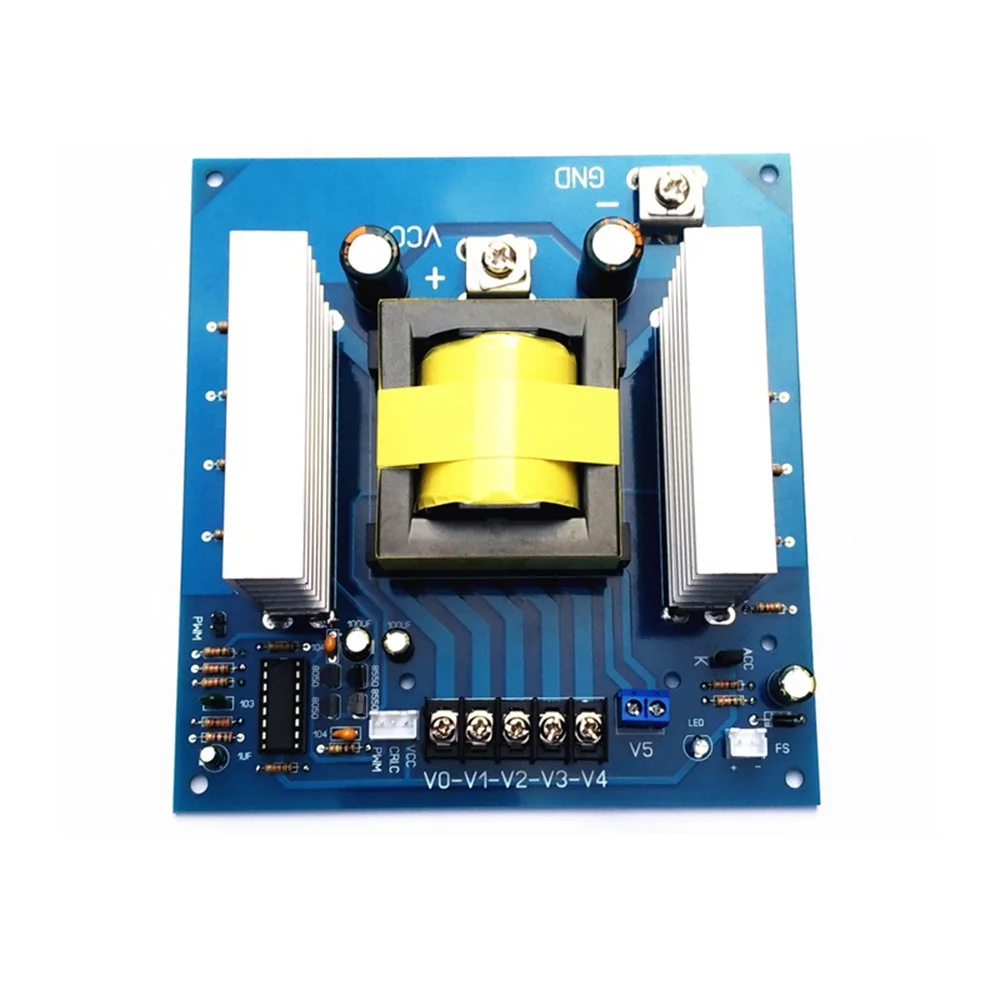

1000W Car Inverter DC12/24V to AC0-220V-380V DC to High Frequency AC Inverter DC to AC Converter PCB Inverter Booster
Product Description
Features:
1. The product is widely used. It has high energy efficiency, long life, low power consumption, convenient and safe use, energy saving and durable. It is a good assistant for outage emergency in the field, night camp, night market vendors and driving families.
2. It can be used as the front step-up inverters of pure sine wave, modified sine wave, single-silicon machine and four-silicon machine. Supply electronic enthusiasts DIY production, maintenance replacement, manufacturer control cabinet supporting products and so on.
3. Can use electrical appliances: lamps, non-inductance household appliances, small electric rice cooker, (note: support all "electronic products") such as "energy saving lamp\\switch power\\bulb\\LED light\\fluorescent light\\DVD\\VCD\\EVD\\TV\\Computer\\Laptop\\etc,and all electronic charger products etc.
4. When using, it should be considered that the power supply should not be continuously in full load for a long time. It is recommended to operate at 80% efficiency if continuous long working conditions are required. Leave room for use to ensure that the power supply can work for a long time, otherwise it may cause early artificial failure.
|
Type
|
High-frequency
|
|
Power
|
1000W
|
|
Input
|
DC 12V/24V
|
|
Output
|
AC 18/50/110/160/200/220/330/380/420V
|
|
Static Current(no load)
|
app.0.35A
|
|
Output frequency waveform
|
app.20KHz
|
Note:
1. This board is a high-frequency square wave AC output, so the general inductive appliances can not bring! ! Such as: motor, electric fan, coil transformer, etc. Another: simple resistance and resistance step-down small appliances, cheap resistance to resist buck LED lamps, etc. may not be used 2. Output high-frequency square wave AC voltage Many general multimeters can't be measured or the display is low or high (is not correct, not the actual voltage) (can be rectified after the multimeter DC measurement) 3. When using, it is necessary to consider that the power supply should not be continuously in full load for a long time. For continuous long-term working conditions, it is recommended to operate at 80% efficiency. Leave room for use to ensure that the power supply can work for a long time, otherwise it will cause early failure.
Special reminder
the load is an electronic product. It is recommended that our high-frequency diodes be rectified into DC output in this board output. Because many switching power supplies are used in the rectification part of the electrician to save cost, it is used in the ordinary rectifier. The AC output will cause the rectifier diode of the original appliance to be rapidly heated and damaged, and the diode will break down. Eventually the inverter board burned out.
Details Images
