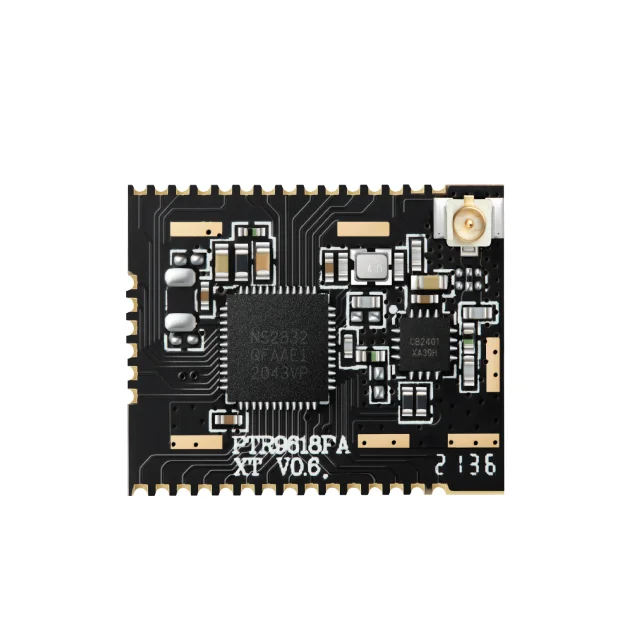

The ultra-low power Bluetooth Low Energy/ANT/2.4GHz Propretary Multi-protocol modules based on the nRF52832 from Nordic
Semiconductor. The module with an ARM® Cortex TM M4F 32 bit processor, embedded 2.4GHz transceiver, and faster time to market,
while simplifying designs, reducing BOM costs, also reduce the burden of regulatory approvals to enter the world market. making
you more quickly into the bluetooth smart application and remove the worries.
Description
Product Description
Product Feature
|
Chipset
|
Nordic nRF52832
|
|
Dimension
|
22.7*17.5*1.8mm
|
|
Frequency
|
2.360GHz to 2.500GHZ
|
|
Antenna
|
PCB Antenna
|
|
Operating Temperature
|
-25~+85°C
|
|
Power Supply
|
2.7~3.6V
|
|
Transmit Power
|
+20 dBm
|
|
Receiver Sensitivity
|
-96dBm(BLE mode)
|
|
Protocol
|
BLE 5.0/ 2.4GHz/ Mesh/ANT
|
|
TX
|
100mA
|
|
RX
|
11.7 mA
|
|
Flash/RAM
|
512KB/64KB
|
|
GPIO
|
31
|
* System on Module(SOM) base on Nordic nRF52832
* Bluetooth Low Energy/ANT/2.4GHz Proprietary Multi-protocol support
* Max +20dBm @ setting nRF52832 0dBm output
* Complete Bluetooth Low Energy stack/profiles solution (Bluetooth 4.x and Higher)
* 31 General Purpose I/O ,Configurable mapping Pins ,Simple layout of external application
* ARM Cortex M4F 32 bit processor,512kB flash memory ,64kB RAM
* 12-bit/200KSPS ADC ,PWM ,SPI Master/Slave(8Mbps)
* Two 2-wire Master/Slave (I2 Compatible)
* I2S audio interface ,PDM audio interface
* UART(w/CTS/RTS and DMA)
* 3×4 – channel PWMs
* 20 channel CPU independent Programmable Peripheral Interconnect(PPI)
* Quadrature Demodulator(QDEC)
* 128-bit AES HW encryption
* 5×32bit Timer, 3×24bit Real Timer Counters(RTC), Watchdog Timer
* Internal RC Oscillator 32.768kHz(±250ppm)
* Over-the-Air(OTA) firmware updates available
Pin Images
Typical Applications
|
1
|
2.4 GHz Bluetooth low energy systems
|
|
2
|
Proprietary 2.4 GHz systems
|
|
3
|
Sports and leisure equipment
|
|
4
|
Mobile phone accessories
|
|
5
|
Health Care and Medica
|
|
6
|
Consumer Electronics, Game pads
|
|
7
|
Human Interface Devices, Remote control
|
|
8
|
Building environment control / monitoring
|
|
9
|
ibeacon/beacons
|
