Description

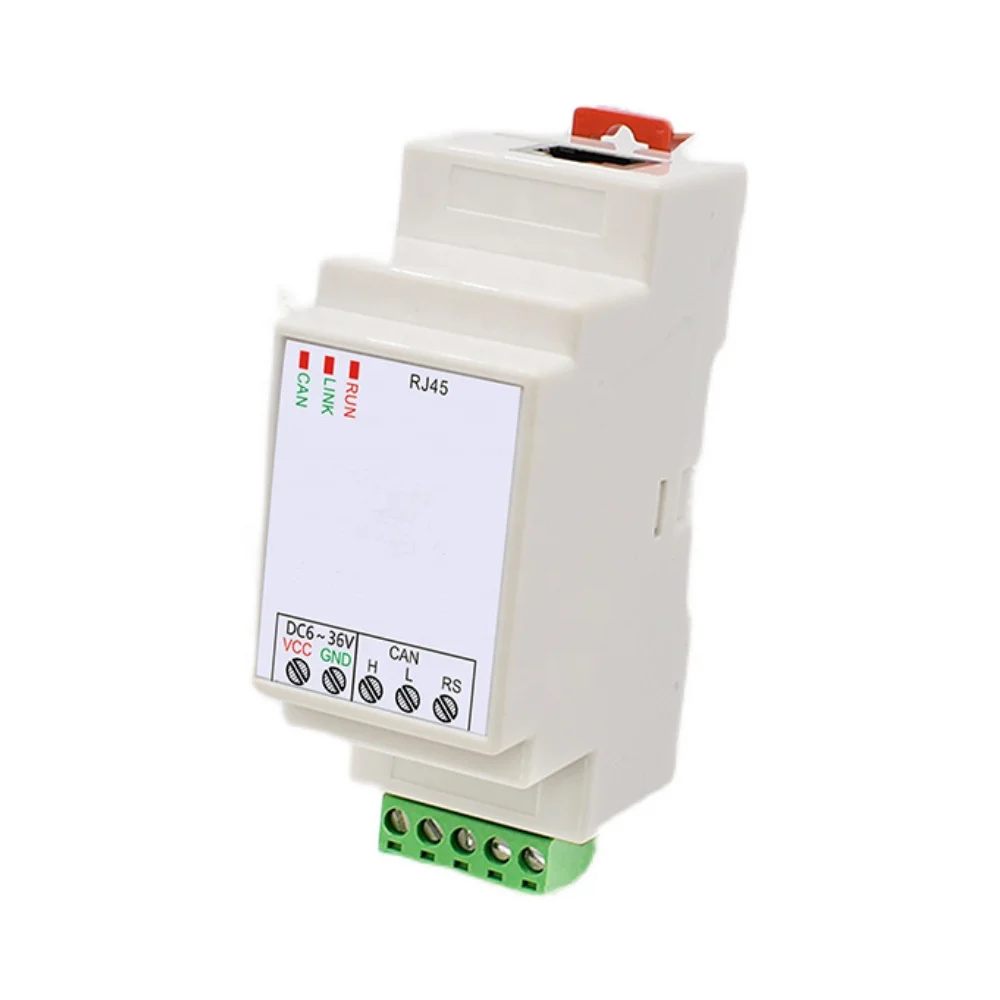

1-Way CANbus to UDP Adapter CAN to LAN TCP IP Gateway Ethernet to CAN Converter Isolated CAN Bus to Ethernet Converter
Product Description
1. Support static and dynamic IP; 2. Support automatic switching of network cable crossover and direct connection 3. Working port, target IP and target port can be set; · TCP server mode, support 4 client connections; · Support DNS function; 4. Support network online firmware upgrade function; 5. It can cross gateways, switches, routers; it can work on a local area network or the Internet; 6. Supported protocols include ETHERNET, ARP, IP, ICMP, UDP, DHCP, TCP; 7. Support webpage parameter configuration function; 8. Interface electrostatic protection; surge protection; excellent EMC performance; 14 groups of filters that can be set; 9. With offline detection and automatic recovery function; 10. Compliant with CAN 2.0B specification, compatible with CAN 2.0A; Compliant with IS0 11898-1/2/3. Baud rate supports 10kbps~1000kbps. 11. Both CAN and network can buffer 2000 frames of CAN data to ensure that data is not lost; High-speed conversion, CAN conversion speed can reach more than 8000 extended frames per second at 1000kbps baud rate.
Specification
|
item
|
value
|
|
Power supply
|
DC 6 to 36V
|
|
CPU
|
32-bit high-performance processor
|
|
Ethernet interface
|
10M/100M, 2KV Isolated
|
|
CAN Interface
|
surge protection; excellent EMC performance;
|
|
Indicator
|
Onboard POWR, RUN, NET, CAN indicator
|
|
Industrial grade protection
|
IEC 61000-4-5 Surge: Power: ±2 kV; Signal: ±2 kV
IEC 61000-4-2 ESD: Contact: ±8 kV; Air: ±15kVI
EC 61000-4-2 EFT: Power: ±4kV; Signal: ±2 kV
|
|
Working temperature
|
-40C to 85C
|
