1 Channel Tuya Smart Wifi Motor Switch Module USB 5V 7-32V AC85V-250V RF433 Radio Remote Control Inching Relay

Use for

1.Remotely give a pulse signal to turn on/off Lights,Lamps.PC and other home appliance.
2.Remotely give a pulse signal to turn on/off Garage Door,Door Access
3.Remotely give a pulse signal to control DC Motor,AC Motor to Forward and Reverse

HIGHLIGHT

[ APP Control ]

Just tap on tuya smart life App to turn on a light anytime and anywhere. A lighted house anticipates your arrival

[ Timer & Schedule ]

Set up timing schedules to save the trouble of overcooking the dish

[ Hands-free Voice Control ]

Compatible with Alexa & Google Home, the smart switch allows you to control lights on/off with your voice

[ Share Control ]

Share control of your home appliances to your family or friends so that they can also control the devices remotely

[ RF Function ]

Choose the wifi switch with RF function, you can have three control methods. Remote control, mobile phone control, voice control

[ Universal DIY ]

Compatible with any household appliances (DC AC7-32V 10A 2200W )The small module has DIY capability for users with basic electrician knowledge

[ Simple Operation ]

Directly connect to the app after installation, use the same LAN, and control by Tuya APP

What can I use it for?

*Connect a light, remotely control the switch of the light.Connect a light, remotely control the switch of the light, and can also switch on and off regularly
19:00 On 21:00 Off
*Open your curtains regularly 7:00
*Change the water for the fish tank regularly
*Use mobile phone or voice control Garage door switch
*Control your heater remotely
*And your coffee machine
*Connect a water pump, remote control or timer switch
More functions waiting for you to discover. DIY

Features:

Input voltage : DC/AC 7-32V , Micro USB 5V input.
Max current : 2200W/10A.
WiFi standard : WiFi 2.4 ghz b/n/g.

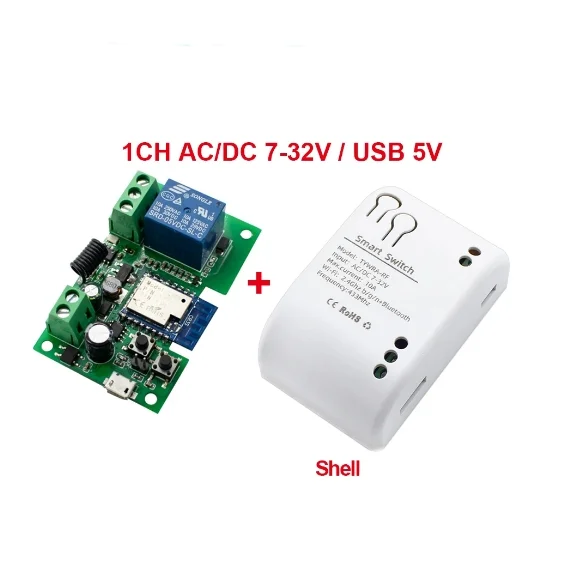

Size : 1CH 69*41*20mm
The life of Relay Model is more than 1,000,00.
Default inching Function: Press the open relay by mobile phone, then cut off the pull-on imediately, you can set the inching time in APP , it has the timing-share function at the same time.
Self-locking when press the inching and locking button with the light on. Press open relay to pull-on, press close relay to cut off.

Noted :

Your have the correct wifi password.
Your smart phone or tablet must have access to APP store or google play.
Your router is MAC-open.
Your smart phone or tablet has connected to a 2.4g wifi with internet.
Default inching time 0.5s , you can set inching time from 1s to 3600s in APP ( smart life / tuya smart).

APP Control From Anywhere

You can rermote control smart device via mobile phone APP antytime and anywhere.
