Description
1.5A XKT-412 Wireless Charging IC Wireless Power Supply Chip USB Power Supply Management IC for Battery PD Charging
Product Description
XKT-412 is the latest high-frequency and high-power integrated circuit developed by Core Ketai. It has small output power and can work.
The use in the higher frequency range can greatly reduce the size and size of the transmitting coil to enhance the transmission power and reduce the coil cost. Due to the small inductance requirement of the coil, the PCB can be directly used as the transmission to make the production application easier: the chip adopts the most advanced width. Voltage adaptive technology chip design process, the same transmitting circuit can be used in any working range without changing any device. The circuit is extremely simple, with high precision and good stability. It is specially used for wireless induction intelligent charging. In the power management system, the reliability is high. XKT412 is responsible for processing the radio energy transmission function XKT.412 in this system. It adopts the principle of electromagnetic energy conversion and cooperates with the receiving part to do energy conversion and real-time monitoring of the circuit. It is responsible for the intelligent control of fast charging of various batteries. XKT412 only needs very little cooperation. The external components can be made into a highly reliable wireless fast charger and wireless power supply.
The use in the higher frequency range can greatly reduce the size and size of the transmitting coil to enhance the transmission power and reduce the coil cost. Due to the small inductance requirement of the coil, the PCB can be directly used as the transmission to make the production application easier: the chip adopts the most advanced width. Voltage adaptive technology chip design process, the same transmitting circuit can be used in any working range without changing any device. The circuit is extremely simple, with high precision and good stability. It is specially used for wireless induction intelligent charging. In the power management system, the reliability is high. XKT412 is responsible for processing the radio energy transmission function XKT.412 in this system. It adopts the principle of electromagnetic energy conversion and cooperates with the receiving part to do energy conversion and real-time monitoring of the circuit. It is responsible for the intelligent control of fast charging of various batteries. XKT412 only needs very little cooperation. The external components can be made into a highly reliable wireless fast charger and wireless power supply.
|
Characteristics
|
||
|
1
|
Automatically adapt to the power supply voltage adjustment function So that it can work under a wider voltage
|
|
|
2
|
Auto frequency lock
|
|
|
3
|
Automatic negative load detection
|
|
|
4
|
Automatic power control
|
|
|
5
|
Intelligent detection system, free of debugging
|
|
|
6
|
Working voltage: DC 5 ~ 12V
|
|
|
7
|
Working frequency: 0 ~ 2MHZ
|
|
|
8
|
Integrated, several common peripheral components are required
|
|
Application
Battery charging, wireless direct power supply for medical products, robot wireless power supply, security products, waterproof products, toy products, adult products, digital products, MP3, MP4, mobile phones, handheld household appliances, etc.

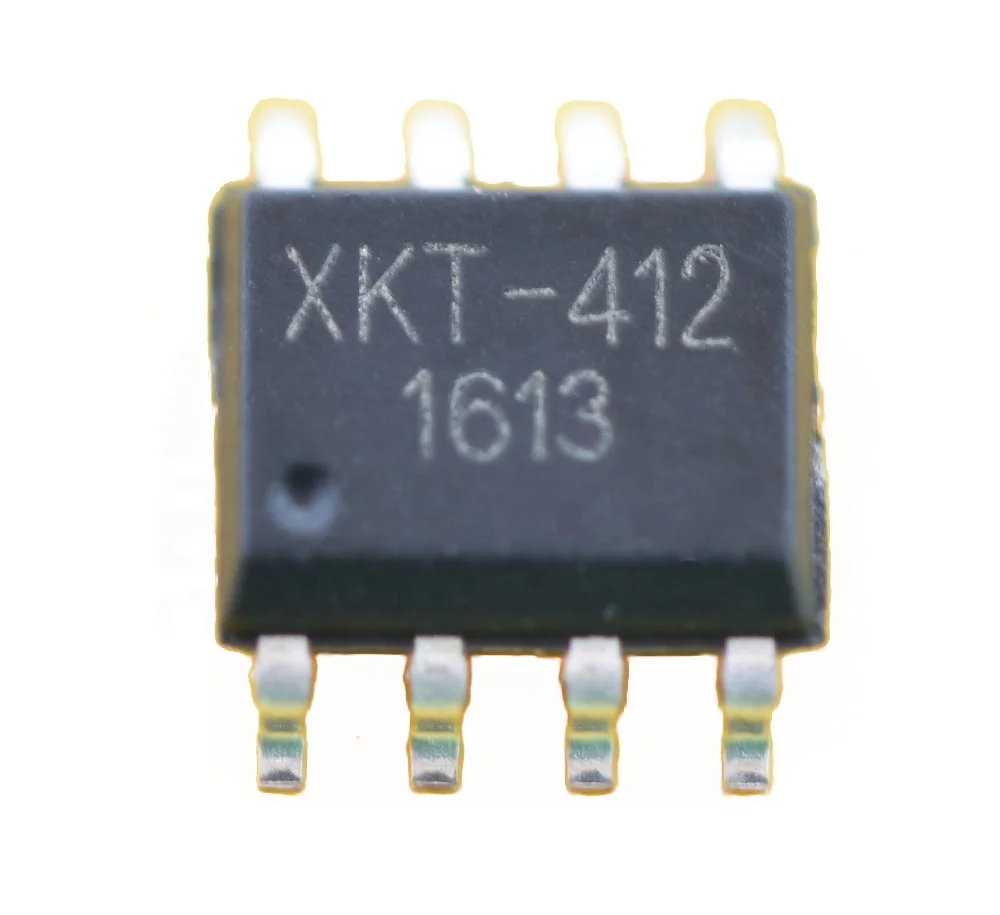

Details Images
