Description

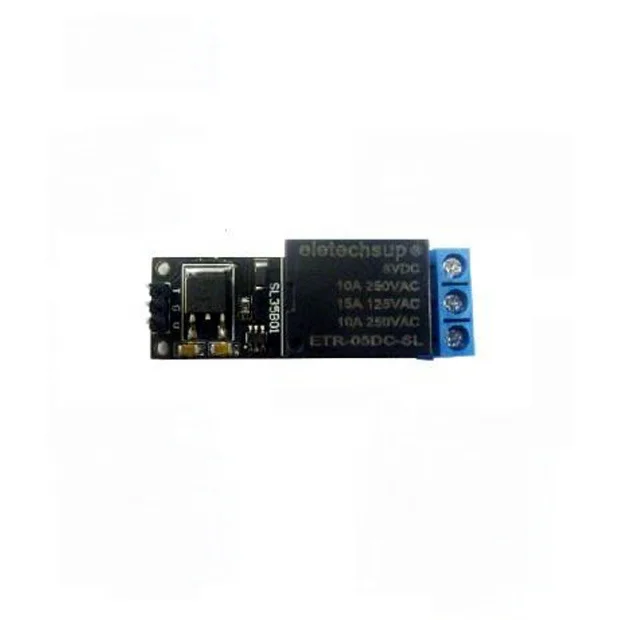

1-4 channel 5V 12V Flip Flop Relay Switch Self-locking Bistable Relay Toggle Flip Flop MCU Low Voltage Control Relay
Product Description
This is a self-locking (bistable) relay module. When triggered once, the relay is closed (and held), and triggered again, the relay is disconnected.
|
Pin description
|
||
|
V
|
positive power supply
|
|
|
G
|
The negative pole of the power supply and the ground terminal of the trigger signal;
|
|
|
T
|
(T1/T2/T3/T4): Trigger signal input (0.2-2 second low pulse).
|
|
|
NO
|
Relay normally open port
|
|
|
COM
|
Relay common port
|
|
|
NC
|
Relay normally closed port
|
|
Instructions
When power is applied, the relay is disconnected. Click the trigger port (T1/T2/T3/T4 port) the relay to pull in (and hold), click the relay again to disconnect, and so on.
Product Paramenters
1 channel 5V self-locking (bistable) relay: Working voltage: DC 5V Working current: 60-70MA Static working current: 0.1mA Relay load current: AC 250V/10A, DC 30V/10A Trigger mode: low level trigger Size: 35mm * 16mm * 18.5mm Weight: 12.5g 1 channel 12V self-locking (bistable) relay: Working voltage: DC 6-24V (DC 9V 12V recommended) Working current: 60-70MA Static working current: 0.12mA Relay load current: AC 250V/10A, DC 30V/10A Trigger mode: low level trigger Size: 48mm * 16mm * 18.5mm Weight: 14g 2 channel 5V self-locking (bistable) relay: Working voltage: DC 5V Working current: 1 relay pulls 70MA, 2 relays pulls 140MA Static working current: 0.2mA Relay load current: AC 250V/10A, DC 30V/10A Trigger mode: low level trigger Size: 36mm * 32.3mm * 18.5mm Weight: 24.5g 2-channel 12V self-locking (bistable) relay: Working voltage: DC 6-24V (DC 9V 12V recommended) Working current: 1 relay pulls 70MA, 2 relays pulls 140MA Static working current: 0.24mA Relay load current: AC 250V/10A, DC 30V/10A Trigger mode: low level trigger Size: 48mm * 32.3mm * 18.5mm Weight: 27.6g 4 channels 5V self-locking (bistable) relay: Working voltage: DC 5V Working current: 1 relay pulls in 70MA, 2 relays pull in 140MA, 3 relays pull in 210MA, 4 relays pull in 280MA Static working current: 0.4mA Relay load current: AC 250V/10A, DC 30V/10A Trigger mode: low level trigger Size: 65mm * 42mm * 18.5mm Weight: 52.4g
4 channels 12V self-locking (bistable) relay (version 6): Working voltage: DC 6-24V (recommended DC 9V 12V 24V) Working current: 1 relay pulls in 37MA, 2 relays pull in 73MA, 3 relays pull in 110MA, 4 relays pull in 146MA Static working current: 2mA Relay load current: AC 250V/10A, DC 30V/10A Trigger mode: low level trigger Size: 65mm * 47mm * 18.5mm Weight: 56.8g
Note
Please contact the customer service for the channel and voltage. Otherwise we default sent at random.
